Eaton M22-PVT-K02 M22 Modular Pushbutton 2NC

Product Description

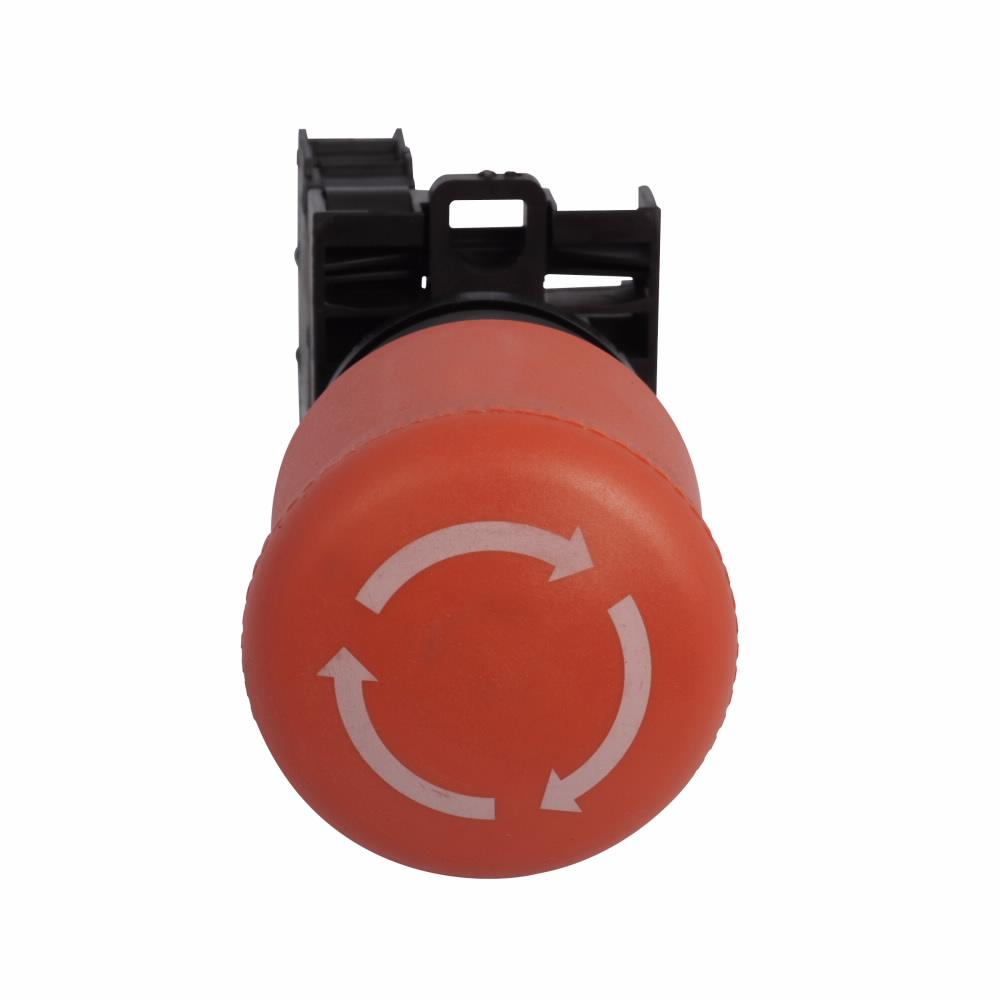

The Eaton M22-PVT-K02 is an Eaton M22 modular pushbutton with an E-stop twist-release and 2NC contacts. This 22.5 mm pushbutton is designed for global machine control applications. It features positively driven contact blocks and a maintained actuator function. The M22 line offers flexibility and high-quality construction.

• Positively driven contact blocks
• Modular construction makes assembly fast and simplifies stocking of components and complete devices
• IP67, IP69K, NEMA 4X, NEMA 13 environmental ratings

Product Highlights

The Eaton M22 series is ideal for OEMs, end-users, and system integrators who value front panel aesthetics, maximum flexibility, and high-quality construction.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: M22-PVT-K02
• Country of Origin: China

Technical Specifications

• Type: Emergency Stop
• Bezel: Silver
• Actuator function: Maintained
• Button color: Red
• Actuator: Knob, twist-to-release
• Contact configuration: 2NC
• Illumination: Non-illuminated
• Series: M22
• Environmental rating: IP67, IP69K, NEMA 4X, NEMA 13
• Size: 22.5 mm
• Product Name: Eaton M22 modular pushbutton
• Catalog Number: M22-PVT-K02
• UPC: 786685271934
• Product Length/Depth: 2 in
• Product Height: 0.5 in
• Product Width: 2 in
• Product Type: Modular pushbutton
• UNSPSC Code: 41110000
• Action: Maintained
• Actuator Color: Red
• Actuator Type: E-Stop Button
• Brand: Eaton - Cutler Hammer
• Current Rating: 6 A
• Head Size: 35 mm
• Legend: No Legend
• Manufacturer Part Number: M22-PVT-K02
• Mounting Hole Size: 22.5 mm
• Operation: Twist-to-Release
• Reset Type: Push Lock - Twist Reset
• Special Features: NEMA 4X, 13
• Termination: Screw clamp
• Voltage Rating: 500 V
• Enclosure Type: NEMA 4X/13/IP67/IP69K
• Operator Type: Twist-Release Knob
• Contact Mode: Maintained
