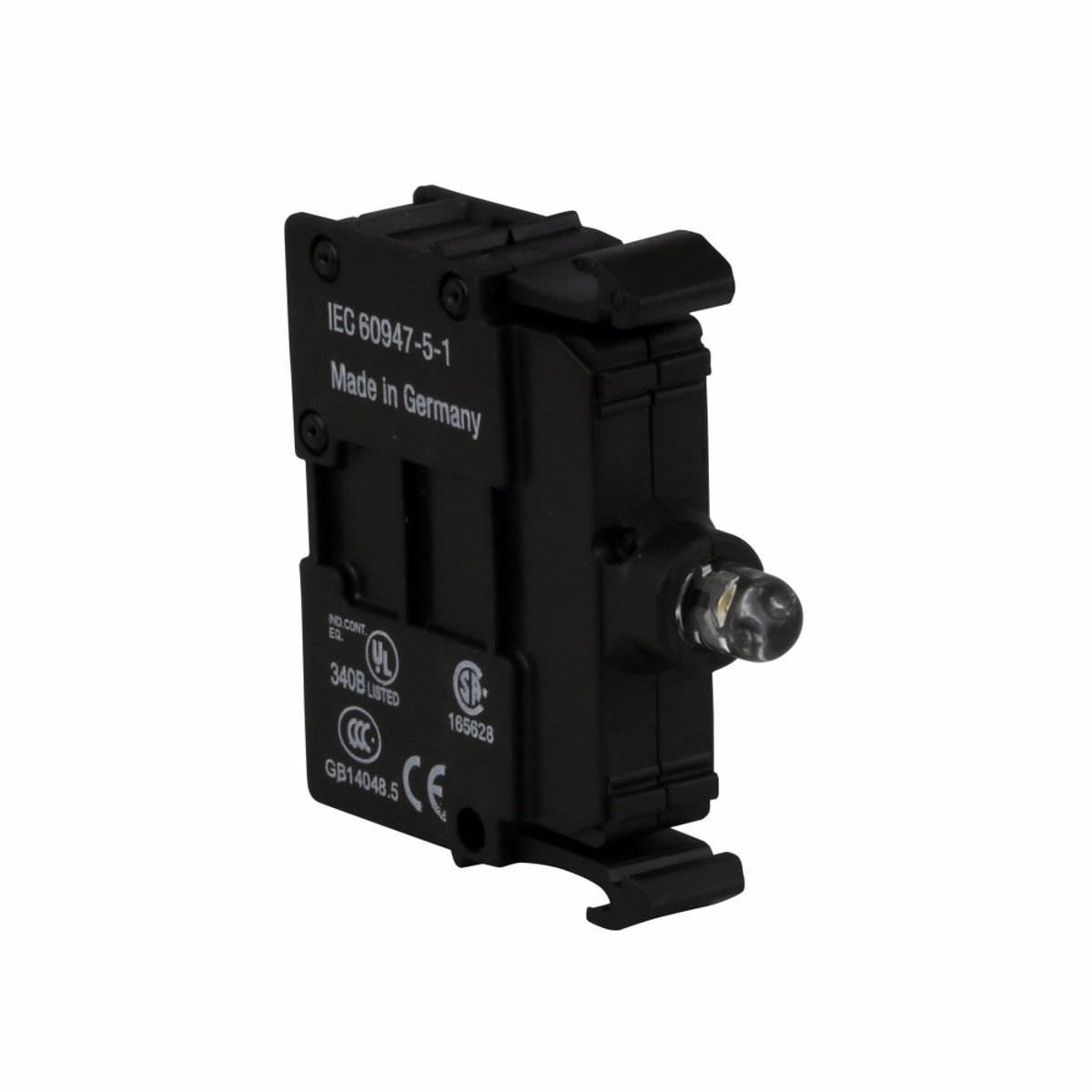

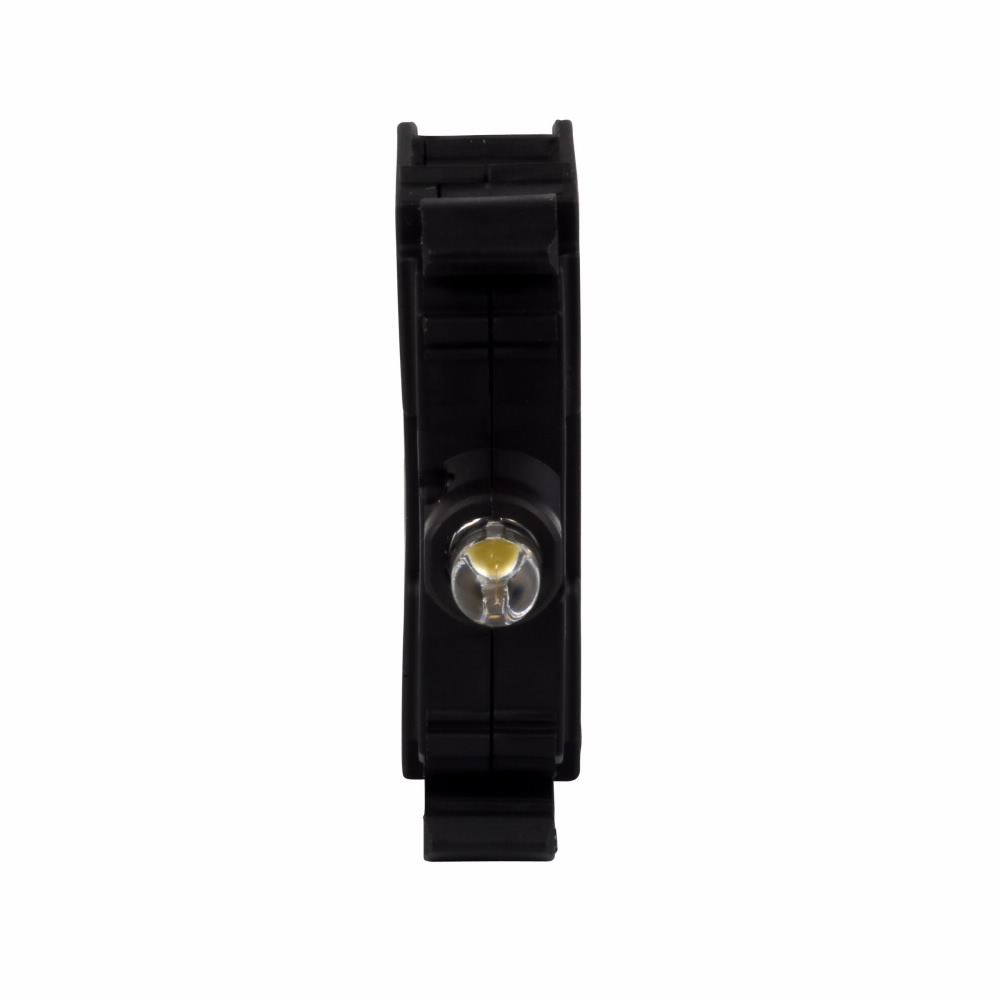

Eaton M22-LED230-W LED Light Unit 85 to 264VAC 22.5 mm

Product Description

The Eaton M22-LED230-W is a modular pushbutton LED light unit designed for versatile applications. It operates between eighty-five and two hundred sixty-four volts and features a screw terminal for easy mounting. This LED light unit is part of the M22 series, known for its compact design and reliability.

• Voltage range: eighty-five to two hundred sixty-four volts
• Rated operational current: five to fifteen milliamps
• Dimensions: one point four six inches length, one point one eight inches width, one point zero three inches height

Product Highlights

The Eaton M22-LED230-W is suitable for electrical assemblies and panels, providing an efficient lighting solution with a lifespan of up to one hundred thousand hours.

Product Information

Standard Information

• Catalog Number: M22-LED230-W
• Brand: Eaton

Technical Specifications

• Item Type: Modular pushbutton
• Lamp Type: LED
• Mounting Type: Screw
• Enclosure Type: IP66, NEMA 4X
• Country of Origin: Germany
• Weight: 0.1 lb
• Color: White
• GTIN: 00786685277608
• Standard Approvals: CCC Marked, CSA Certified, CE Marked
