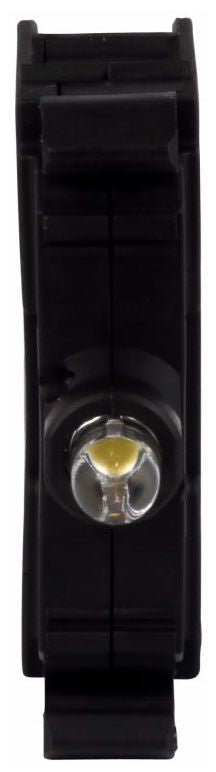

Eaton M22-LED230-W Led Indicator 230V White Pushbutton

Product Description

The EATON M22-LED230-W is a 230-volt LED indicator element designed for use with M22 series pushbutton and pilot light assemblies. This component provides a clear white illuminated signal in control panel applications, serving as a visual status indicator for machinery, equipment, or process control systems. The LED element is intended for panel-mount configurations and is installed by electricians and control panel builders working with industrial or commercial control circuits. Its low-power LED design reduces heat output compared to incandescent alternatives while maintaining reliable visibility at the panel face.

This indicator element fits within the M22 modular pushbutton system and is suited for industrial control panels, machine tool stations, and process automation enclosures. It is appropriate for both new panel builds and retrofit or replacement work where an existing M22 series indicator element requires substitution. Installation is typically performed in commercial or industrial settings where 230-volt control circuits are in use.

Key Features

• 230-volt AC rated LED element for M22 series assemblies
• White illumination for clear visual status indication
• Low-power LED construction reduces heat generation
• Modular design integrates with M22 pushbutton and pilot light hardware
• Panel-mount configuration suitable for industrial control enclosures

Compatibility

Designed as an OEM-style replacement or new-build component for use within the EATON M22 modular pushbutton and pilot light system.

Installation Notes

Installation should be performed by a qualified electrician in accordance with applicable NEC requirements. De-energize and lock out the control panel before installing or replacing indicator elements. Verify that the circuit voltage matches the 230-volt rating of this element before energizing. Follow the M22 series assembly instructions for proper element seating and securing within the operator body.

Technical Specifications

• Voltage Rating: 230 volts
• Illumination Color: White
• Lamp Type: LED
• Series: M22
• Mounting Type: Panel Mount
• Weight: 0.1 pounds

Standard Information

• Brand: EATON
• Manufacturer Part Number: M22-LED230-W
