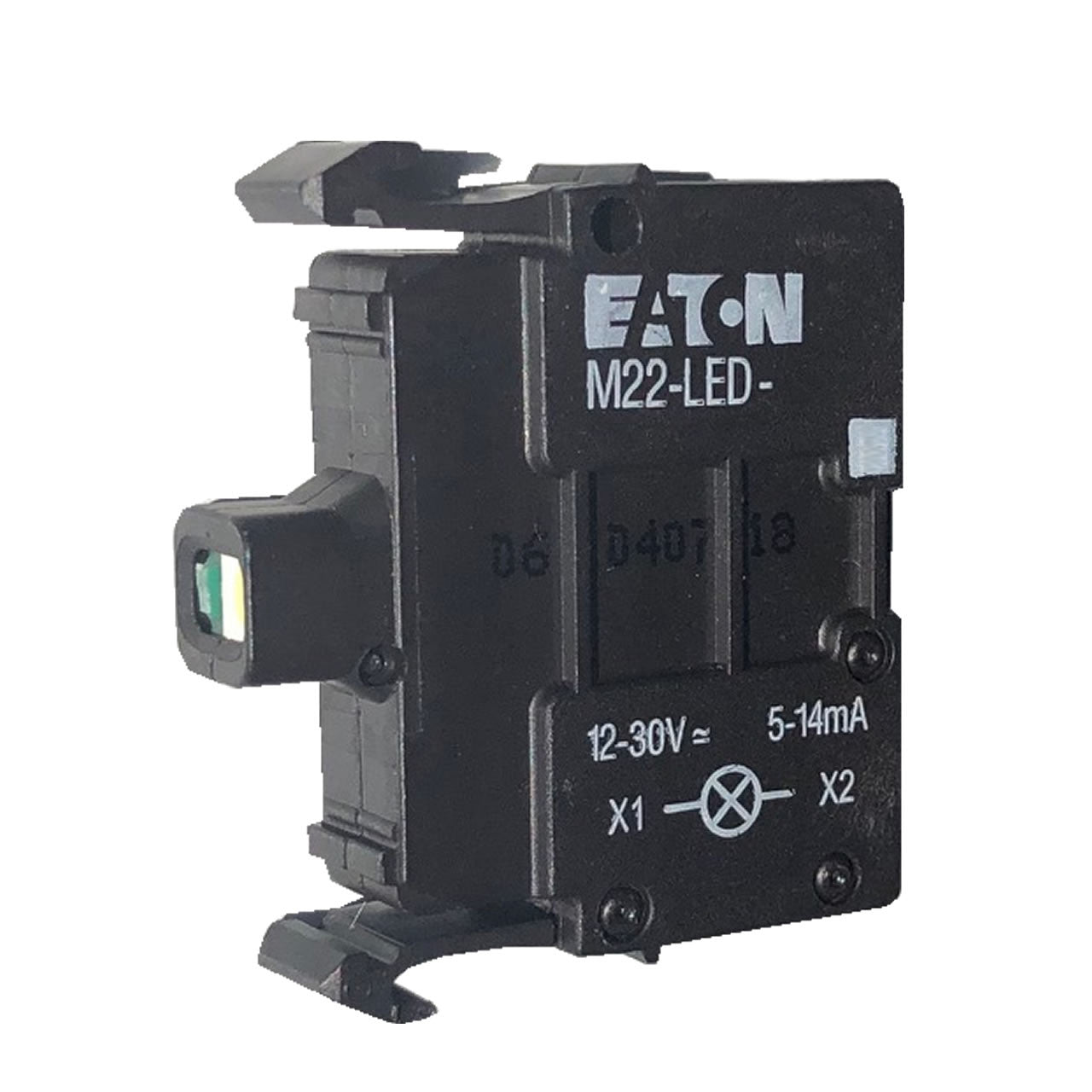

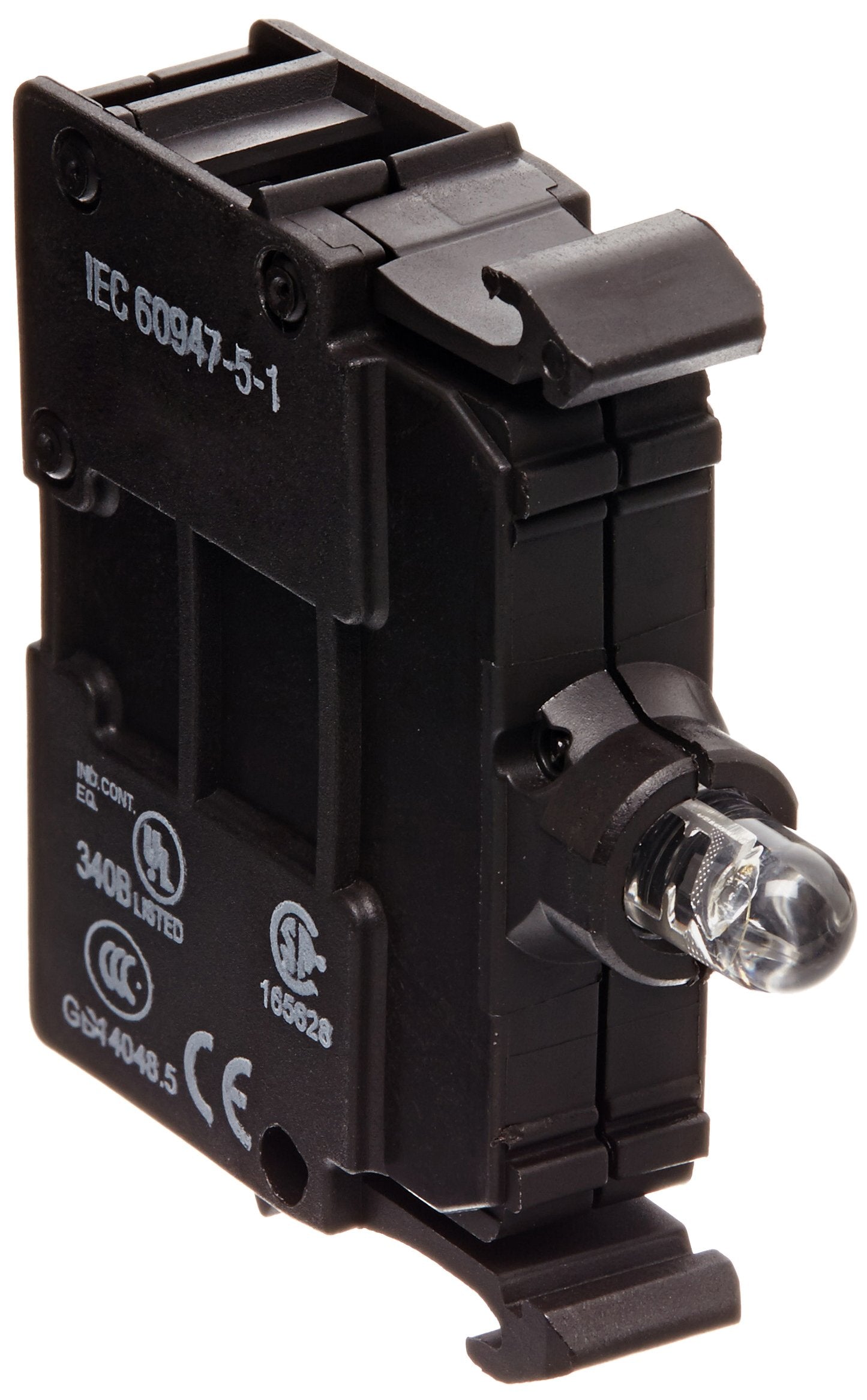

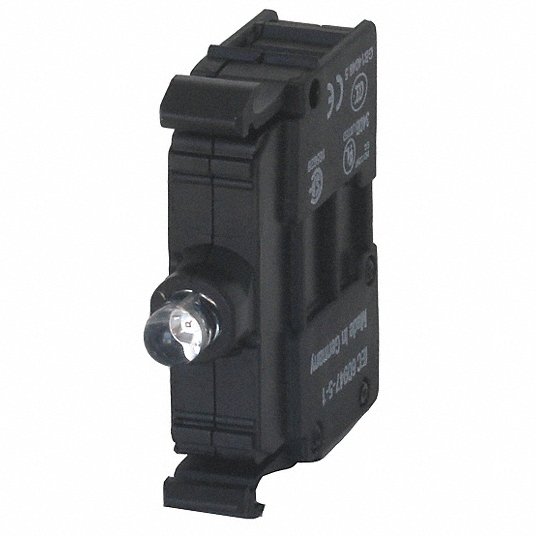

Eaton M22-LED-R LED Light Unit 12-30VAC/VDC

Product Description

The EATON M22-LED-R is an LED light unit with a voltage of 12-30VAC/VDC. It is designed for front mounting and has UL and CSA approvals. The modular construction enables quick installation. It is suitable for use with M22 illuminated pilot devices, such as M22-DL and M22-DRL pushbuttons, M22-L pilot lights and M22-WL and M22-WRL selector switches.

• Quick installation with modular construction
• Mounting base included with operators
• Notched hole mounting with anti-rotation tab

Product Highlights

The M22-LED-R LED light unit offers high-quality brightness and up to 100,000 hours of LED illumination.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: M22-LED-R
• Country of Origin: Dominican Republic

Technical Specifications

• Lamp Type: Red LED
• Size: 22.5 millimeter
• Approval: UL, CSA
• Mounting: Front
• Lamp Input Type: 12 to 30 Volt AC/DC at 50/60 Hertz
• Current Rating: 8 to 15 Milliamp
• Terminal Type: Screw
• Enclosure Rating: IP20
• Model: M22
• Product Name: Eaton M22 modular pushbutton
• Catalog Number: M22-LED-R
• UPC: 786685277578
• Product Length/Depth: 2 in
• Product Height: 1 in
• Product Width: 2 in
• Compliances: CE Marked Bureau Veritas GoST-R
• Certifications: CCC Marked CSA Certified Lloyd's Register Certified
• Product Type: Modular pushbutton
• Type: Light Unit
• Environmental rating: IP66, NEMA 4X, 13, Rk resistance 4.7
• Voltage rating: 12-30 Vac/dc
• Illumination: Illuminated
• Series: M22
• Actuator: Screw
• LED Color: Red
• Mounting Hole Size: 22.5 mm
• Mounting Orientation: Front
• Operating Voltage: 12 to 30 V
• Termination: Spring
• Voltage Rating: 12 to 30 V AC/DC
• Compatible with Series: M22
• Bulb Color: Red
• Compatible Operator: Push Button
• IP Rating: IP65; IP66; IP67; IP69K
• Includes Bulb: Bulb Included
• Lamp Bulb Type: LED
• Lamp Module Type: Full
• Overall Depth: 2 in
• Overall Height: 1 in
• Overall Width: 2 in
• Panel Mounting Hole Diameter: 22 mm
• Standards: CCC; CE; CSA; IEC 60947; Lloyd's Register
• Terminal Connection Type: Screw Terminals
