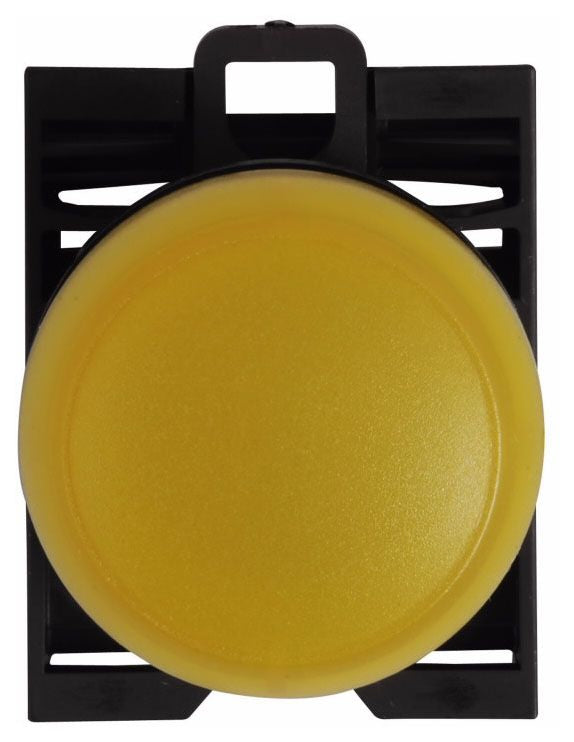

Eaton M22-L-Y Flush Type Pilot Light Lens 22.5mm

Product Description

The EATON M22-L-Y is a flush-type pilot light lens designed for use with 22.5mm modular control panel components. This yellow lens fits into the M22 series indicator light body, diffusing illumination from the lamp element beneath it. It is a front-panel-mount component used in industrial and commercial control panels, motor control centers, and machine operator interfaces. Electricians and panel builders install this lens as part of a complete M22 series indicator assembly. The flush-mount profile keeps the lens face flush with the panel surface, reducing the risk of accidental contact or damage in demanding service environments.

This lens is used in 22.5mm cutout control panels across light industrial, commercial, and OEM machine-build applications. It is suited for operator status indication on motor starters, conveyor controls, pump panels, and similar low-voltage control circuits. The yellow color is commonly used to indicate caution, standby, or intermediate machine states per panel wiring conventions. It is part of the EATON M22 modular pushbutton and indicator system, which uses stackable components assembled to a common base.

Key Features

• Flush-mount lens profile for standard 22.5mm panel cutouts
• Yellow lens color for caution or status indication
• Part of the EATON M22 modular indicator and pushbutton system
• Compact footprint: 2 inches x 2 inches x 1 inch overall package dimensions
• Lightweight construction at 0.1 pounds

Compatibility

Designed as an OEM-style component for use with EATON M22 series 22.5mm modular indicator and pilot light assemblies in standard control panel applications.

Installation Notes

Installation is performed by a qualified electrician or panel builder during control panel assembly or field service. De-energize and lock out the control panel circuit before disassembling any indicator components. The lens snaps or threads into the M22 series indicator body per the assembly sequence for that base unit. Follow applicable NEC requirements for control panel wiring and enclosure ratings.

Technical Specifications

• Mount Type: Flush
• Panel Cutout Size: 22.5mm
• Lens Color: Yellow
• Package Dimensions (L x W x H): 2 inches x 2 inches x 1 inch
• Weight: 0.1 pounds
• UPC: 78668527865

Standard Information

• Brand: EATON
• Manufacturer Part Number: M22-L-Y
