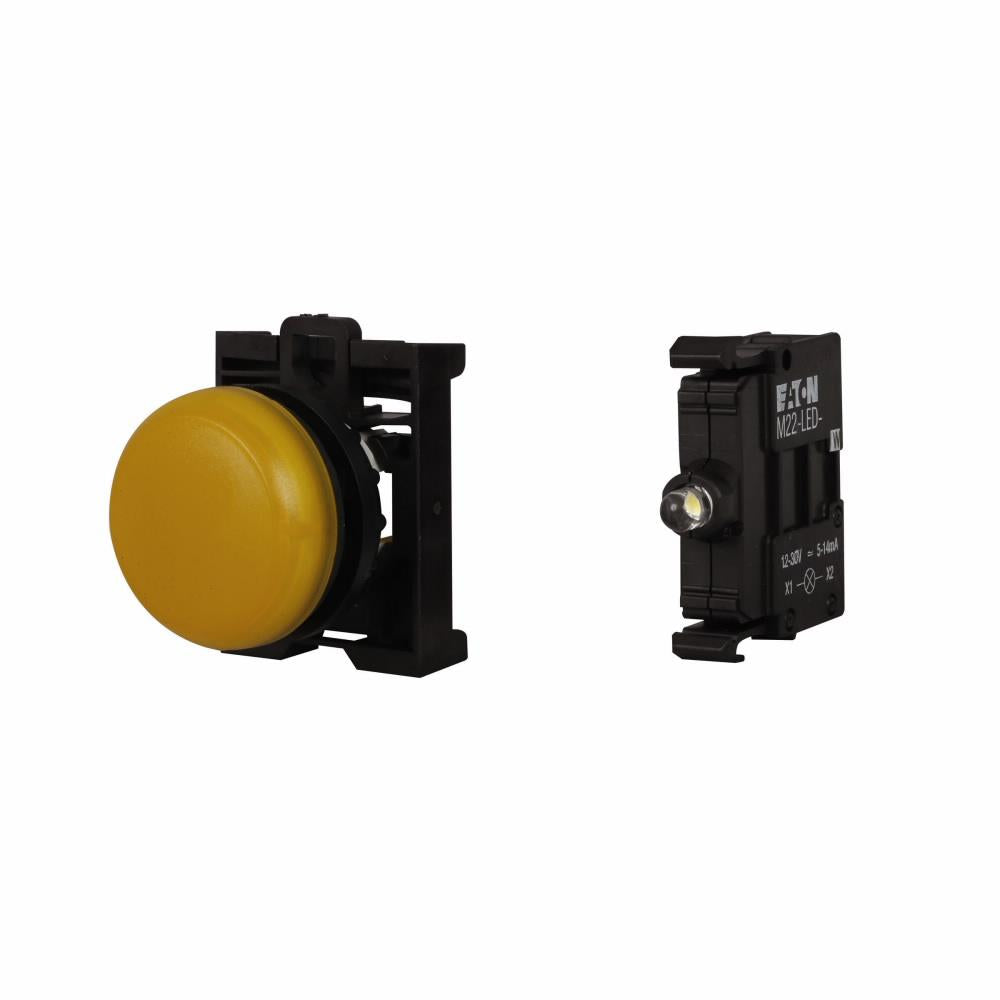

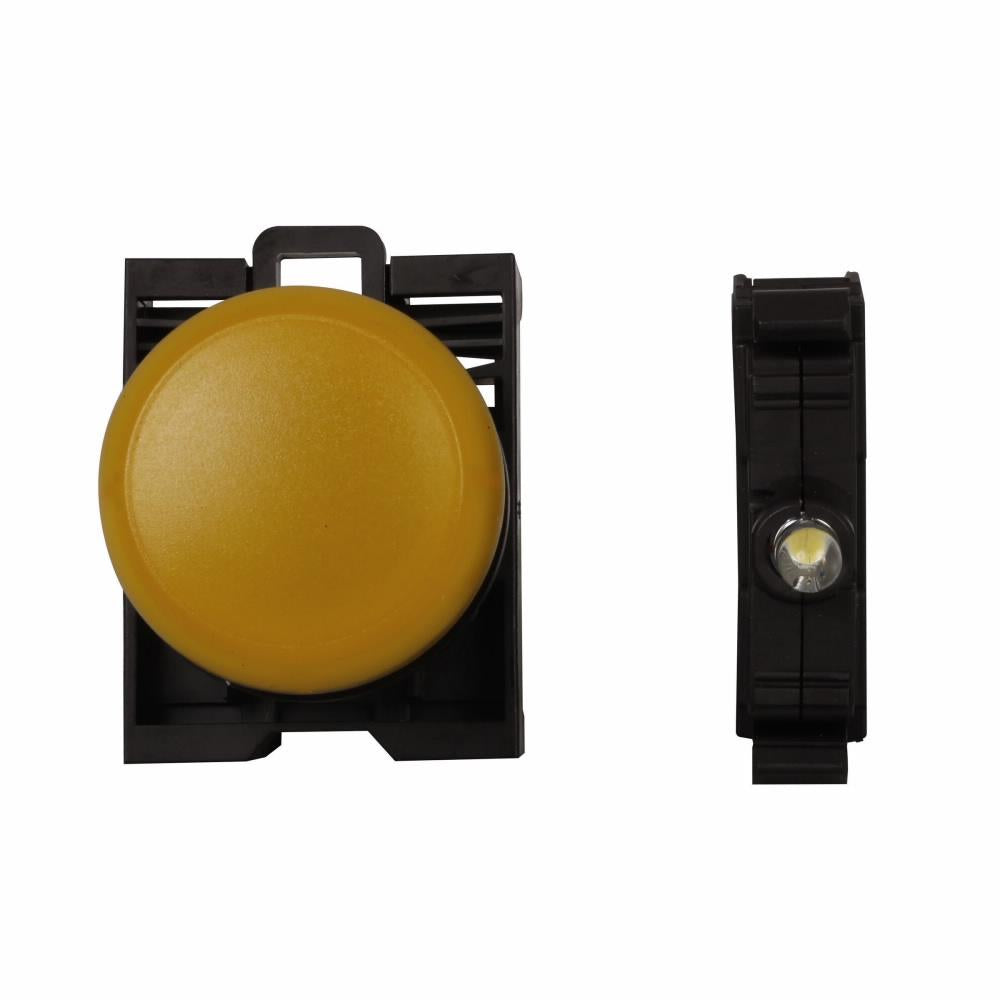

Eaton M22-L-Y-230W Indicating Light 85-264 VAC/VDC

Product Description

The EATON M22-L-Y-230W indicating light combines a durable, bright LED unit with modern lenses designed for optimal visibility. The lenses can be laser engraved for customization. This illuminated modular unit is designed for a voltage rating of 85 to 264 VAC/VDC. It has an enclosure rating of NEMA 4X/13/IP67/IP69K.

• Customizable laser engraving on all lenses
• LED offering for improved brightness quality and up to 100000 hr of operation
• Lenses designed specifically for LED illumination

Product Highlights

The M22 series indicating light offers a long-lasting, bright LED, modular construction, and is suitable for various applications including automation, logic control equipment, and electrical assemblies.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: M22-L-Y-230W
• Country of Origin: Germany

Technical Specifications

• Average Life: 100000 hr
• Voltage Rating: 85 to 264 VAC/VDC
• Style: Flush Button
• Type: Illuminated Modular
• Size: 22.5 mm
• Series: M22
• Lens Color: Yellow
• Lamp Type: LED
• Enclosure Type: NEMA 4X/13/IP67/IP69K
• Color: White
• Application: Automation, Logic Control Equipment, Electrical Assemblies, Panels and OEMs Applications
• Includes: Frame, Standard Terminals and Mounting Hardware
• Standards/Approvals: BAA Compliant|UL 489|CSA C22.2 File No. 5-02|CCC Certified|CE Certified|NEC Certified|IEEE 1584-2002|IEC 60947-2|Federal Specification W-C-375B|HACR Rated|Lloyd's Register|GOST-R Certified|Bureau Veritas Approved
• Product Name: Eaton M22 modular pushbutton
• Catalog Number: M22-L-Y-230W
• UPC: 786685278667
• Product Length/Depth: 2 in
• Product Height: 1 in
• Product Width: 2 in
• Compliances: GoST-R CE Marked Bureau Veritas
• Certifications: CSA Certified CCC Marked Lloyd's Register Certified
• Product Type: Modular pushbutton
• Environmental rating: IP67, IP69K, NEMA 4X, 13
• Operating Cycles: 100,000 Hours of operation
• Illumination: Illuminated
• Actuator: Flush
• Light color: White
• Brand: Eaton
• ItemPackageQuantity: 1
• MPN: M22-L-Y-230W
• Features: Illuminated
• Country of Origin: Germany
• Manufacturer: Eaton
• UNSPSC Code: 39120000
• Unit of Measure: EA
• Product Series: M22
• Family Series: Eaton Pilot Lights, M22 Series
• Description: Eaton M22 modular pushbutton, Complete Indicating Light, Flush, IP67, IP69K, NEMA 4X, 13, Illuminated, Yellow, White, 100, 000 Hours of operation, 85-264 Vac/dc
• Push-to-Test: No
• Mounting: 22 mm
• Lens/Button Shape: Flat Round
• Bezel: Black Plastic
• Nominal Lamp Voltage: 120 VAC, 240 VAC
• Protection Rating: IP67, IP69K
• Terminal Type: Screw
• NEMA Rating: NEMA 13, NEMA 4X
• Gross Weight: 0.1 lbs
• Net Weight: 0.1 lbs
• Enclosure: NEMA 4X/13/IP67/IP69K
