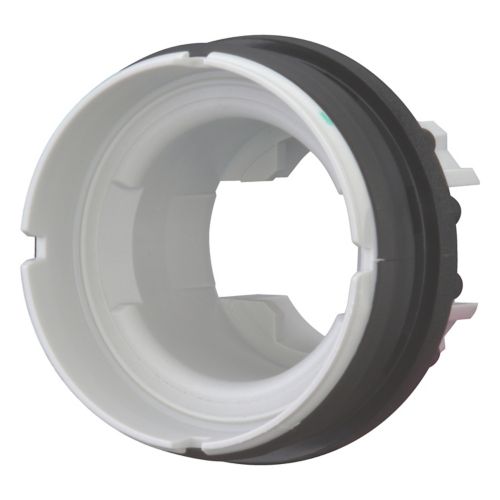

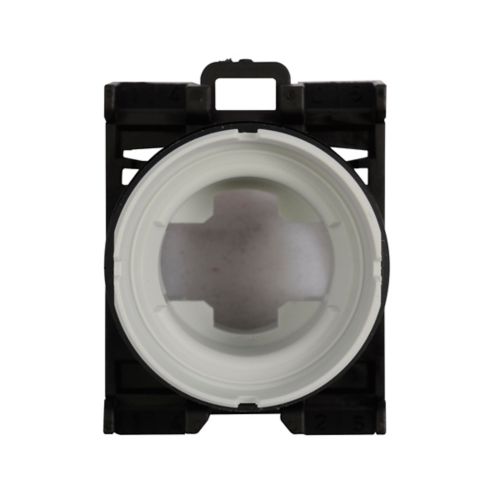

Eaton M22-L-X Indicator Light No Lens

Product Description

The Eaton M22-L-X is a flush lensless indicating light operator from the M22 series. This illuminated indicator light has IP66, NEMA 4X, and 13 environmental ratings and offers 100,000 hours of operation. It is designed for use with 22.5 mm pushbutton switches.

• Flush lensless design
• IP66, NEMA 4X, 13, Rk resistance 47 environmental rating
• 100,000 hours of operation

Product Highlights

The Eaton M22-L-X is a durable and long-lasting indicating light suitable for various industrial applications.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: M22-L-X

Technical Specifications

• Product Type: Modular pushbutton
• Type: Indicator Light
• Environmental rating: IP66, NEMA 4X, 13, Rk resistance 47
• Operating Cycles: 100,000 Hours of operation
• Illumination: Illuminated
• Series: M22 Series
• Size: Front diameter: 29.7 mm
• Actuator: Flush
• Button color: Lensless
• Light color: White
• Mounting: 22.5 mm
• IP/NEMA Rating: 4X, 13
• Material: Plastic
• Finish Type: Plastic
• Shade Material: Plastic
• Product Name: Eaton Moeller series M22 indicator light
• Catalog Number: 216776
• Model Code: M22-L-X
• EAN: 4015082167769
• Product Length/Depth: 30 mm
• Product Height: 30 mm
• Product Width: 30 mm
• Compliances: CE Marked
• Global Catalog: 216776
• Indicator light: Indicator lights
• Fitted with: Front ring
• Pollution degree: 3
• Climatic proofing: Damp heat, constant, to IEC 60068-2-78 Damp heat, cyclic, to IEC 60068-2-30
• Connection to SmartWire-DT: Yes With SWD-RMQ connections
• Rated impulse withstand voltage (Uimp): 4000 V AC
• Bezel color: Chrome
• Shock resistance: Mechanical, According to IEC/EN 60068-2-27 30 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms
• Bezel material: Other
• Terminal capacity: 0.5 - 1.5 mm ², stranded 0.5 - 1.5 mm ², solid
• Lens color: Other
• Design: Flush
• Mounting position: As required
• Overvoltage category: III
• Degree of protection: IP67/IP69K
• Ambient operating temperature - max: 70 °C
• Ambient operating temperature - min: -25 °C
• Equipment heat dissipation, current-dependent Pvid: 0 W
• Force for positive opening - min: 0 N
• Heat dissipation capacity Pdiss: 0 W
• Heat dissipation per pole, current-dependent Pvid: 0 W
• Opening diameter: 22.5 mm
• Opening height: 22.5 mm
• Rated insulation voltage (Ui): 250 V
• Rated operational current for specified heat dissipation (In): 0 A
• Static heat dissipation, non-current-dependent Pvs: 0 W
• Suitable for number of built-in signal lights: 1
• Product category: RMQ-Titan
• Degree of protection (front side): IP67/IP69K
• Lens type: Flat Round
• UNSPSC Code: 39120000
• Brand: Eaton - Cutler Hammer
• Family Name: Global Modular Family
• Lamp Type: LED
• Manufacturer Part Number: M22-L-X
• ProductVideoURL: https://www.youtube.com/embed/hIbgCpi2PQ8
• Termination: screw
• Unit of Measure: EA
• Primary brand: Eaton
• Main function: Pilot light
• Product series / family name: M22 series
• Functions: 22mm modular flush pilot light/lamp
• Shape: Round
• Diameter: 22.5mm (door punch)
• Connection type: with pressure connections
• Communication protocol: AS-interface
• Manufacturer product status: Commercialized
• Compliant with standard(s): CE
