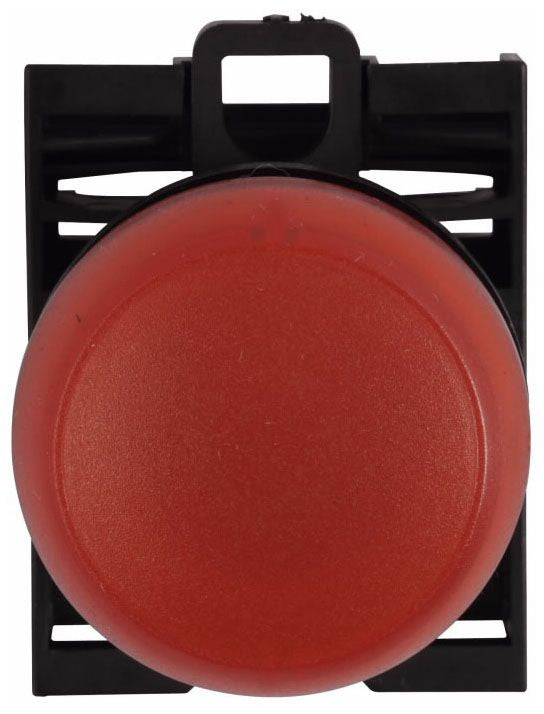

Eaton M22-L-R Flush Type Pilot Light 22.5mm Red

Product Description

The EATON M22-L-R is a flush-mount pilot light indicator designed for use in industrial and commercial control panel applications. This 22.5mm diameter indicator lamp provides a clear visual signal for panel operators and electricians monitoring equipment status. The flush-mount design keeps the lens face level with the panel surface, reducing the risk of accidental actuation or damage in high-traffic environments. At 0.05 pounds, it is a compact, lightweight component suited for dense panel layouts. Licensed electricians and control panel builders are the primary installers of this type of indicator device.

The M22-L-R is part of the EATON M22 series of 22.5mm control and signaling devices. It is intended for use in industrial control panels, machine control enclosures, and commercial electrical equipment where red pilot light indication is required. The flush-mount lens style is commonly specified where a low-profile, snag-resistant indicator is preferred. This unit is appropriate for both new panel builds and replacement applications in existing M22 series installations.

Key Features

• Flush-type lens mount keeps indicator face level with panel surface
• 22.5mm mounting diameter fits standard M22 series cutouts and hardware
• Red lens color provides standard stop, fault, or active-power indication
• Lightweight construction at 0.05 pounds for use in dense panel layouts
• Designed for compatibility with M22 series bases and lamp modules

Compatibility

Designed as an OEM-style replacement or new-build component for 22.5mm M22 series control panel indicator assemblies requiring a flush-type red lens.

Installation Notes

Installation should be performed by a qualified electrician in accordance with applicable NEC requirements. De-energize the control panel and follow lockout/tagout procedures before removing or installing indicator components. Ensure the mounting cutout matches the 22.5mm M22 series specification before installation. Verify the correct lamp module and voltage base are paired with this lens unit prior to energizing the panel.

Technical Specifications

• Mounting Type: Flush
• Mounting Diameter: 22.5mm
• Lens Color: Red
• Weight: 0.05 pounds
• UPC: 78668527858

Standard Information

• Brand: EATON
• Manufacturer Part Number: M22-L-R
