Eaton M22-L-B-230B M22 Modular Pushbutton 85-264 Vac/dc

Product Description

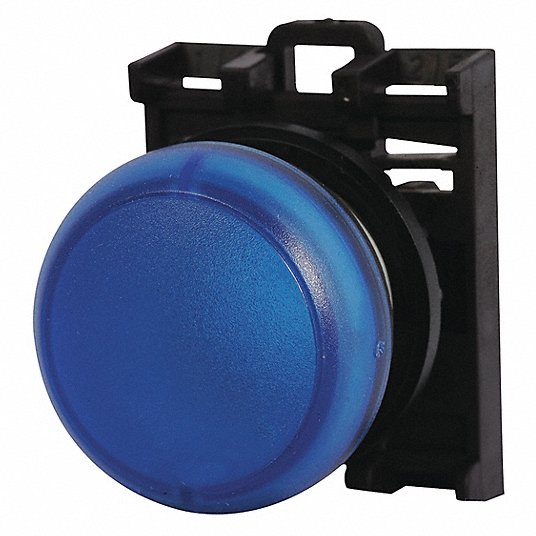

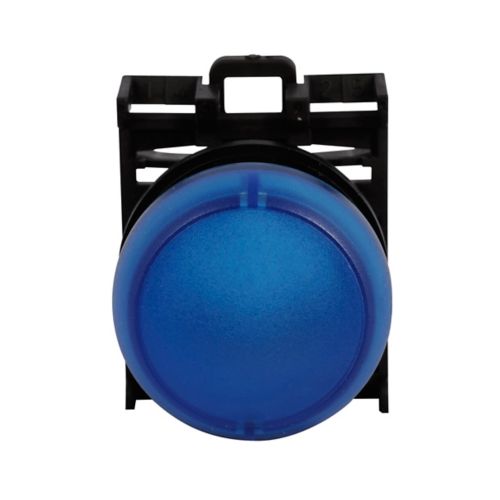

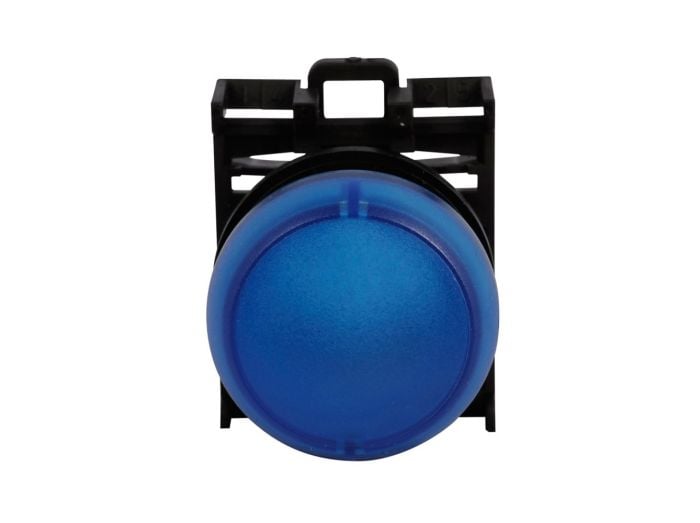

The EATON M22-L-B-230B is a M22 modular pushbutton, complete with indicating light. It features a flush design and is rated IP67, IP69K, and NEMA 4X, 13. The illuminated blue light has an operational life of 100,000 hours and operates on 85-264 Vac/dc.

• Complete Indicating Light
• Flush
• IP67, IP69K, NEMA 4X, 13

Product Highlights

Modular pushbutton with long-lasting LED, ideal for industrial applications requiring clear indication and robust protection.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: M22-L-B-230B
• Country of Origin: Germany

Technical Specifications

• Product Name: Eaton M22 modular pushbutton
• Catalog Number: M22-L-B-230B
• UPC: 786685278537
• Product Length/Depth: 1.46 in
• Product Height: 2.22 in
• Product Width: 1.18 in
• Compliances: Bureau Veritas
• Certifications: CSA Certified
• Product Type: Modular pushbutton
• Type: LED
• Environmental rating: IP67, IP69K, NEMA 4X, 13
• Operating Cycles: 100,000 Hours of operation
• Voltage rating: 85-264 Vac/dc
• Illumination: Illuminated
• Series: M22
• Size: 22.5 mm
• Actuator: Flush
• Lens color: Blue
• Light color: Blue
• Manufacturer: Eaton
• Product Series: M22
• Family Series: Eaton Pilot Lights, M22 Series
• Description: Eaton M22 modular pushbutton, Complete Indicating Light, Flush, IP67, IP69K, NEMA 4X, 13, Illuminated, Blue, 100, 000 Hours of operation, 85-264 Vac/dc
• Push-to-Test: No
• Mounting: 22 mm
• Lamp Type: LED
• Lens/Button Shape: Flat Round
• Bezel: Black Plastic
• Nominal Lamp Voltage: 120 VAC, 240 VAC
• Protection Rating: IP67, IP69K
• Terminal Type: Screw
• NEMA Rating: NEMA 13, NEMA 4X
• Brand: Eaton
• Category: Optoelectronics, Panel Indicators, Pilot Lights
• Ratings: AC
• Manufacturer Part Number: M22-L-B-230B
• Voltage: 85V ~ 264V
• Panel Cutout Shape: Round
• Part Status: Active
• Lens Size: 29.72mm Dia
• Lens Style: Round with Flat Top
• Lamp Color: Blue
• Termination Style: Screw Terminal
• Panel Cutout Dimensions: 0.89" (22.50mm)
• Ingress Protection: IP67, IP69K, NEMA 4X, 13
• IP Rating: IP67; IP69K
• Includes Lamp Module: Lamp Module Included
• Includes Push-To-Test: No Push-To-Test Included
• Lamp Bulb Color: Blue
• Lamp Bulb Type: LED
• Lamp Module Type: Full
• Max Lamp Bulb Voltage: 264 V AC/DC
• Max Voltage Rating (Supply): 264 V AC/DC
• NEMA Enclosure Rating: 1; 2; 3; 3R; 4; 4X; 12; 13
• Overall Depth: 2.26 in
• Overall Height: 1 in
• Overall Width: 1 in
• Panel Mounting Hole Diameter: 22 mm
• Resistance Properties: Corrosion Resistant
• Standards: Bureau Veritas; CCC; CE; CSA; GOST-R; Lloyd's Register; UL Listed
• Terminal Connection: Spring Cage
• UNSPSC: 39121534
• Family / Style: M22
