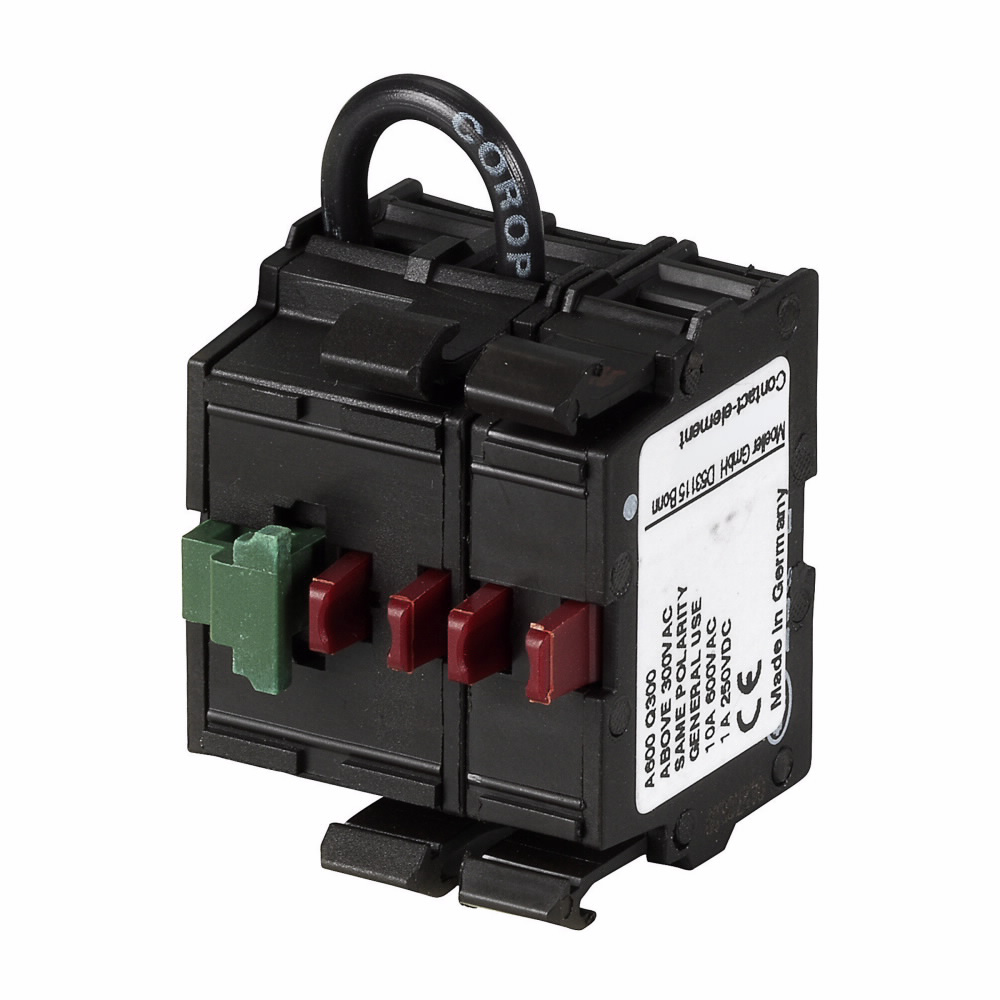

Eaton M22-K02SMC10 ETN M22-K02SMC10 2 NC Self-Monitoring 22.5 mm

Product Description

The Eaton M22-K02SMC10 contact block is designed for reliable performance in control applications. This assembly features a size of twenty-two point five millimeters with a front screw actuator. It includes a two normally closed (2NC) configuration, ensuring safety in usage.

• Positive drive mechanism for NC contacts
• IP66 and NEMA 4X rated for enhanced durability
• Standardized for compliance with multiple certifications

Product Highlights

The Eaton M22-K02SMC10 is suitable for electric assemblies and control panels. Its compact design enables quick installation and maintenance.

Product Information

Standard Information

• Manufacturer: Eaton
• Catalog Number: M22-K02SMC10

Technical Specifications

• Contact Configuration: SMCB, 2 NC
• Contact Rating: 2 A at 500 VAC, 0.3 A at 220 VDC
• Dimensions: 1.46 in length x 1.18 in width x 1.03 in height
• Weight: 0.072 lb
• Enclosure Rating: IP66
• NEMA Rating: NEMA 4X/13
• Terminal Type: Screw
• Standards: CCC Certified, CSA Certified, CE Marked, Lloyd's Register Certified
