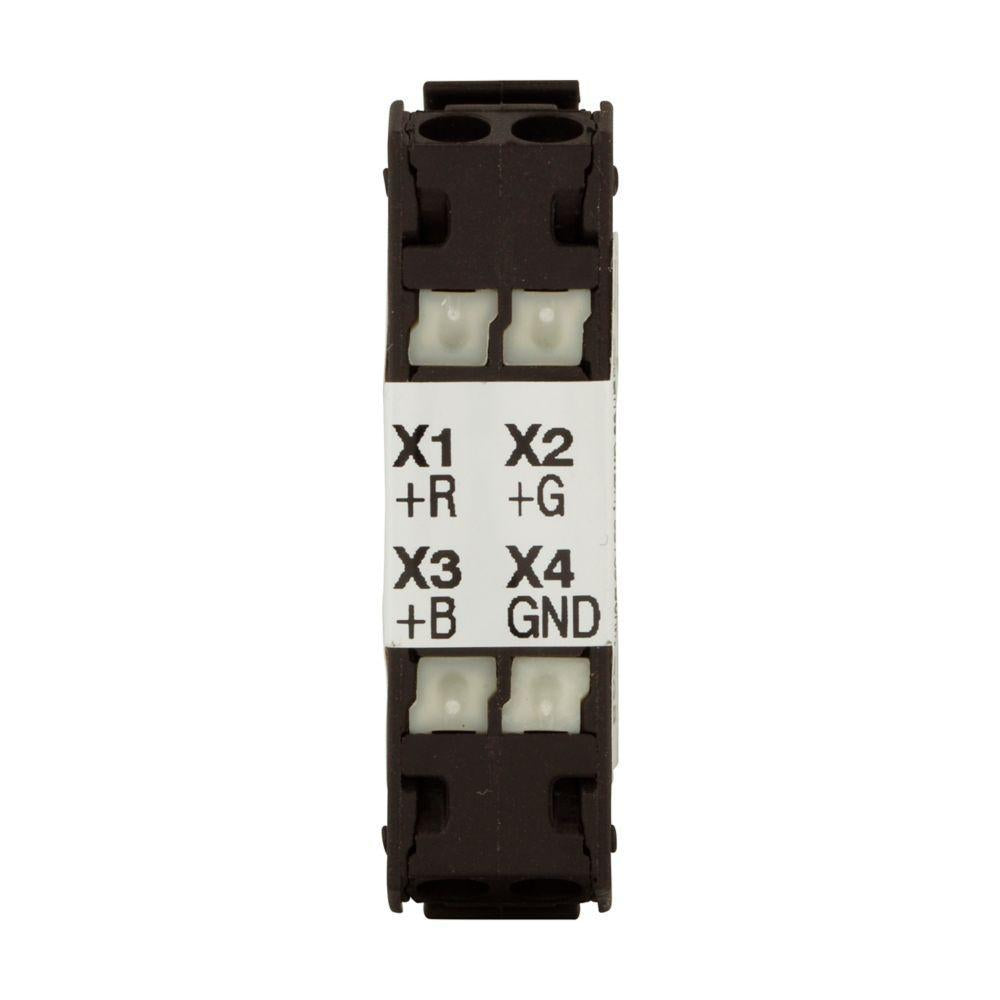

Eaton M22-FLED-RGB M22 LED Multi-Color

Product Description

The EATON M22-FLED-RGB is an M22 series LED light module. This light unit offers high-quality brightness and up to 100,000 hours of illumination. Designed for use with 22mm RMQ-Titan series switches, it features a space-saving construction that enables fast assembly. The LED light source has front mounting and RGB color capability, operating at 24VDC.

• Features a space-saving construction for fast assembly
• Offers LED light units to ensure high-quality brightness and up to 100,000 hours of illumination
• Designed for use with 22mm RMQ-Titan series switches

Product Highlights

The M22-FLED-RGB LED module is designed for use with 22mm RMQ-Titan series switches. It features an LED light source, front mounting, and RGB color capability.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: M22-FLED-RGB

Technical Specifications

• Series: M22
• Lamp Type: LED
• Voltage Rating: 12 to 240 VAC/VDC
• Color: Blue/Green/Red
• Product Name: Eaton M22 pushbutton light module
• Catalog Number: M22-FLED-RGB
• UPC: 786689054380
• Certifications: CE UL CSA
• Product Type: Pushbutton accessory
• Used With: M22 pilot devices
• Mounting Method: Adapted
• Voltage rating: 24 Vdc
• Field Color: RGB
• LED Lamp Number: 3
• Light Unit Type: LED
• Light Unit Voltage: 24 V
• Manufacturer: EATON ELECTRIC
• Type of switch accessories: illuminating unit
• Switch standard: 22mm
• Application - series/manufacturer: RMQ-Titan
• Illumination: LED
• Mounting: front
• Leads: spring clamps
• Lamp colour: RGB
• Operating current: 8...15mA
• Switches features: flat
• Family: RMQ Flat Design, RMQ Flat Rear
• Operating Temperature: -25...70°C
• Supply Voltage: 24V DC
• Type: LED
• Voltage: 24V
• Compatible Series: Eaton, M22
• Moisture Sensitivity Level (MSL): Not Applicable
• ECCN: EAR99
• HTSUS: 8541.41.0000
