Eaton M22-DRP-R MTN Mushroom PB Red

Product Description

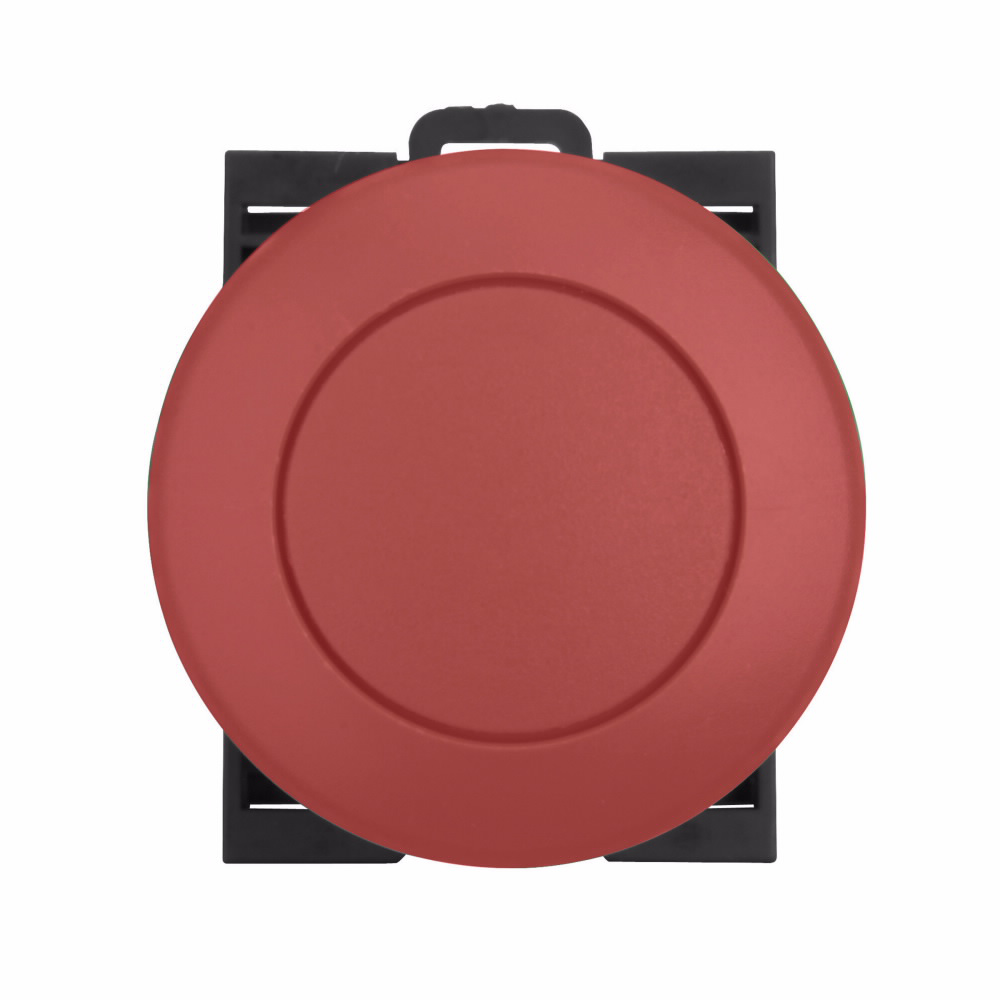

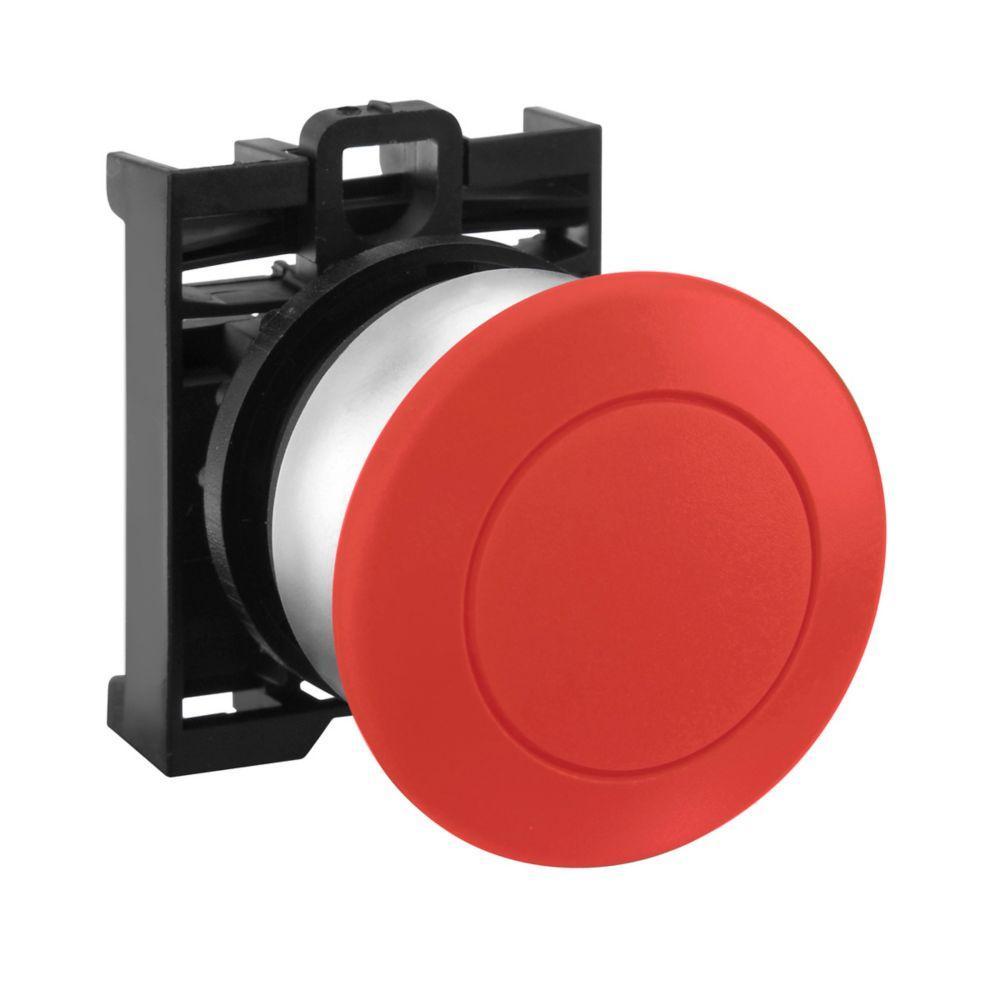

The Eaton M22-DPR-R is a modular mushroom pushbutton operator designed for efficiency and durability. It is maintained contact mode and comes with a red button and a silver bezel. This pushbutton is ideal for various applications in stationary machinery and equipment. The device features an IP67 and IP69K rating, ensuring protection against dust and water intrusion.

• Maintained contact mode
• Rated for one million mechanical operations
• Compatible with M22 RMQ-Titan modular push button systems

Product Highlights

This modular pushbutton is suitable for industrial control applications and provides reliable operation in challenging environments.

Product Information

Standard Information

• Brand: Eaton
• Manufacturer: Cutler-Hammer / Eaton

Technical Specifications

• Catalog Number: M22-DRP-R
• UPC: 786685282718
• Size: 22.5 mm
• Color: Red
• Action: Maintained
• Actuator: Mushroom Head
• Enclosure Type: NEMA 4X, IP67, IP69K
• Contact Configuration: 2 NC
• Operating Cycles: 1M
• Height: 1 inch
• Length: 2 inches
• Weight: 0.05 lb
