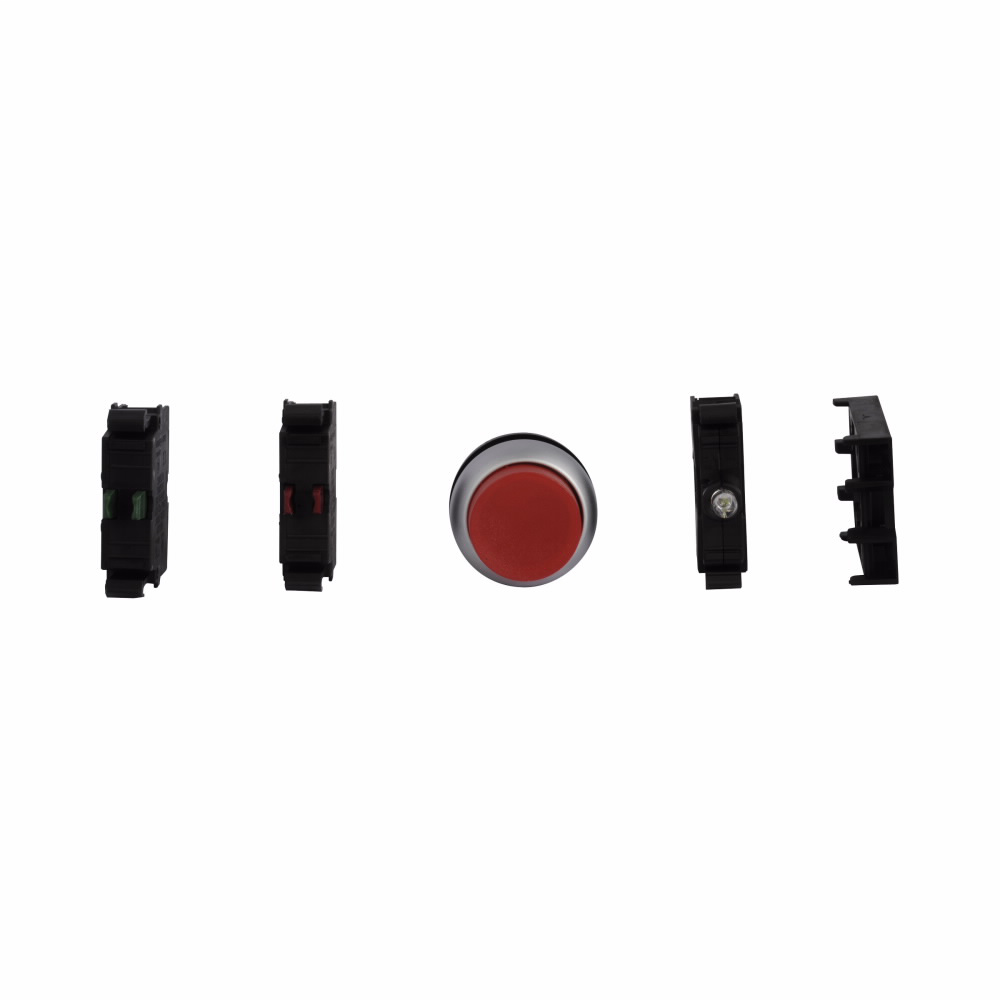

Eaton M22-DLH-R-K11-230R ILL MOM PB S

Product Description

The Eaton M22-DLH-R-K11-230R is a modular pushbutton device designed for reliable control in electrical applications. This product features a complete assembly with an extended button actuator and momentary functionality. The button is illuminated, ensuring visibility in various lighting conditions. It is suitable for use in environments requiring IP67, IP69K, and NEMA 4X ratings.

• Pushbutton type: Modular, 22.5 mm
• Operating voltage: 85-264 volts
• Contact configuration: 1NO-1NC

Product Highlights

This Eaton pushbutton is built for durability, offering up to five million mechanical operations. Its LED illumination enhances usability, providing clear indication when activated. The stainless steel bezel adds to its robustness, making it ideal for challenging settings.

Product Information

Standard Information

• Manufacturer: Eaton
• Catalog Number: M22-DLH-R-K11-230R

Technical Specifications

• Height: 3.45 inches
• Length: 1.46 inches
• Weight: 0.094 lb
• Voltage Rating: 85-264V
• Actuator: Extended push-button
• Bezel Color: Silver
• Contact Configuration: 1NO-1NC
• Environmental Conditions: IP67, IP69K, NEMA 4X, NEMA 13
