Eaton M22-DLH-G CH Pushbutton 22mm Operator Green Extended Illuminated Momentary Silver Bezel

Product Description

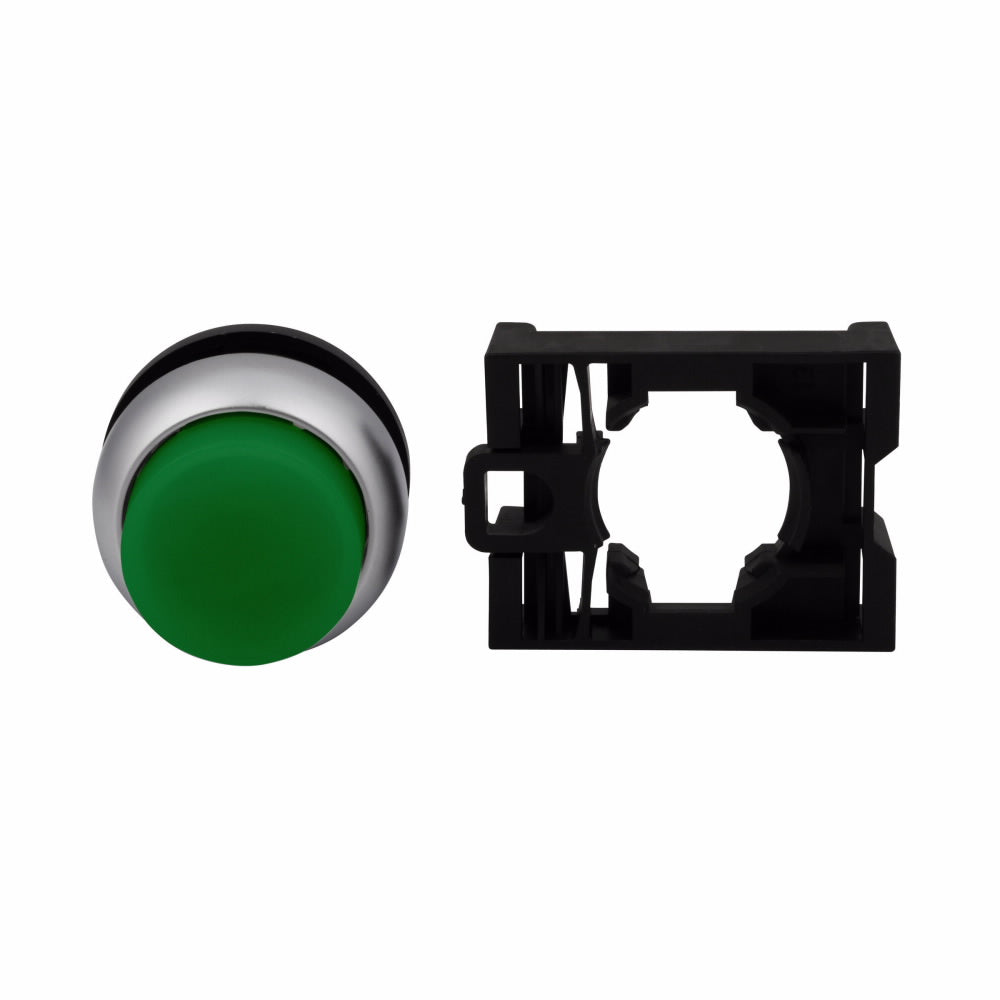

The EATON M22-DLH-G is a RMQ-Titan® modular illuminated pushbutton operator with a silver bezel. This 22.5 mm momentary contact mode switch features an extended green button and an LED lamp. It is designed for electrical assemblies, panels, and EOEMs applications. The unit is NEMA 4X/13/IP67/IP69K rated and operates in temperatures from -13 to 158 deg F.

• Modular and flexible construction
• Heavy duty construction
• Stackable contact blocks
• Spring cage terminal blocks

Product Highlights

The M22-DLH-G illuminated pushbutton is versatile with field convertible functions and customized laser engraving capabilities.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: M22-DLH-G

Technical Specifications

• Application: Electrical Assemblies, Panels and EOEMs Applications
• Bezel Housing: Silver Bezel
• Color: Green
• Enclosure: NEMA 4X/13/IP67/IP69K
• Includes: Contact Block Mounting Adapter
• Lamp Type: LED
• Manufacturer Part Number: M22-DLH-G
• Series: M22
• Size: 22.5 mm
• Standards/Approvals: Bureau Veritas Approved|CCC Certified|CSA Certified|Lloyd's Register Certified|GoST-R Compliant|CE Marking
• Temperature Rating: -13 to 158 deg F
• Type: Modular
• IP/NEMA Rating: NEMA 4X, NEMA 13
• Type of switch: push-button
• Switch standard: 22mm
• Stable positions number: 1
• Actuator colour: green
• Illumination: M22-FLED, M22-LED
• IP rating: IP67
• Button shape: prominent
• Switches features: witout symbol
• Manufacturer series: RMQ-Titan
• Number of positions: 2
• Mounting hole diameter: Ø22.5mm
• Operating temperature: -25°C ~ 70°C
• Voltage Rating - DC: 24 V
• Actuator Type: Round, Button
• Packaging: Bulk
• Illumination Type, Color: LED, Green
• Part Status: Active
• Illumination Voltage (Nominal): 12 ~ 30 VAC/DC
• Mounting Type: Panel Mount, Front
• Termination Style: Screw Terminal
• Ingress Protection: IP67/IP69K - Dust Tight, Water Resistant, Waterproof
• Circuit: DPST-NO
• Panel Cutout Dimensions: Circular - 22.50mm Dia
• Switch Function: Off-Mom
• Current Rating (Amps): 6A (AC), 3A (DC)
• Mechanical Life: 5,000,000 Cycles
• Voltage Rating - AC: 115 V
• Electrical Life: 1,000,000 Cycles
• Flush: Flush
• Front fixing: Front fixing
• Protection rating: IP67/IP69K
• Drilling dimensions: 22.5 mm
• Incl. LED element: Green
• Voltage: 12-30 V AC/DC
• Contact: 1 NO
• Terminals: Screw terminals and mounting adapter
