Eaton M22-DL-W Pushbutton 22.5 mm

Product Description

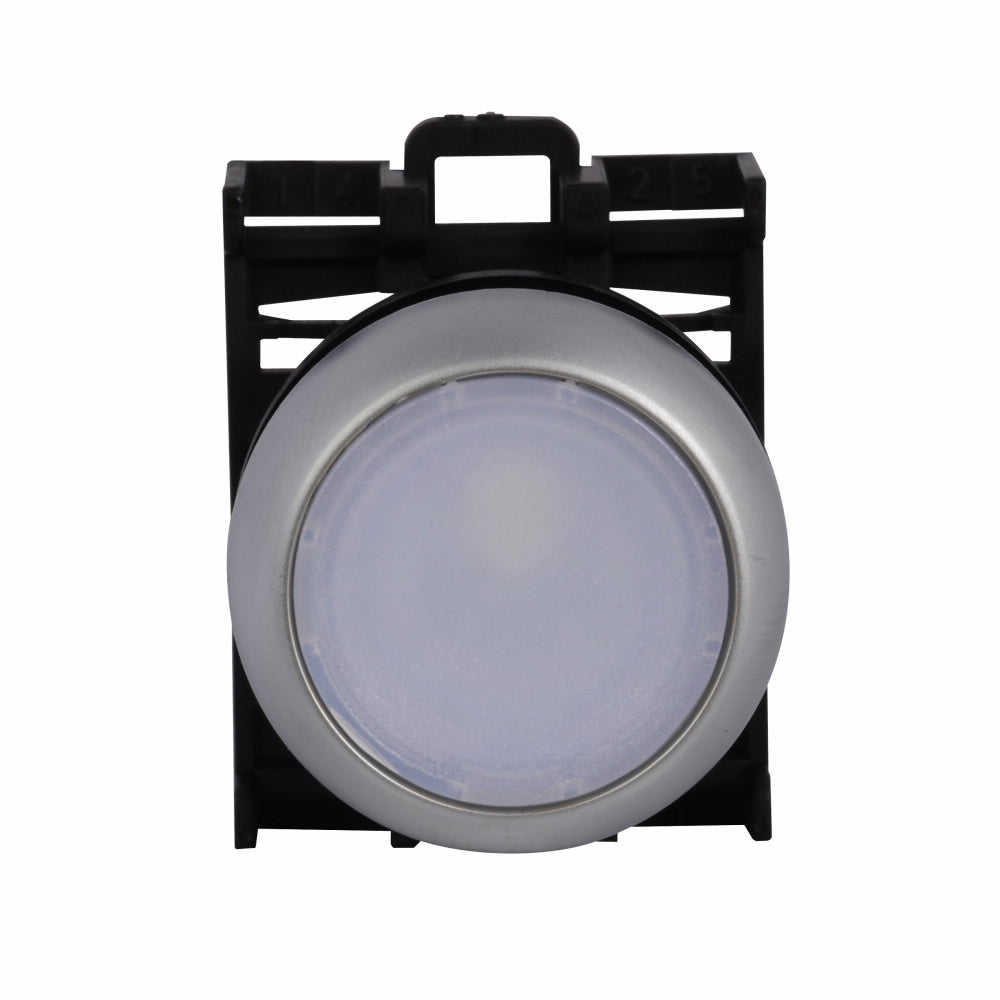

The EATON M22-DL-W is a RMQ-Titan® modular illuminated pushbutton operator designed for electrical assemblies and panels. This 22.5 mm momentary contact mode switch features a flush button operator and LED lamp with a silver bezel. It is suitable for rugged environments and wash down applications. The modular construction allows for fast assembly and simplifies stocking of components.

• Notched hole mounting with anti-rotation tab and central nut mounting on each operator
• High mechanical and electrical life allows for use in tough and challenging applications
• Snap-lock contact blocks and light units for front or base mounting

Product Highlights

The M22-DL-W pushbutton is corrosion-resistant and ideal for use in a variety of applications. It features a modular design for easy assembly and is built to withstand harsh environments.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: M22-DL-W

Technical Specifications

• Manufacturer Part Number: M22-DL-W
• Series: M22
• Size: 22.5 mm
• Bezel Housing: Silver Bezel
• Enclosure: NEMA 4X/13/IP67/IP69K
• Lamp Type: LED
• Temperature Rating: -13 to 158 deg F
• Type: Modular
• Application: Pushbutton
• Special features: M22 series
• Actuator function: Momentary
• Bezel: Silver
• Illumination: Illuminated
• Environmental rating: IP67, IP69K, NEMA 4X, NEMA 13
• Operating cycles: 5 million
• Action: Momentary
• Mounting Hole Size: 22.5 mm
• Mounting Type: Panel Mount
• Operation: Momentary
• Operation Mode: Momentary
• Voltage Rating: 500 V
• Current Rating: 6 A
