Eaton M22-DL-R Pushbutton 22.5 mm

Product Description

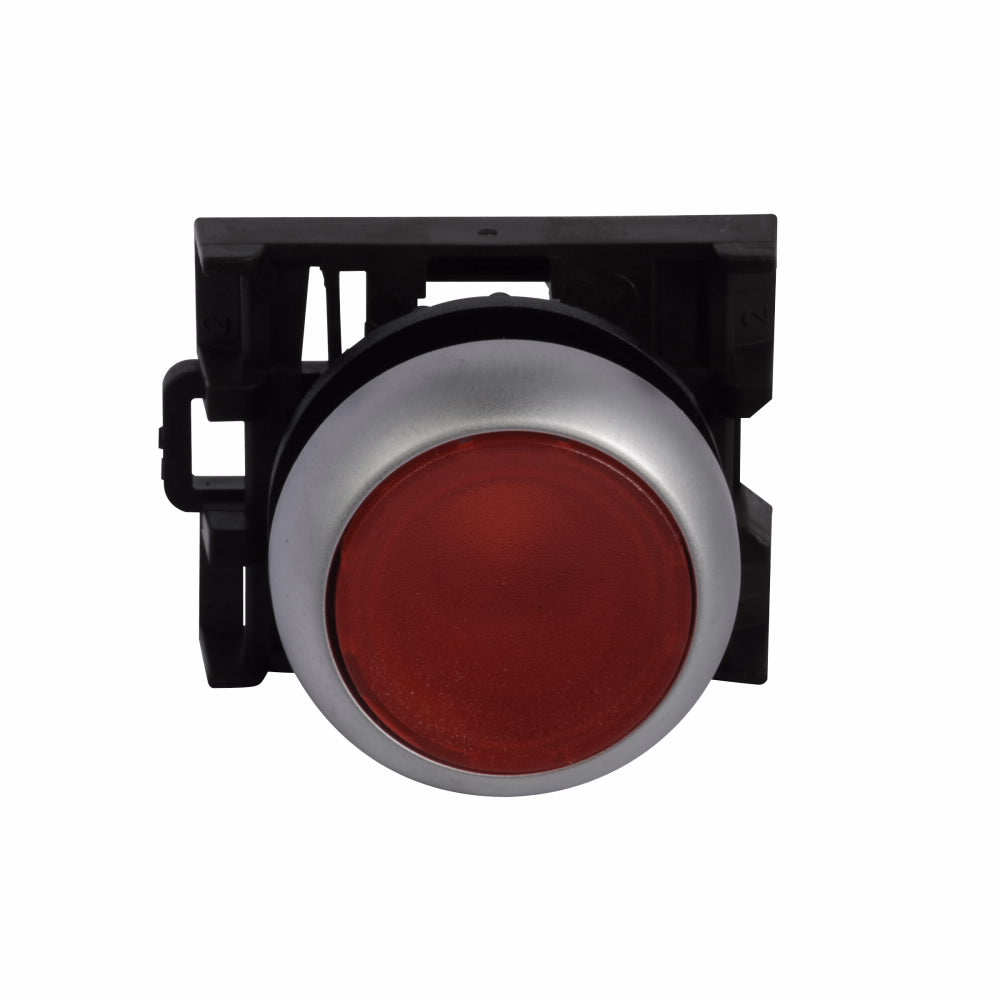

The EATON M22-DL-R is a RMQ-Titan® modular illuminated pushbutton operator. This momentary contact mode, flush button operator features an LED lamp and a silver bezel. Designed for electrical assemblies, panels, and EOEMs applications. It has a NEMA 4X/13/IP67/IP69K enclosure and operates in temperatures from -13 to 158 deg F.

• Modular and flexible construction
• Heavy duty construction
• Stackable contact blocks

Product Highlights

The M22-DL-R pushbutton is a versatile and durable solution for various industrial applications, offering easy assembly and reliable performance.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: M22-DL-R

Technical Specifications

• Application: Electrical Assemblies, Panels and EOEMs Applications
• Bezel Housing: Silver Bezel
• Color: Red
• Enclosure: NEMA 4X/13/IP67/IP69K
• Includes: Contact Block Mounting Adapter
• Lamp Type: LED
• Manufacturer Part Number: M22-DL-R
• Series: RMQ-Titan M22 Series
• Size: 22.5 mm
• Standards/Approvals: Bureau Veritas Approved|CCC Certified|CSA Certified|Lloyd's Register Certified|GoST-R Compliant|CE Marking
• Temperature Rating: -13 to 158 deg F
• Type: Modular
• Product Name: Eaton M22 modular pushbutton
• UPC: 786685274553
• Product Length/Depth: 1.17 in
• Product Height: 0.39 in
• Product Width: 1.17 in
• Compliances: CE Marked GoST-R Bureau Veritas
• Certifications: CCC Marked CSA Certified Lloyd's Register Certified
• Catalog Notes: Includes contact block mounting adapter.
• Product Type: Modular pushbutton
• Special features: M22 series
• Bezel: Silver
• Actuator function: Momentary
• Button color: Red
• Actuator: Flush, button
• Illumination: Illuminated
• Environmental rating: IP67, IP69K, NEMA 4X, NEMA 13
• Operating cycles: 5 million
• UNSPSC Code: 39120000
• Action: Momentary
• Actuator Color: Red
• Alternate Mfr Part Number: M22-DL-R
• Body Style: Standard
• Brand: Eaton - Cutler Hammer
• Current Rating: 6 A
• IP Rating: IP67
• Mounting Hole Size: 22.5 mm
• Mounting Type: Panel Mount
• Operation: Momentary
• Operation Mode: Momentary
• Primary Type: Pushbutton
• Unit of Measure: EA
• UPC Code: 786685274553
• Voltage Rating: 500 V
