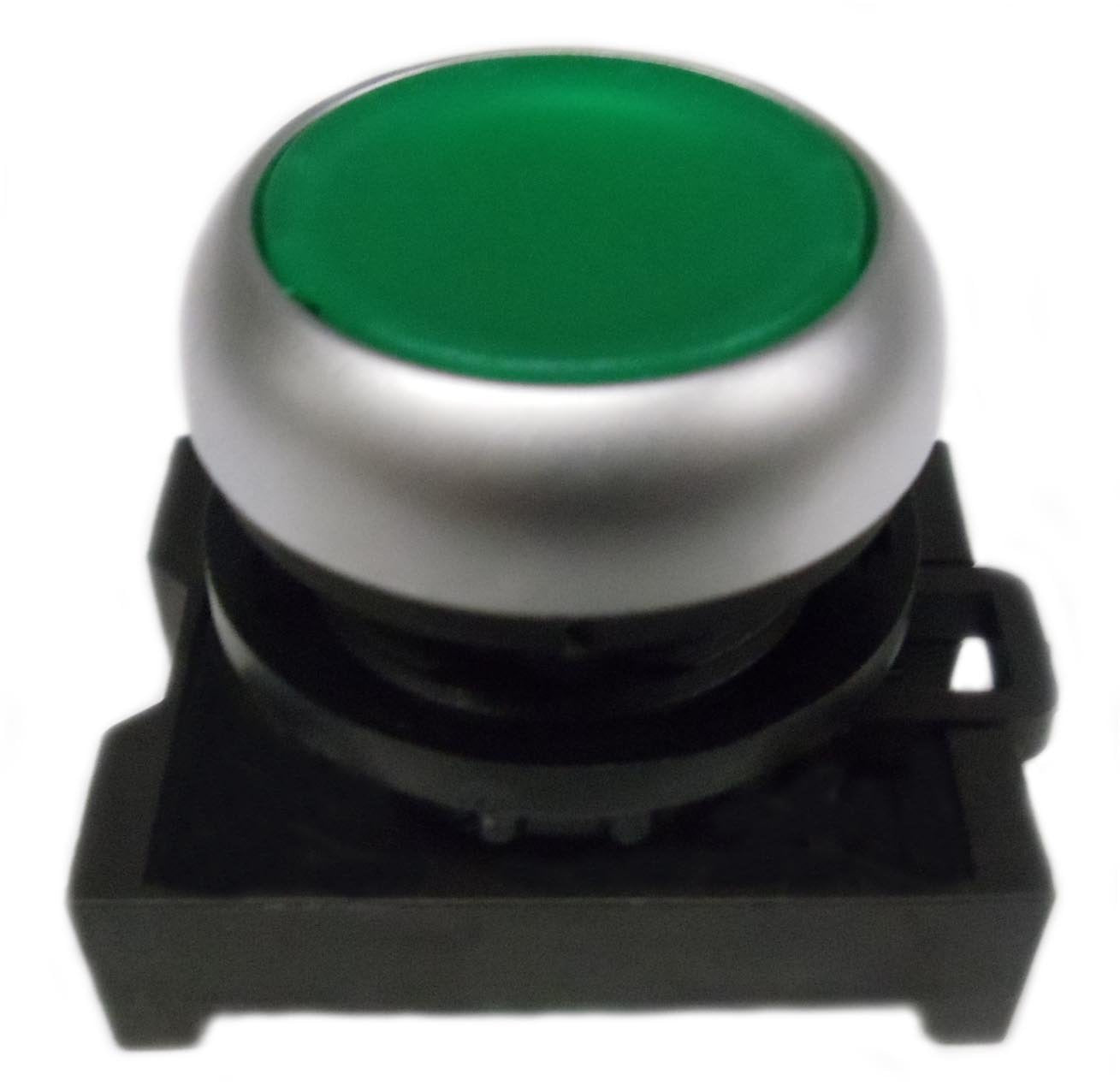

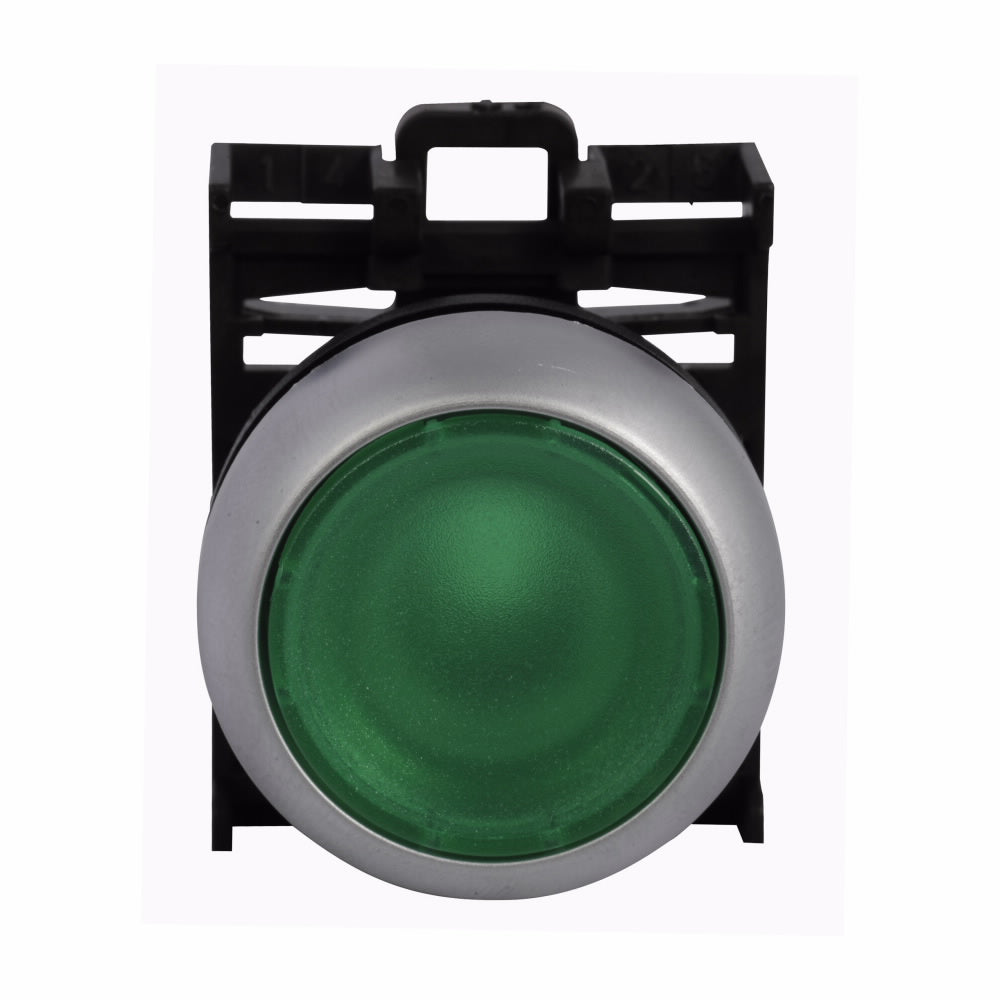

Eaton M22-DL-G Pushbutton, Illuminated, 22mm

Product Description

The Eaton M22-DL-G is a 22mm modular pushbutton with quick installation and modular construction. Mounting base included with operators. It features a momentary contact mode, flush button operator, and LED lamp. It has a silver bezel and is green in color. NEMA Certified.

• Modular construction makes assembly fast and simplifies stocking of components
• Heavy-Duty Construction with a Minimum of IP66 and UL NEMA Type 4X/13 on Front of Panel Operators
• 5 million mechanical operations

Product Highlights

The Eaton M22-DL-G pushbutton is designed for rugged environments and ideal for washdown applications.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: M22-DL-G

Technical Specifications

• Brand: Eaton
• Manufacturer: Eaton
• Model / MPN: M22-DL-G
• Color: Green
• Application: Electrical Assemblies, Panels and EOEMs Applications
• Bezel Housing: Silver Bezel
• Enclosure: NEMA 4X/13/IP67/IP69K
• Includes: Contact Block Mounting Adapter
• Lamp Type: LED
• Series: M22
• Size: 22.5 mm
• Standards/Approvals: Bureau Veritas Approved|CCC Certified|CE Marking|CSA Certified|GoST-R Compliant|Lloyd's Register Certified
• Temperature Rating: -13 to 158 deg F
• Type: Modular
• Product Name: Eaton M22 modular pushbutton
• Catalog Number: M22-DL-G
• UPC: 786685274560
• Product Length/Depth: 1.17 in
• Product Height: 0.39 in
• Product Width: 1.17 in
• Compliances: GoST-R CE Marked Bureau Veritas
• Certifications: CSA Certified CCC Marked Lloyd's Register Certified
• Catalog Notes: Includes contact block mounting adapter.
• Product Type: Modular pushbutton
• Special features: M22 series
• Bezel: Silver
• Actuator function: Momentary
• Button color: Green
• Actuator: Flush, button
• Illumination: Illuminated
• Environmental rating: IP67, IP69K, NEMA 4X, NEMA 13
• Operating cycles: 5 million
• Mounting Hole Size: 22.5 mm
• UNSPSC Code: 39120000
• Mounting Type: Panel Mount
• RMQ-Titan M22 Series: RMQ-Titan M22 Series
• IP Rating: IP67
• Voltage Rating: 500 V
• Alternate Mfr Part Number: M22-DL-G
• Actuator Color: Green
• Actuator Type: Flush, Round
• Action: Momentary
• Operation: Momentary
• Current Rating: 6 A
• Body Style: Standard
• Panel Cutout Dimensions: 22.5mm (Round)
• Requires: Contact Block(s), Illumination Source
