Eaton M22-DH-G Extended Pushbutton Operator 22.5mm

Product Description

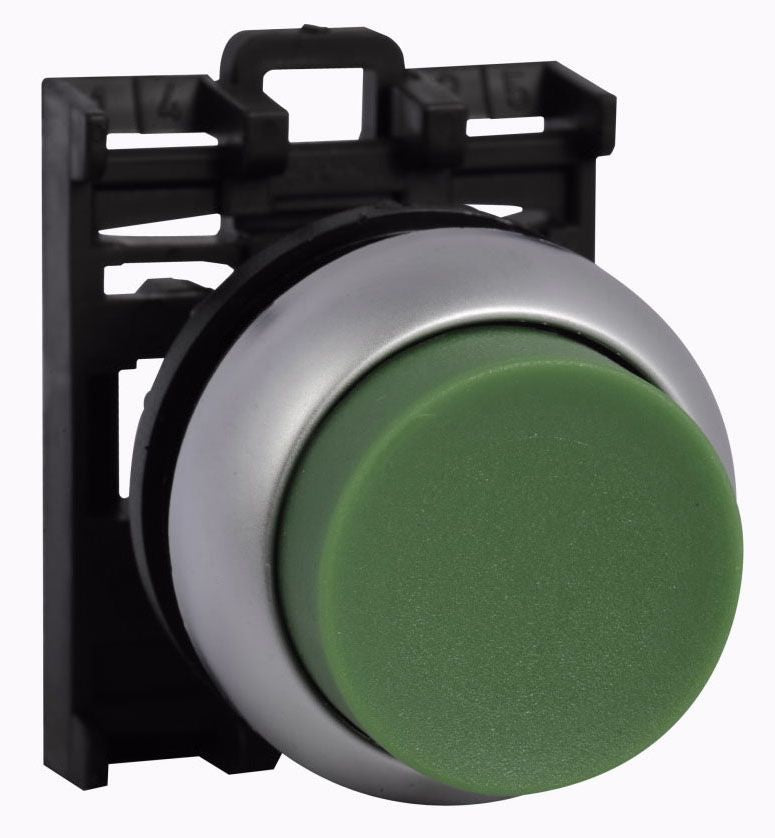

The EATON M22-DH-G is an extended-type pushbutton operator designed for use in the M22 series 22.5 mm modular control station system. This component serves as the mechanical actuator portion of a pushbutton assembly, accepting a contact block or other modular element on its back side. It is built for industrial control panel applications where operators need a raised-profile button for easy actuation in demanding environments. Licensed electricians and industrial control panel builders are the primary installers of this device.

The M22-DH-G fits into standard 22.5 mm cutout control enclosures and panels. It is suited for machine control, motor starter stations, and industrial automation panels in both light commercial and heavy industrial settings. The extended actuator head provides additional projection from the panel face, making it practical for environments where gloved-hand operation is required or where panel space is dense.

Key Features

• Extended-type actuator profile for ease of operation with gloved hands
• 22.5 mm mounting footprint compatible with M22 series modular components
• Modular design accepts M22 series contact blocks and accessories on the rear
• Compact form factor suited for dense control panel layouts
• Lightweight construction at 0.050 pounds

Compatibility

Designed as an OEM-style replacement and standard operator component for EATON M22 series 22.5 mm modular pushbutton control station assemblies.

Installation Notes

Installation is typically performed by a licensed electrician in accordance with NEC guidelines. De-energize the control panel completely before removing or installing any operator or contact block. The operator snaps into a 22.5 mm panel cutout and should be secured with the provided mounting nut before attaching rear contact elements. Do not force contact blocks onto the operator shaft if misaligned, as this can damage the modular locking tabs.

Technical Specifications

• Actuator Type: Extended
• Mounting Diameter: 22.5 mm
• Dimensions (L x W x H): 2 inches x 2 inches x 1 inch
• Weight: 0.050 pounds
• UPC: 78668527601

Standard Information

• Brand: EATON
• Manufacturer Part Number: M22-DH-G
