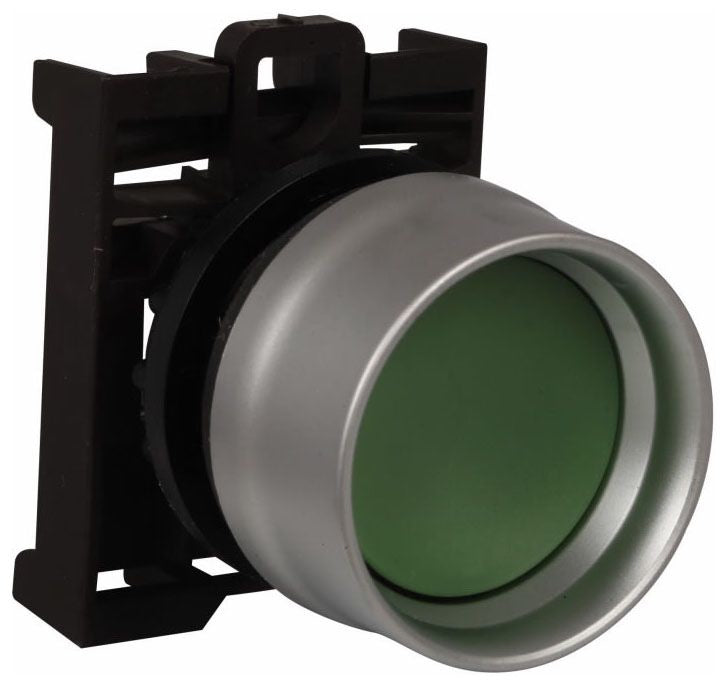

Eaton M22-DG-G 22.5mm Green Pushbutton Operator

Product Description

The EATON M22-DG-G is a 22.5 mm flush-mount momentary pushbutton operator designed for use in industrial control panel applications. This unit features a green button head and serves as the actuator component in a modular operator assembly, working in conjunction with separately mounted contact blocks to complete the control circuit. It is typically installed by licensed electricians and control panel builders who need a reliable, standardized operator for machine control, motor start circuits, or process equipment interfaces.

The M22-DG-G fits standard 22.5 mm round panel cutouts and is part of EATON's M22 modular pushbutton series. It is well-suited for use in industrial enclosures, operator stations, and control desks found in manufacturing, processing, and building automation environments. The flush-button profile reduces the risk of accidental actuation in high-traffic panel areas.

Key Features

• 22.5 mm mounting diameter fits standard round panel cutouts
• Green flush-button head for standard start or momentary-action designation
• Momentary contact action returns to neutral position on release
• Modular design accepts M22-series contact blocks mounted from the rear
• Compact operator head suitable for high-density panel layouts

Compatibility

Designed as an OEM-compatible operator head within the EATON M22 modular pushbutton series, intended for use with 22.5 mm panel cutouts and compatible M22-series contact block accessories.

Installation Notes

Installation should be performed by a qualified electrician in accordance with applicable NEC requirements and local codes. De-energize the control panel and lock out the power source before mounting or wiring any operator components. The operator head mounts through the front of the panel cutout and secures with the included retaining nut; contact blocks attach from the rear. Do not exceed the rated electrical parameters of the matched contact block assembly.

Technical Specifications

• Mounting Diameter: 22.5 mm
• Button Color: Green
• Button Style: Flush
• Actuation Type: Momentary
• Weight: 1 pound
• UPC: 78668527511

Standard Information

• Brand: EATON
• Manufacturer Part Number: M22-DG-G
