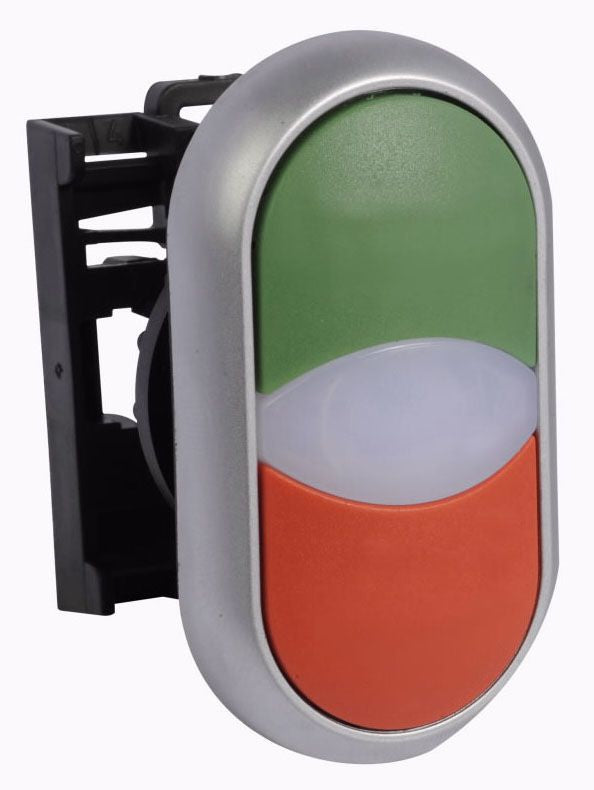

Eaton M22-DDLF-GR Flush Type Indicator Light Green

Product Description

The EATON M22-DDLF-GR is a flush-type indicator light lens and actuator designed for use with 22.5mm modular push button and pilot light assemblies. This component serves as a green flush lens for panel-mounted indicator light stations, providing visual status indication in industrial control panels and machinery enclosures. It is a front-mount accessory that snaps into a compatible M22 series base or holder, making it a field-replaceable part for maintenance electricians and panel builders working on EATON M22 series control devices.

The M22-DDLF-GR is suited for industrial and commercial applications where clear visual indication of equipment status is required. Typical installations include motor control centers, machine control panels, conveyor systems, and process equipment. The flush lens profile keeps the unit low-profile within the panel face, which reduces the risk of accidental actuation and suits environments where panel space is at a premium.

Key Features

• Flush-type lens profile minimizes protrusion from the panel face
• Green lens color for standard run, on, or safe-status indication
• Designed for 22.5mm panel cutout, compatible with M22 series modular system
• Snap-in front-mount installation for fast field replacement
• Lightweight construction at 0.05 pounds for easy handling

Compatibility

Designed as an OEM-style replacement and accessory component for 22.5mm modular indicator light and push button assemblies within the EATON M22 series platform.

Installation Notes

Installation is performed by a licensed electrician or qualified panel builder. De-energize and lock out the control panel before removing or installing any indicator light components, following NFPA 70E lockout/tagout procedures. The lens snaps into the front of a compatible M22 series holder from the panel face side and does not require tools for mounting. Verify the panel cutout diameter is 22.5mm before installation.

Technical Specifications

• Lens Type: Flush
• Color: Green
• Panel Cutout Size: 22.5mm
• Weight: 0.05 pounds
• Package Dimensions (L x W x H): 7 inches x 5 inches x 1.5 inches
• UPC: 78668527219

Standard Information

• Brand: EATON
• Manufacturer Part Number: M22-DDLF-GR
