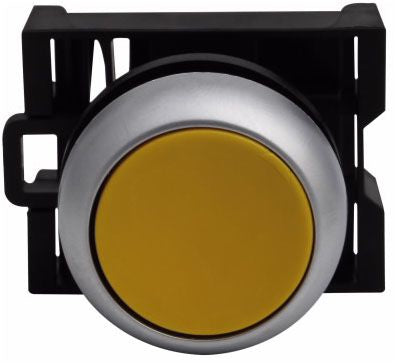

Eaton M22-D-Y Flush Push Button Actuator 22.5mm Yellow

Product Description

The EATON M22-D-Y is a flush-mount push button actuator in the M22 series, designed for use in industrial control panels and machine operator interfaces. The yellow flush-style button provides a low-profile actuation surface suitable for momentary or maintained control circuit applications. At 22.5mm in mounting diameter, it fits standard 22.5mm panel cutouts and pairs with EATON M22 series contact blocks and accessories. Weighing approximately 1 pound, this actuator is built for repeated use in demanding electrical control environments and is installed by licensed electricians and industrial control technicians.

This actuator is well suited for use in industrial machinery, HVAC control panels, pump stations, and production line equipment where a dedicated operator control point is required. The yellow color designation is commonly used to indicate caution functions or specific machine states, making it appropriate for clearly marked control stations in both light and heavy industrial applications. It mounts flush to the panel face, reducing the risk of accidental actuation.

Key Features

• 22.5mm flush-mount actuator fits standard 22.5mm panel cutouts
• Yellow button color for clear visual identification of control function
• Low-profile flush design reduces risk of unintended actuation
• Compatible with EATON M22 series modular contact block system
• Lightweight construction at approximately 1 pound

Compatibility

Designed as an OEM-style replacement or direct-fit addition for EATON M22 series 22.5mm modular push button control stations and panel assemblies.

Installation Notes

Installation should be performed by a qualified electrician in accordance with NEC requirements and applicable local electrical codes. De-energize and lockout/tagout all associated control circuits before mounting the actuator or connecting contact blocks. A standard 22.5mm punch or knockout is required for panel preparation. Do not exceed the contact block ratings specified for the mated M22 series accessories.

Technical Specifications

• Mounting Diameter: 22.5mm
• Actuator Style: Flush
• Button Color: Yellow
• Weight: 0.995 pounds
• UPC: 78668527596

Standard Information

• Brand: EATON
• Manufacturer Part Number: M22-D-Y
