Eaton M22-D-R-K01 Flush Pushbutton Operator 22.5mm Red

Product Description

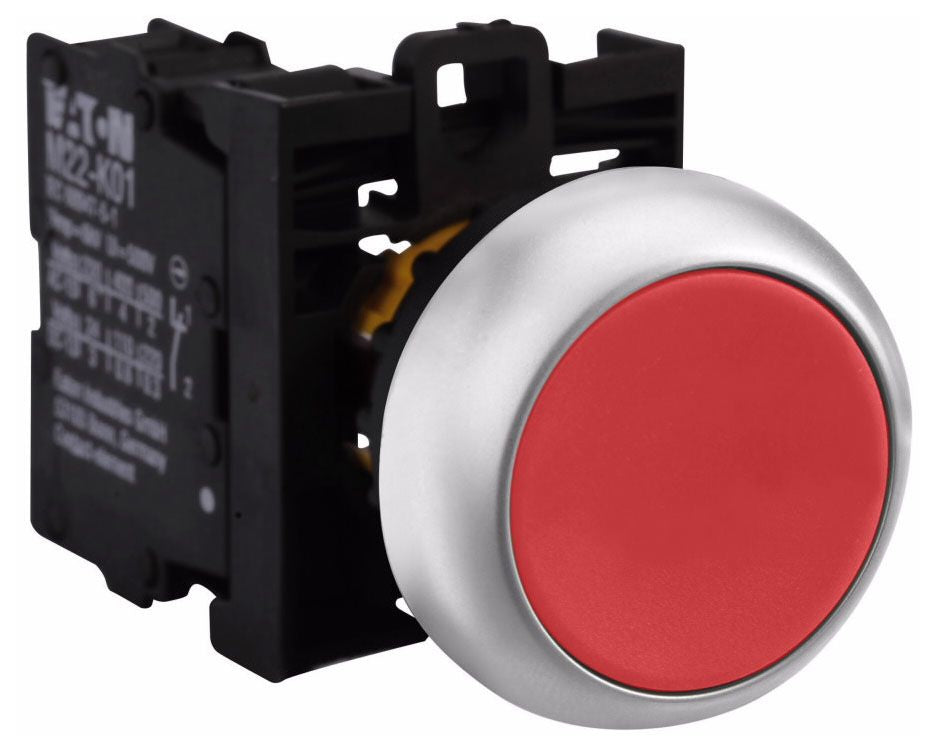

The EATON M22-D-R-K01 is a flush-type pushbutton operator designed for industrial control panel applications. Built to the 22.5mm mounting standard, this red pushbutton head mounts directly into standard cutouts on control enclosures and panel doors. It is used to actuate contact blocks in machine control, motor starter, and process control circuits. Electricians and industrial control technicians install this operator as part of a complete control station assembly. The flush-mount profile keeps the actuator recessed relative to the panel surface, reducing the risk of accidental activation in busy industrial environments.

This operator is suited for use in industrial and commercial control panels where a momentary or maintained contact function is needed at the operator level. The red color designation makes it appropriate for stop, emergency-off, or other safety-critical control functions per common panel-labeling conventions. It fits panels built to IEC and NEMA control station standards and is compatible with the EATON M22 series modular contact block system.

Key Features

• Flush-type actuator profile reduces risk of accidental activation
• 22.5mm mounting diameter fits standard IEC control panel cutouts
• Red operator color for stop or safety-function labeling
• Modular design compatible with M22 series contact blocks and accessories
• Compact footprint suits space-constrained enclosure layouts

Compatibility

Designed as an OEM-style operator for use with the EATON M22 series modular pushbutton system, fitting standard 22.5mm panel cutouts on industrial control enclosures.

Installation Notes

Installation is performed by a licensed electrician or qualified control panel technician. De-energize and lock out the control panel before removing or installing any operator or contact block. The operator installs through the front of the panel cutout and is secured from the rear before the contact block is snapped into place. Wiring of associated contact blocks should comply with applicable NEC requirements and the equipment manufacturer wiring diagrams.

Technical Specifications

• Mounting Diameter: 22.5mm
• Actuator Type: Flush
• Operator Color: Red
• Package Dimensions (L x W x H): 2 inches x 2 inches x 1 inch
• Weight: 0.05 pounds
• UPC: 78668527622

Standard Information

• Brand: EATON
• Manufacturer Part Number: M22-D-R-K01
