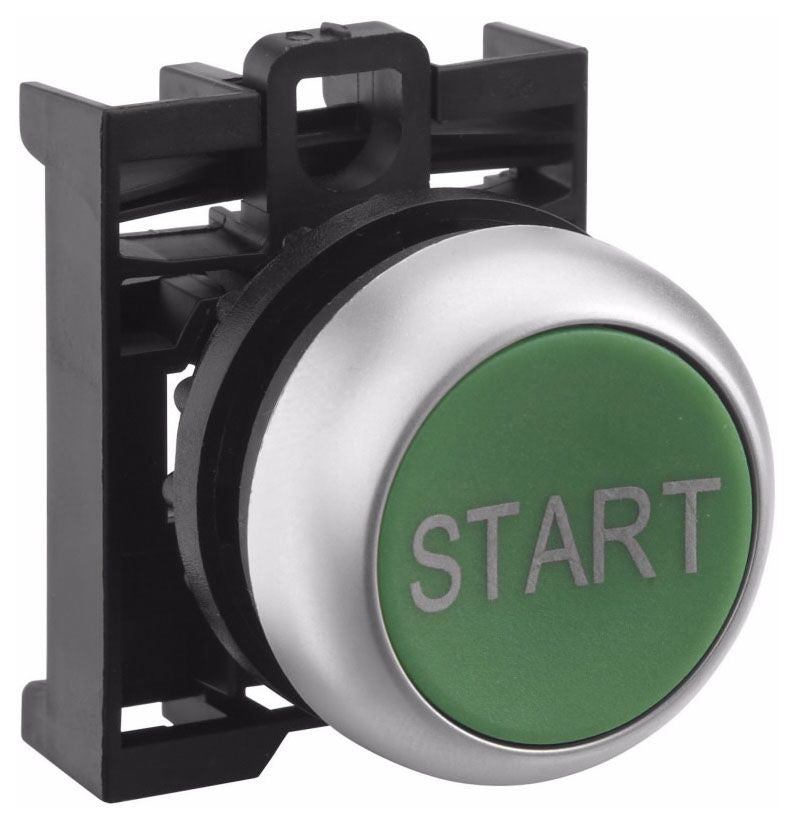

Eaton M22-D-G-GB1 Flush Pushbutton Operator 22.5mm

Product Description

The EATON M22-D-G-GB1 is a flush-style pushbutton operator designed for use in industrial and commercial control panel applications. This 22.5 mm device provides a tactile momentary actuator interface for control circuits, allowing operators to initiate or interrupt electrical signals in machine control, process automation, and motor control systems. Licensed electricians and panel builders install this type of operator as part of a larger control station assembly. Its compact flush profile keeps the button face nearly level with the panel surface, reducing the risk of accidental activation in high-traffic environments.

This operator is suited for industrial control panels in manufacturing, water treatment, HVAC equipment controls, and similar commercial applications where a 22.5 mm cutout is standard. The flush actuator style is commonly specified where panel aesthetics or accidental-contact prevention is a priority. It is installed in conjunction with compatible contact blocks and mounting adapters to complete the control station assembly.

Key Features

• Flush-type actuator profile minimizes accidental activation in busy panel environments
• 22.5 mm mounting footprint matches standard industrial panel cutout sizing
• Lightweight construction at 0.020 pounds for easy integration into compact enclosures
• Designed to pair with compatible contact blocks for a complete pushbutton station
• Suitable for machine control, process automation, and motor control circuit applications

Compatibility

Designed as an OEM-style replacement or new-installation pushbutton operator for industrial control panels requiring a 22.5 mm flush-type actuator.

Installation Notes

Installation should be performed by a qualified electrician in accordance with NEC guidelines and applicable local codes. De-energize and lock out the control panel before beginning any wiring or mounting work. The operator mounts through a standard 22.5 mm panel cutout and must be paired with a compatible contact block to complete the circuit. Do not over-tighten the mounting collar nut, as this may crack the operator body.

Technical Specifications

• Actuator Type: Flush
• Mounting Diameter: 22.5 mm
• Package Dimensions (L x W x H): 7 inches x 5 inches x 1.5 inches
• Weight: 0.020 pounds
• UPC: 78668527638

Standard Information

• Brand: EATON
• Manufacturer Part Number: M22-D-G-GB1
