Eaton M22-C1-M1H Assembled 1 Element Control Station

Product Description

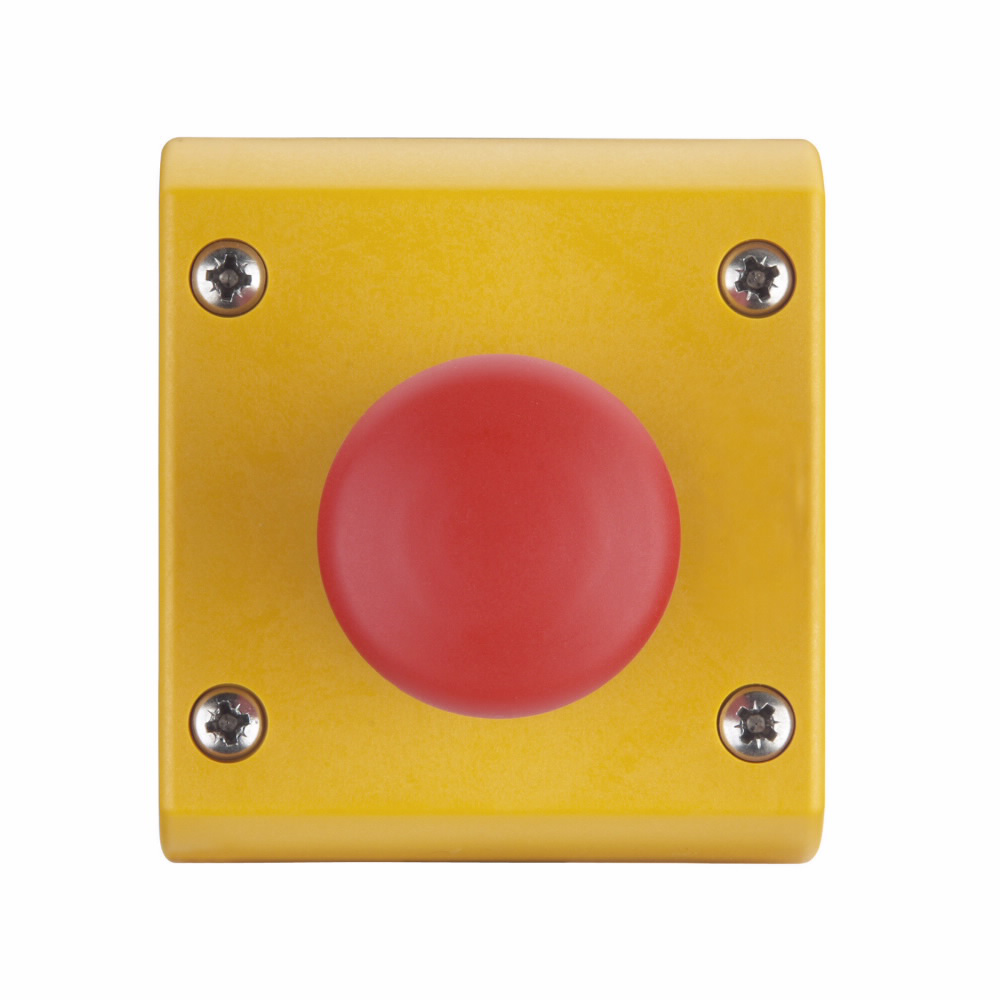

The Eaton M22-C1-M1H is an assembled one element control station designed for surface mounting. This model features a 22.5 mm size with a 40 mm push-pull mushroom head. It is a maintained, non-illuminated control station with a red button and one normally closed (1NC) contact. The unit has an IP66 rating which ensures protection from water and dust, making it suitable for harsh environments. The base is black and the enclosure is yellow, making it visible and easy to operate.

• IP66 rating for dust and water resistance
• Maintained action with a push-pull mechanism
• Designed for surface mounting in various electrical applications

Product Highlights

This control station is suitable for various electrical assemblies and panels, providing reliable operation in demanding conditions.

Product Information

Standard Information

• Product Name: Eaton M22-C1-M1H Assembled 1 Element Control Station
• Brand: Eaton

Technical Specifications

• Dimensions: 2.83 inches (length) x 3.15 inches (width) x 2.7 inches (height)
• Weight: 0.85 pounds
• Actuator Type: 40 mm push-pull mushroom head
• Material: Polycarbonate
• NEMA Rating: NEMA 4X/13, IP66
• Application: Electrical assemblies, panels, and OEMs
• Standard Approvals: UL, CSA, CE, CCC Marked
• Contact Configuration: 1NC
