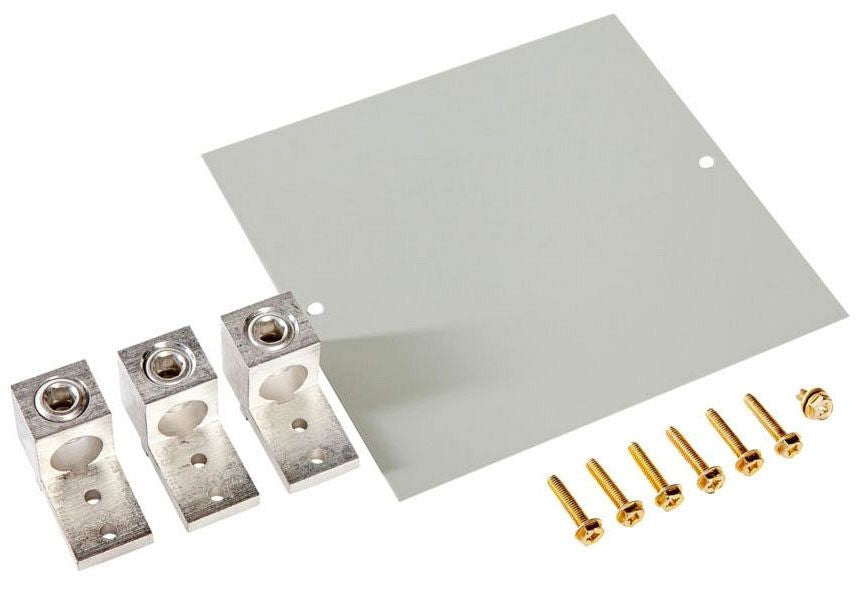

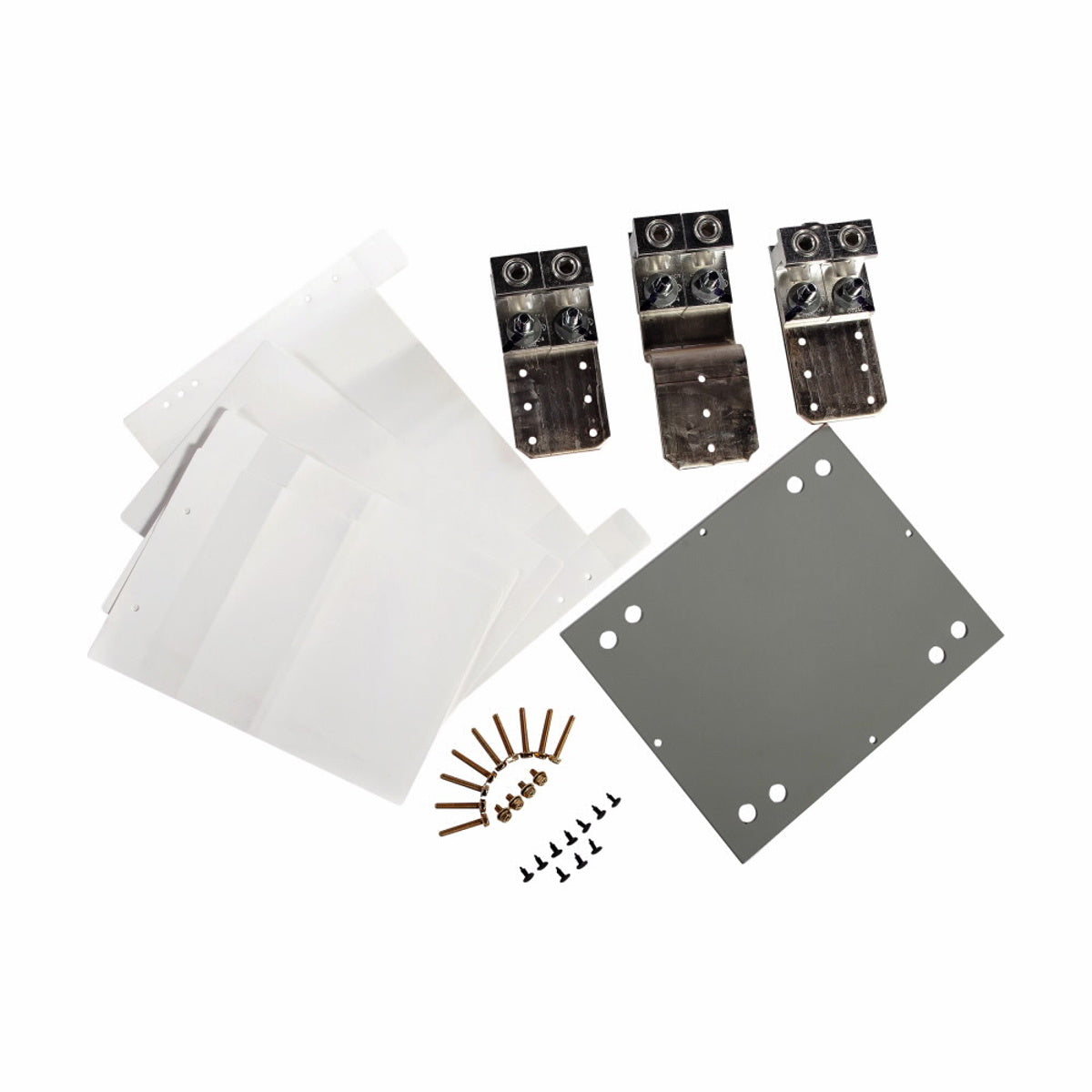

EATON LUGKIT600 KIT LUG MAIN 2AWG TO 500KCMIL 400A

Product Description

The EATON LUGKIT600 is a main lug kit designed for use with panelboards rated up to 400 amperes and compatible with conductors from two AWG to five hundred kcmil. This product helps in establishing reliable electrical connections in commercial, industrial, and data center environments.

• Conductor range of 2 AWG to 500 kcmil
• Electrical rating of 600 amps
• Designed for one- or three-phase panelboards

Product Highlights

The LUGKIT600 features a compact design and robust construction suitable for various applications in power distribution. It meets UL 67 standards and is ideal for use in electrical assemblies and OEMs.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: LUGKIT600

Technical Specifications

• Conductor Range: 2 AWG to 500 kcmil
• Electrical Ratings: 600 A
• Suitable For Use With: 400 A, 1/3-Phase Panelboard
• Dimensions: 12.4 inches (L) x 10.3 inches (W) x 4.7 inches (H)
• Weight: 7.1 lbs
