EATON LUGKIT225 KIT LUG 6TO300KCMIL 225A 6-1/2IN 8IN

Product Description

The EATON LUGKIT225 is a main/feed through lug kit designed for conductor sizes ranging from six to three hundred kcmil. This kit is suitable for use with three-phase PRL1A and PRL2A panelboards and holds a rating of two hundred twenty-five amps. The dimensions are six and one-half inches in length, eight inches in width, and four inches in height.

• Designed for conductor sizes from six to three hundred kcmil
• Rated for two hundred twenty-five amps
• Compatible with three-phase PRL1A and PRL2A panelboards

Product Highlights

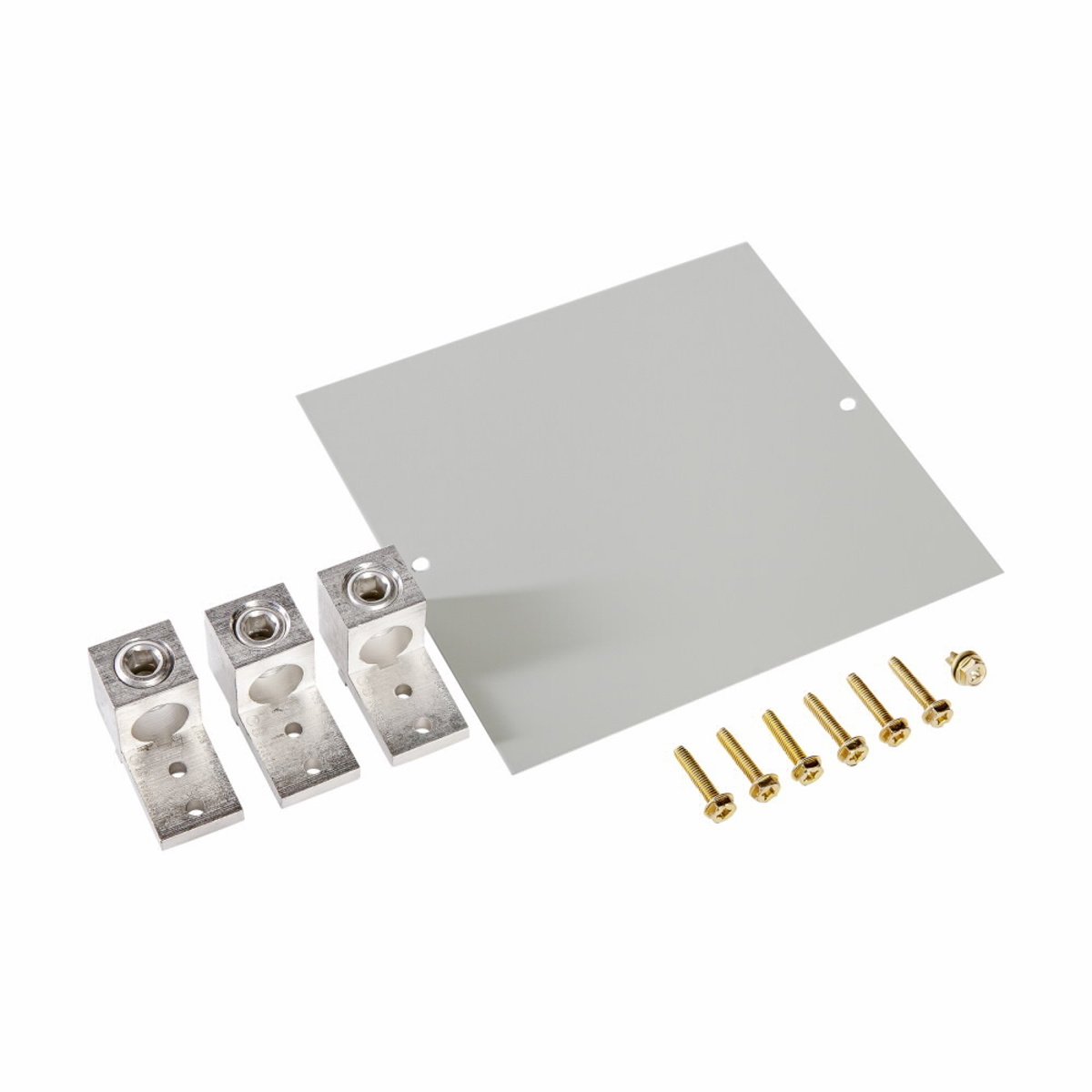

This lug kit includes three lugs, one filler cover, and various screws for installation. It is designed to meet UL 67 and NEMA PB1 standards, making it suitable for data centers, commercial, industrial, and healthcare applications.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: LUGKIT225

Technical Specifications

• Conductor Range: 6 to 300 kcmil
• Electrical Ratings: 225 A
• Height: 4-3/8 in
• Width: 8 in
• Length: 6-1/2 in
• Includes: (3) Lugs, (1) Filler Cover, (6) #10-32 x 7/8 in Screws, (2) #10-32 x 3/8 in Screws
