Eaton LTB5045 1/2 LT 45 DEG CONN

Product Description

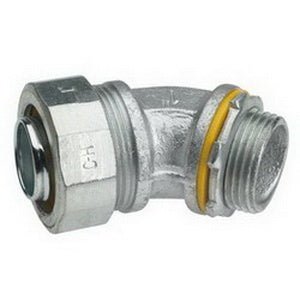

The Eaton LTB5045 is a liquidtight connector designed for use with flexible conduits. This connector features a 45-degree angle and is made from malleable iron. It offers insulation to protect against moisture and other environmental factors. It is suitable for a variety of applications, including commercial, institutional buildings, and manufacturing facilities.

• Constructed from malleable iron for durability
• 45-degree angle connection for flexible installations
• UL listed and CSA certified for safety

Product Highlights

This connector is built to withstand temperatures ranging from negative forty to eighty-five degrees Celsius.

Product Information

Standard Information

• Brand: Crouse-Hinds
• Part Number: LTB5045

Technical Specifications

• Material: Malleable Iron
• Connection Type: Threaded
• Trade Size: 0.5 inch
• Conductor Size: 14-4 AWG
• Temperature Rating: -40 to 85 degrees Celsius
• Dimensions: 2.5 inches x 1.25 inches x 2.5 inches
• Standards: UL 467, UL 514B, CSA C22.81
• Application: Suitable for use in various electrical and mechanical fields
