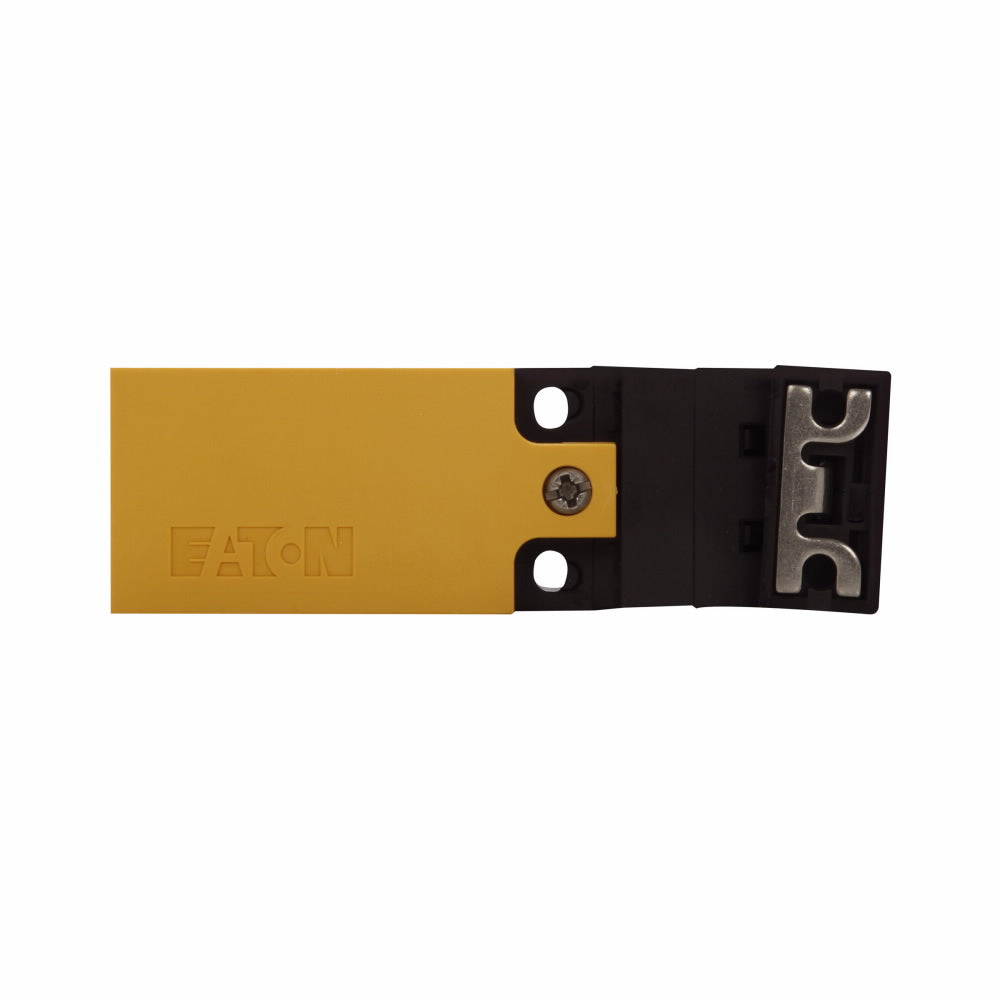

EATON LS-11-ZB Mini DIN Cabinet Door Interlock Switch with CageClamp, 1 N.O. & 1 N.C.

Product Description

The EATON LS-11-ZB is a robust Mini DIN Cabinet Door Interlock Switch, equipped with CageClamp, featuring one Normally Open (N.O.) and one Normally Closed (N.C.) contact configuration. Designed for secure operations in industrial environments, this switch ensures safety and reliability in various applications.

• IP65 rated enclosure for dust and water resistance.
• Operates between -13 to 158 degrees Fahrenheit, catering to a wide range of environmental conditions.
• Easy integration with LS-Titan Limit Switch for enhanced functionality.

Product Highlights

This interlock switch is built with a plastic body, ensuring durable performance while maintaining a light weight for easy handling and installation. It is suitable for use in automation and logic control equipment, electrical assemblies, panels, and other Original Equipment Manufacturer (OEM) applications.

Product Information

Standard Information

• Brand: EATON
• MPN: LS-11-ZB

Technical Specifications

• Connection Type: Cage Clamp
• Contact Configuration: 1NO-1NC
• Contact Rating: 6 A at 230 VAC, 3 A at 24 VDC
• Enclosure: NEMA/IP65
• Dimensions: 3.78 in L x 1.18 in W x 1.18 in H
• Temperature Rating: -13 to 158 deg F
• Standards/Approvals: UL Listed, RoHS Compliant
• Suitable For Use With: LS-Titan Limit Switch
