Eaton LR75CGN Type LR Conduit Outlet Body 2-1/2

Product Description

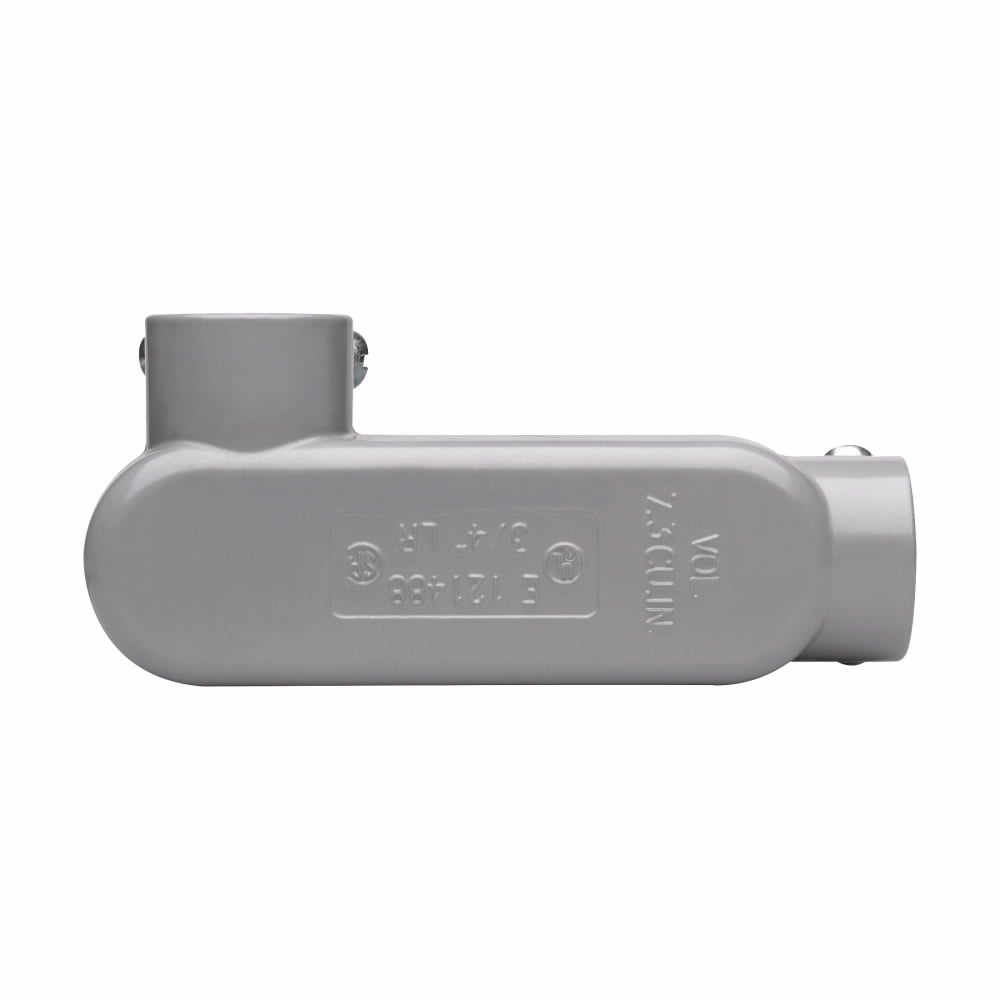

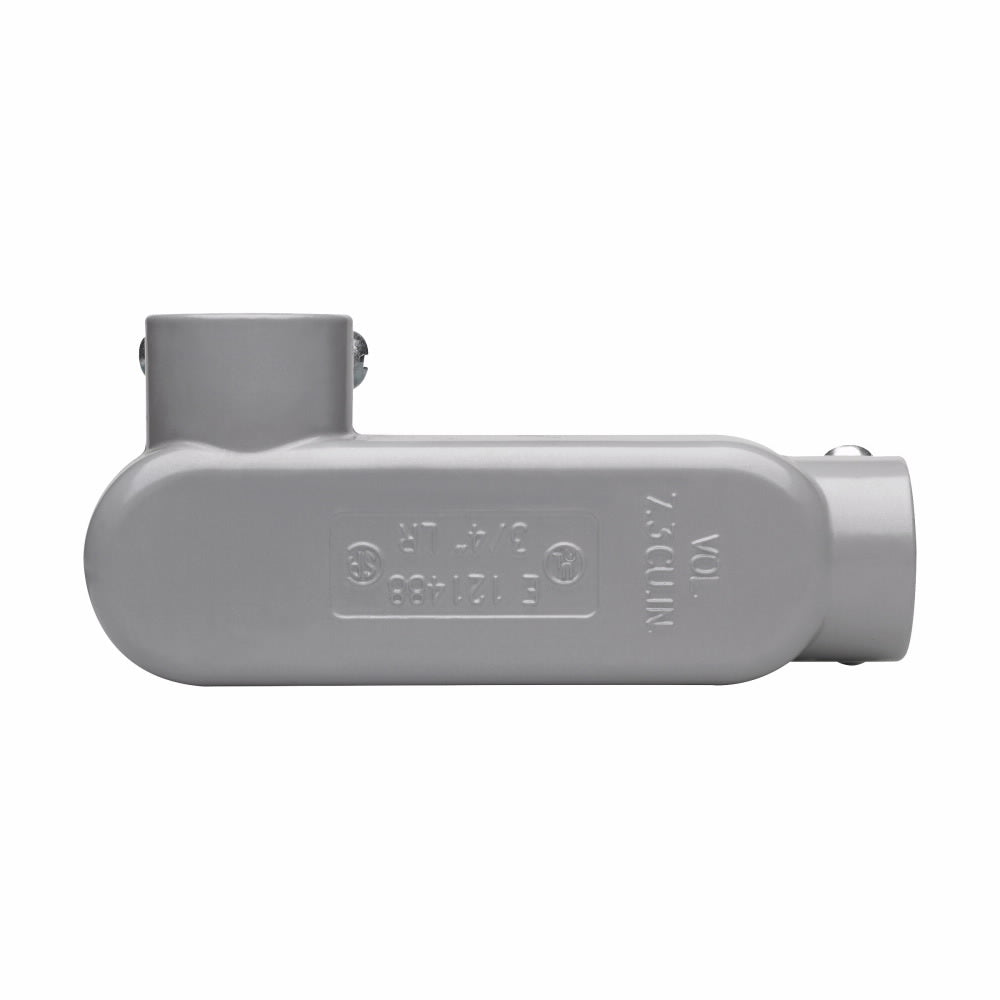

The Eaton LR75CGN is a conduit outlet body that is part of the Crouse-Hinds Condulet Series 5. It is made from die-cast copper-free aluminum, making it suitable for use with rigid or EMT conduit systems. This product is designed for commercial and institutional buildings.

• Die-cast copper-free aluminum construction
• Compatible with EMT or rigid conduit
• Threaded and set screw connection type

Product Highlights

This conduit outlet body is corrosion resistant and features a standard size hub of two and a half inches. It is suitable for a range of applications in electrical installations.

Product Information

Standard Information

• Brand: Eaton
• MPN: LR75CGN

Technical Specifications

• Material: Die Cast Copper Free Aluminum
• Application: For rigid/IMC/EMT conduit systems and commercial, institutional buildings and structures
• Color: Gray
• Connection Type: Threaded / Set Screw
• Hub Size: 2-1/2 inches
• Dimensions: 13.14 inches L x 6 inches W x 4 inches H
• Finish: Epoxy Powder Coated
• Standards/Approvals: UL Listed, cUL Listed
