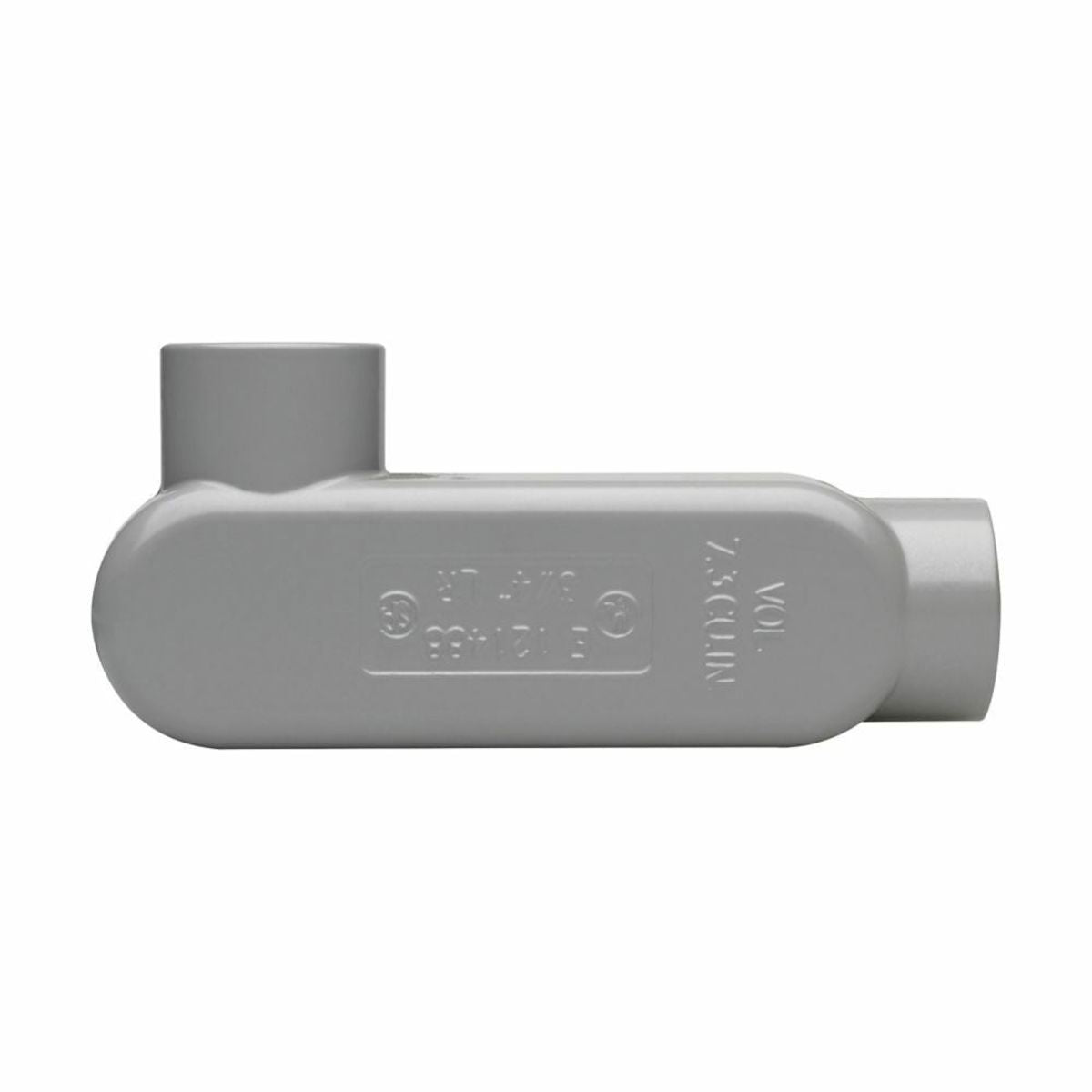

Eaton LR65MT Eaton Crouse-Hinds Condulet Series 5 Conduit Outlet Body, 2 in Hub, Type LR, Copper-Free Aluminum

Product Description

Eaton Crouse-Hinds Division presents the LR65MT Conduit Outlet Body. This outlet body is constructed from copper-free aluminum for durability and corrosion resistance. It is designed for use with rigid and EMT conduit with threaded or set screw connections.

• Compatible with rigid and EMT conduit
• Provides openings for splices and taps in conductors
• Available with two hubs for flexibility

Product Highlights

The Eaton LR65MT Conduit Outlet Body is suitable for commercial and institutional applications. Its design allows for easy installation and maintenance of electrical conduits.

Product Information

Standard Information

• Brand: Eaton
• Manufacturer: Eaton Crouse-Hinds

Technical Specifications

• Catalog Number: LR65MT
• Material: Die Cast Copper Free Aluminum
• Dimensions: Nine point eight eight inches by three point eight three inches by three point four one inches
• Hub Size: Two inches
• Connection Type: Threaded/Set Screw
• Finish: Epoxy Powder Painted
• Special Features: Corrosion Resistant
• Capacity: Sixty nine point seven cubic inches
• Application: For use with rigid, IMC, and EMT conduit, acting as pull outlets for conductors
• Standards: UL, CUL, RoHS Compliant
