Product Description

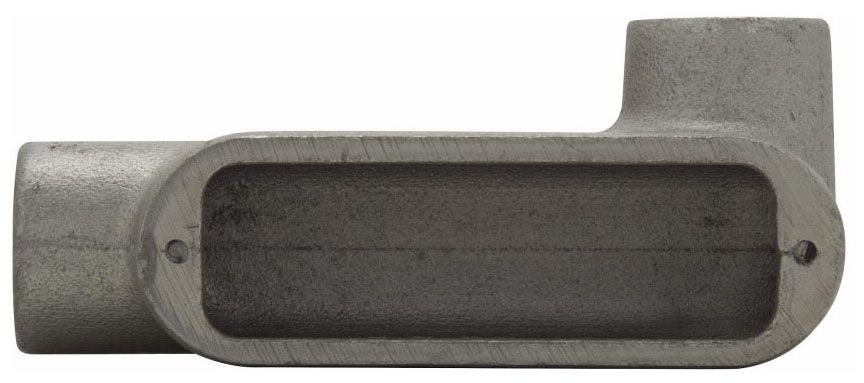

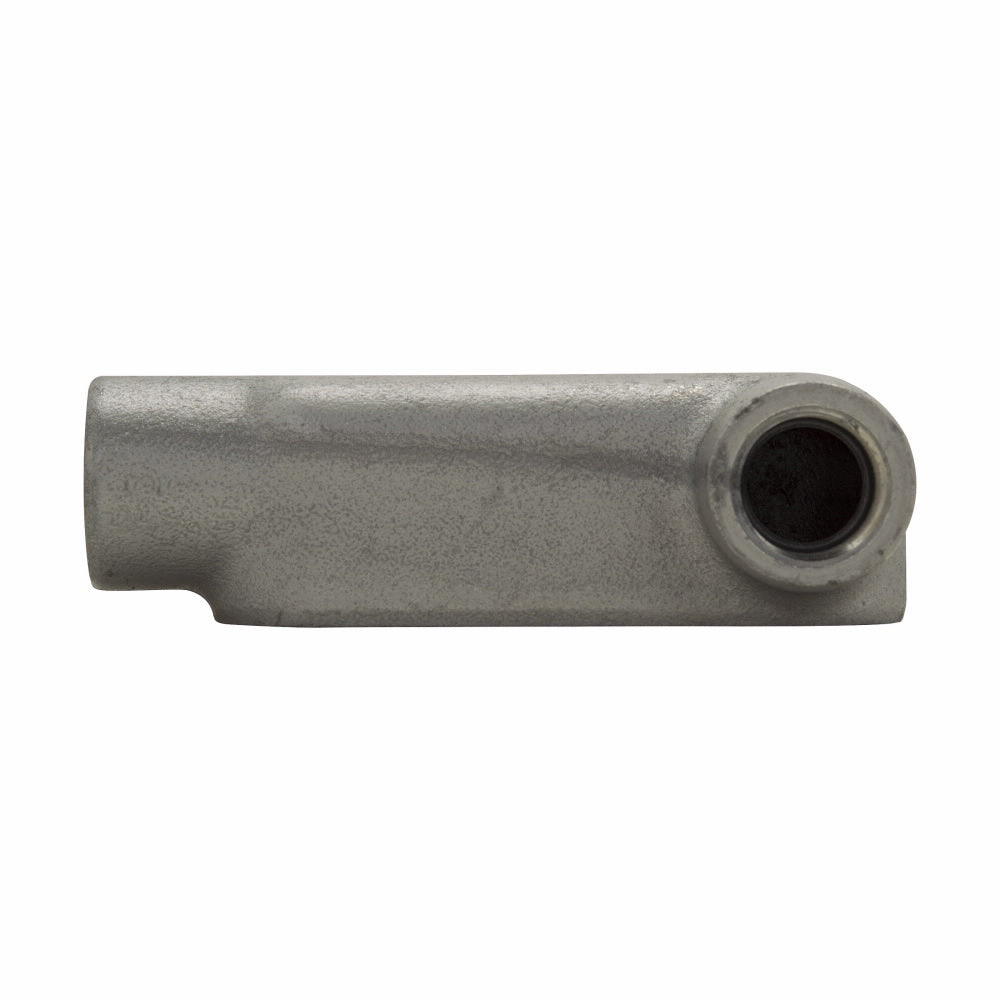

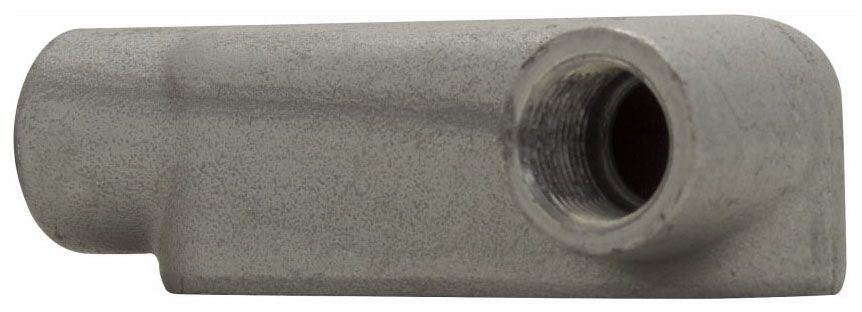

The EATON LR58 Crs-H Lr58 1 1/2 Lr Form 8 Cndt Body is a conduit body with a right side access opening and LR configuration. Constructed from electrogalvanized aluminum acrylic painted Feraloy iron alloy, it features a screw-on cover. It has a 90-degree hub location, two 1-1/2 inch hubs, and is designed for threaded or set screw installation. It is UL 514B and CSA 22.2 approved and used on rigid conduit.
- Features a right side access opening and LR configuration.
- Constructed from electrogalvanized aluminum acrylic painted Feraloy iron alloy.
- Approved by UL 514B and CSA 22.2 for use with rigid conduit.
Product Highlights
Conduit body with electrogalvanized aluminum acrylic painted Feraloy iron alloy construction, designed for rigid conduit applications.
Product Information
Standard Information
-
Brand: EATON
-
Manufacturer Part Number: LR58
-
Country of Origin: USA
Technical Specifications
-
Access Opening: Right Side
-
Configuration: LR
-
Cover Type: Electrogalvanized Aluminum Acrylic Painted Feraloy Iron Alloy, Screw-On
-
Hub Location: 90 Deg
-
Number of Hubs: 2
-
Hub Size: 1-1/2 Inch
-
Installation: Threaded, Set Screw
-
Material: Electrogalvanized Aluminum Acrylic Painted Feraloy Iron Alloy (Body), Solid Neoprene (Gasket), Stainless Steel (Screw)
-
Form Type: Form 8
-
Approval: UL 514B, CSA 22.2
-
Used On: Rigid Conduit
-
Applicable Standard: Federal Specification WC-586D
-
Connection Type: Thread
-
Finish: Aluminum Acrylic Painted/Electro-Galvanized
-
Standards/Approvals: UL 514B|CSA C22.2 No. 18|Federal Specification W-C-586D|NEC Compliant|CEC Certified
-
Type: Type LR
-
Enclosure Rating: NEMA 3R/12
-
Application: For rigid conduit, act as pull outlets for conductors being installed, provide openings for making splices and taps in conductors and industrial facilities and factories
-
Product Type: Conduit outlet body
-
Area classification: Ordinary/Non-Hazardous Locations
-
Standards type: NEC/CEC
-
NEMA Rating: 12
-
Shape: LR
-
Trade Size: 1-1/2 in.
