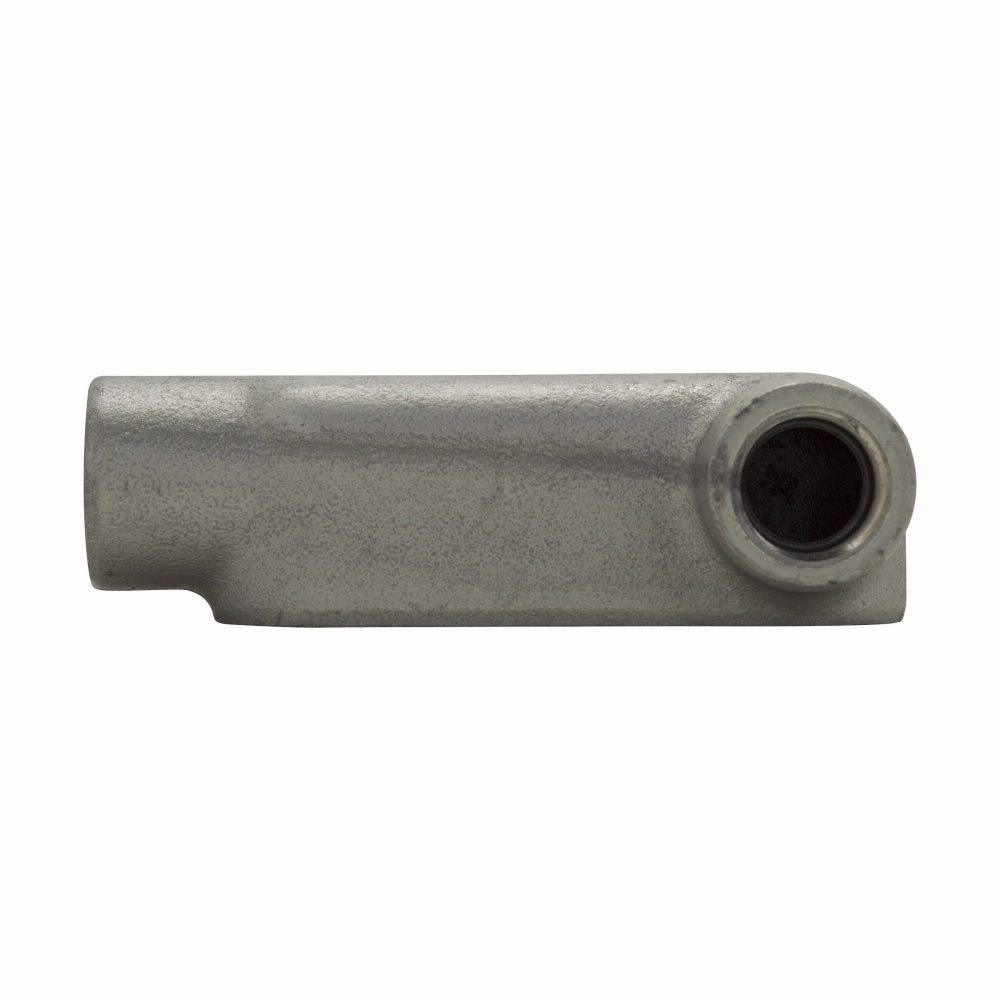

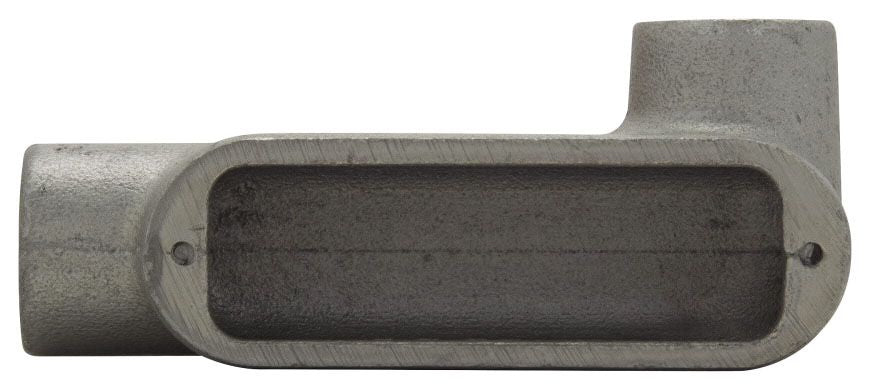

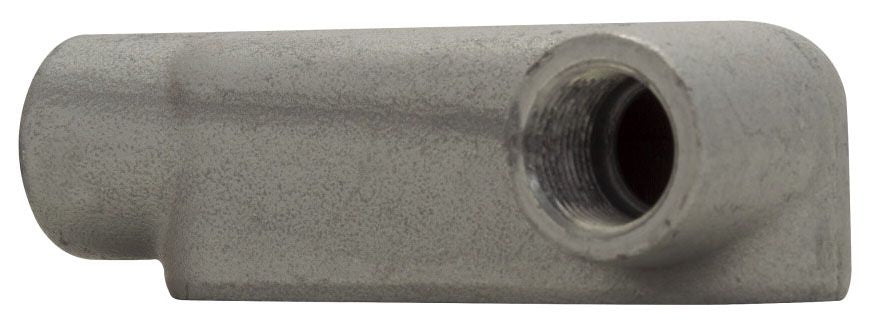

Eaton LR28 Crs-H Lr28 3/4 Lr Form 8 Cndt Body

Product Description

The EATON LR28 conduit body provides access for splices and taps in conductors. Featuring a Form 8 configuration and LR shape, this conduit body has a 3/4 inch hub size and two hubs. It is constructed from electrogalvanized aluminum acrylic painted Feraloy iron alloy.

• Access opening on the right side
• Used on rigid conduit
• Hubs are located at a 90-degree angle

Product Highlights

Provides access to conductors, connects conduit sections, and allows for 90-degree bends in conduit runs.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: LR28
• Country of Origin: USA

Technical Specifications

• Configuration: LR
• Cover Type: Electrogalvanized Aluminum Acrylic Painted Feraloy Iron Alloy, Screw-On
• Hub Location: 90 Deg
• Number of Hubs: 2
• Hub Size: 3/4 Inch
• Installation: Threaded, Set Screw
• Material: Electrogalvanized Aluminum Acrylic Painted Feraloy Iron Alloy (Body), Solid Neoprene (Gasket), Stainless Steel (Screw)
• Form Type: Form 8
• Approval: UL 514B, CSA 22.2
• Used On: Rigid Conduit
• Applicable Standard: Federal Specification WC-586D
• Application: For providing openings for making splices and taps in conductors, connecting conduit sections and rigid conduit, industrial facilities and factories
• Connection Type: Thread
• Enclosure: NEMA 3R
• Finish: Aluminum Acrylic Painted/Electro-Galvanized
• Standards/Approvals: UL 514B|CSA C22.2 No. 18|Federal Specification W-C-586D
• Type: Type LR
• Product Type: Conduit outlet body
• Area classification: Ordinary/Non-Hazardous Locations
• Standards type: NEC/CEC
• NEMA Rating: 12
• Shape: LR
• Trade size: 3/4"
• Enclosure Rating: NEMA 3R/12
