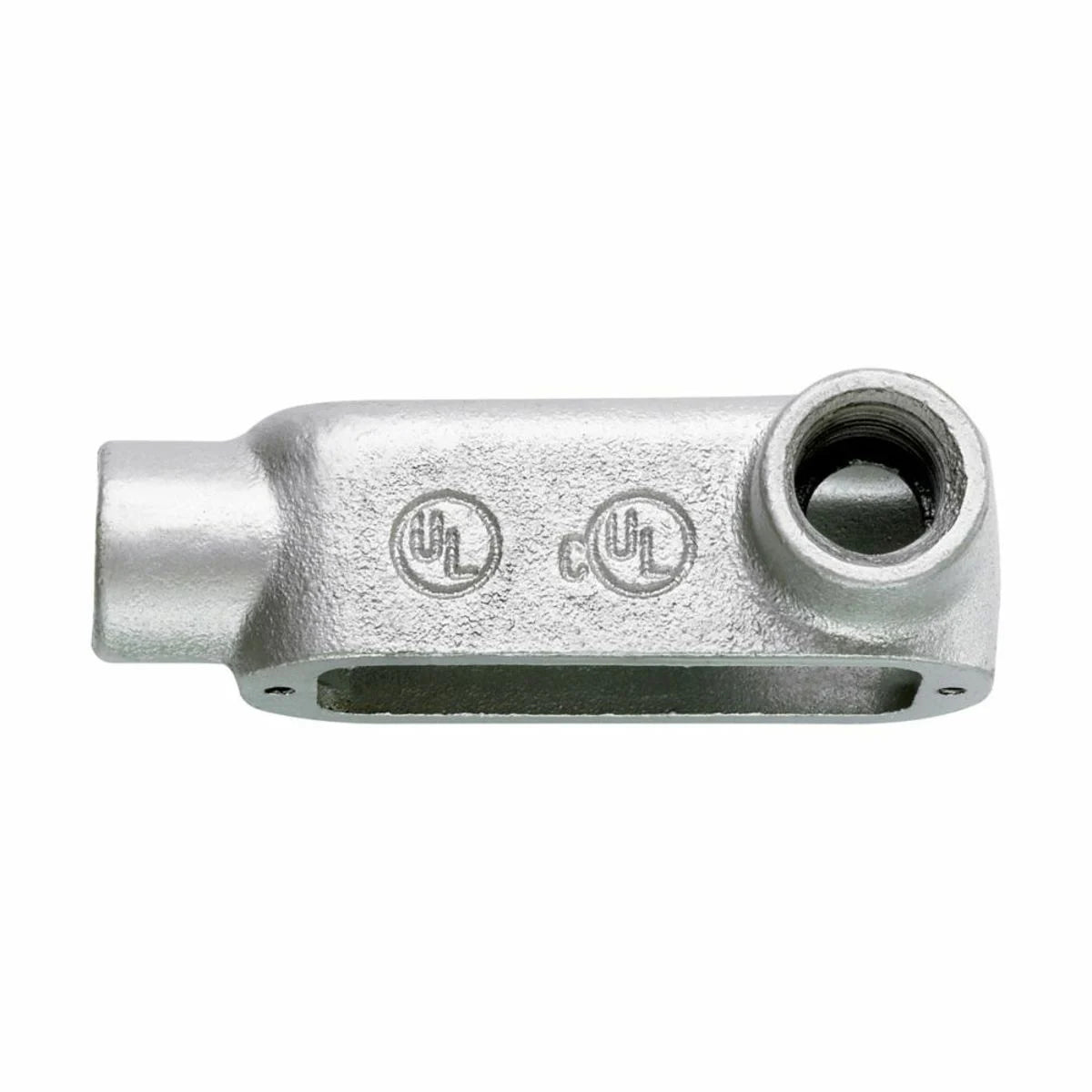

Eaton LR150MCG Crouse-Hinds Series Condulet Form 5 Conduit Outlet Body Malleable Iron 1-1/2 in

Product Description

Eaton LR150MCG is a conduit outlet body made from malleable iron. It is part of the Crouse-Hinds series and is designed for use in threaded rigid conduit systems. This body can serve as a pull outlet for conductors, provide openings for making splices and taps, make 90-degree bends in conduit runs, and allow access for maintenance and future changes.

• Constructed from durable malleable iron
• Rated for NEMA 4 applications
• Compatible with Appleton Form 35 conduit bodies

Product Highlights

This conduit body is suitable for commercial and institutional buildings. It features built-in rollers for easier wire pulling and solid neoprene gaskets that can be converted to an open type. The integral bushings protect wire insulation and help maintain system integrity.

Product Information

Standard Information

• Application: Rigid conduit, serves as pull outlets and provides openings for splices
• Connections: Threaded

Technical Specifications

• Catalog Number: LR150M CG
• Manufacturer: Eaton Crouse-Hinds
• Enclosure: NEMA 4
• Dimensions: Eight point one two inches L x two point eight three inches W x three point five inches H
• Hub Size: One and one half inches
• Material: Malleable Iron
• Number of Hubs: Two
• Finish: Electro-galvanized, Aluminum acrylic painted
