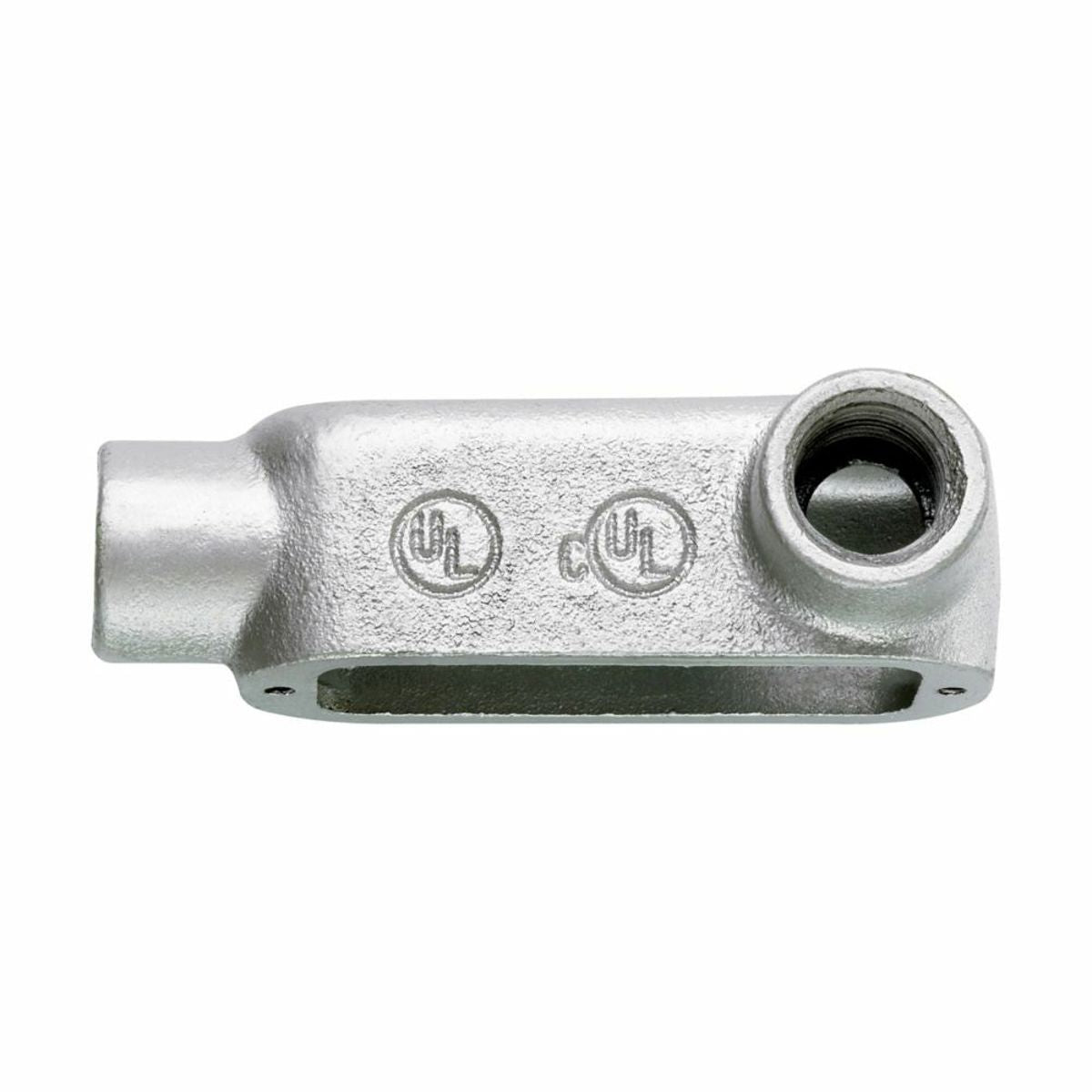

Eaton LR100MCG Conduit Outlet Body with Cover and Neoprene Gasket 1 in Hub Type LR

Product Description

The Eaton LR100MCG Conduit Outlet Body is designed for use in conduit systems. Made from malleable iron, this product provides a durable option for electrical installations. It serves as a pull outlet for conductors and allows for splices and taps, while also accommodating 90-degree bends in conduit runs.

• Malleable iron construction for durability
• 1 inch hub for easy installation
• NEMA 4 enclosure for environmental protection

Product Highlights

This conduit outlet body features a SnapPack design, which includes a neoprene gasket for secure sealing and ease of use during installations.

Product Information

Standard Information

• Manufacturer: Eaton Crouse-Hinds
• Brand: Eaton

Technical Specifications

• Catalog Number: LR100M CG
• Material: Malleable Iron
• Hub Size: 1 inch
• Dimensions: 6.20 inches L x 2.65 inches W x 1.90 inches H
• Application: Commercial and institutional buildings
• Finish: Electrogalvanized with aluminum acrylic paint
• Standards: UL 514B, CSA C22.2, CUL
