Eaton LPS-RK-3SP BUS 600V Dual Elem ATSDE3R

Product Description

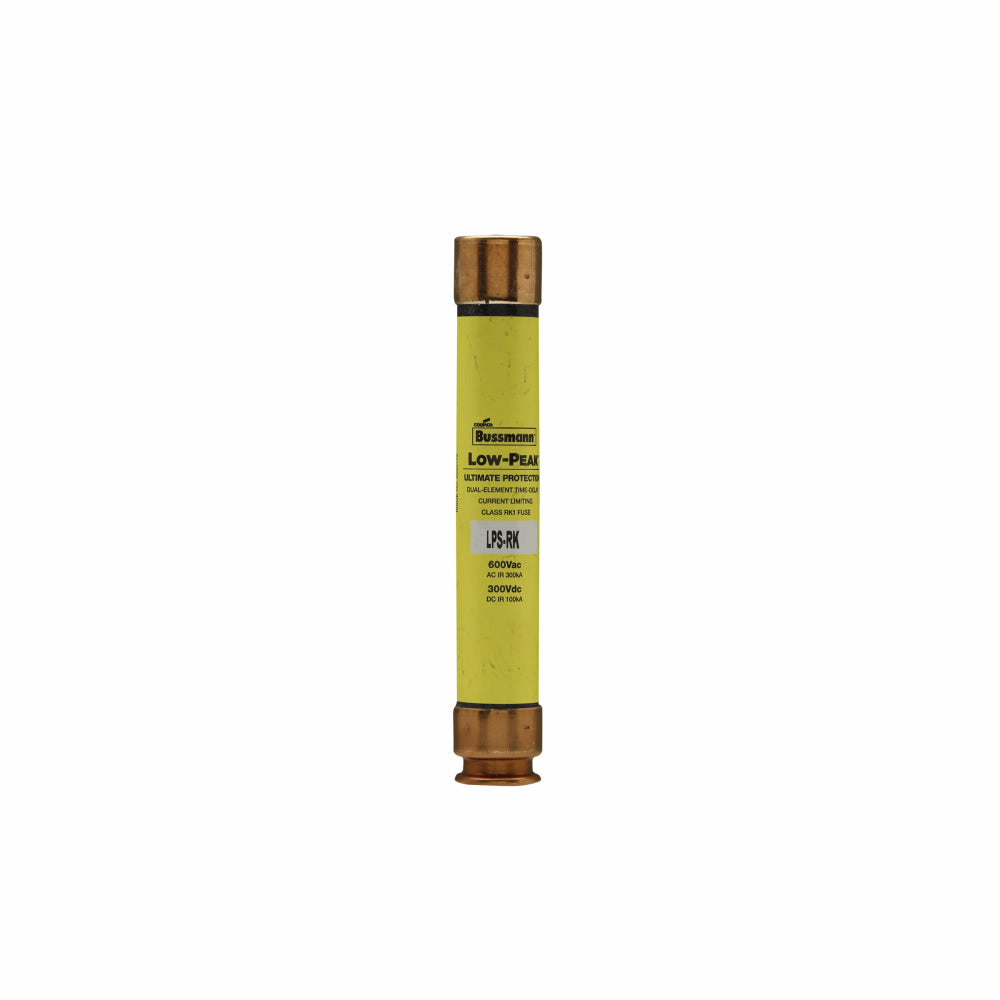

The Eaton Low-Peak LPS-RK-3SP is a current limiting time delay fuse rated for three amps. It operates at 600 volts AC and 300 volts DC. This fuse is part of the RK1 class and offers advanced protection against overcurrent conditions. The dual-element design allows for fast response to short circuits while providing time delay features for inrush loads.

• Three amp rating suitable for various applications
• Fast short circuit protection with a time delay response
• Fits cartridge holders with a diameter of zero point eighty-one inches

Product Highlights

This fuse can be used in industrial settings, including motor control centers and power panelboards, ensuring the safety of downstream components.

Product Information

Standard Information

• Manufacturer: Eaton
• UPC: 05171254818

Technical Specifications

• Amperage Rating: 3 A
• Voltage Rating: 600 VAC / 300 VDC
• Interrupt Rating: 300/100 kAIC
• Response Time: 8 seconds at 500%
• Body Size: 0.81 in Dia x 5 in L
• Body Type: Cartridge
• Element: Dual
• Material: Melamine
• Mounting Type: Holder
• Indicating: Non-Indicating
• Rejection Type: Rejection
• Class: RK1
