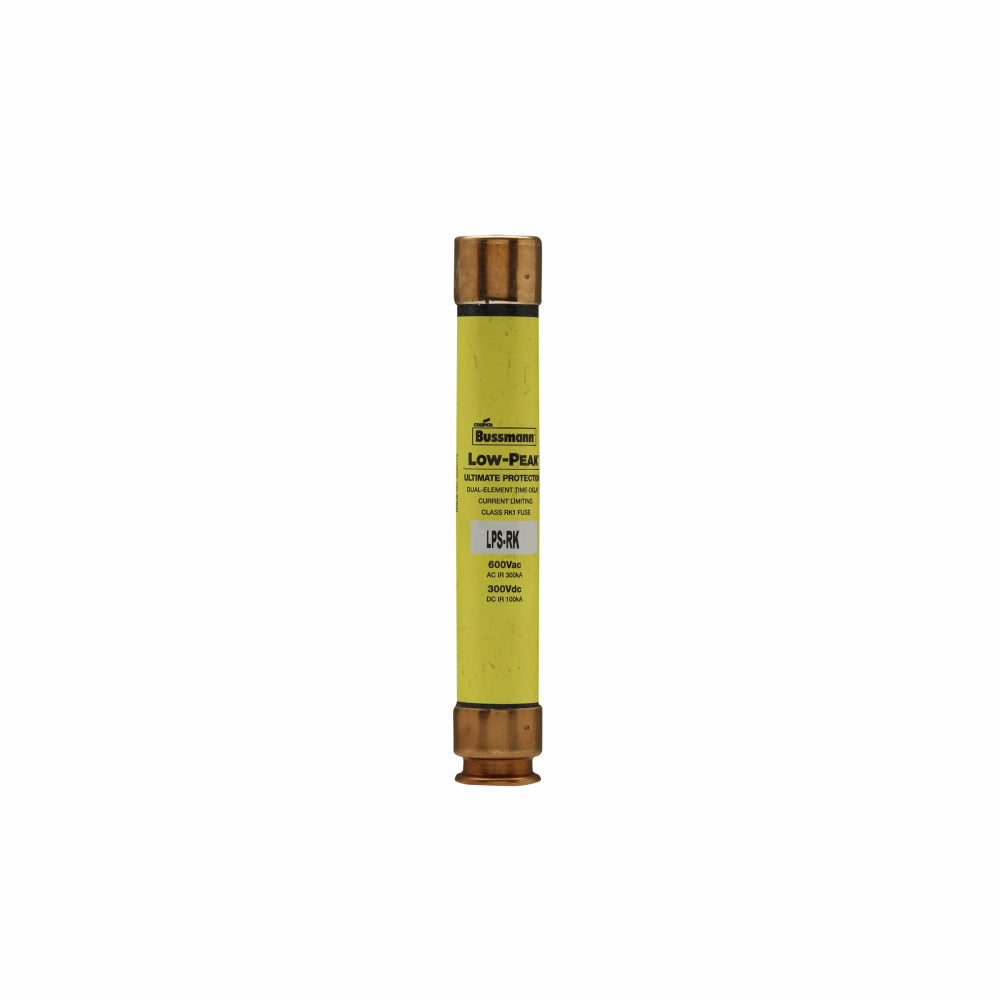

EATON LPS-RK-30SP Low-Peak Time Delay Fuse 30A 600VAC/300VDC Class RK1 Dual Element

Product Description

The EATON LPS-RK-30SP Low-Peak Time Delay Fuse offers robust circuit protection with its 600 VAC/300 VDC voltage rating and dual-element design, ensuring safe operation in electrical setups. Ideal for industrial facilities and demanding electrical applications.

• High interrupt rating of 300 kA at 600 VAC ensures protection against excessive currents.
• Time delay of 8 seconds at 500% allows for better handling of transient surges.
• Dual-element construction provides both fast protection and time-delayed tripping.

Product Highlights

This fuse's cylindrical melamine body and ferrule end terminals provide a reliable and secure fit into holders. It's designed to meet rigorous industrial standards, including CE, CSA, and UL certifications.

Product Information

Standard Information

• Brand: EATON
• MPN: LPS-RK-30SP
• Category: Fuses, Blocks & Holders

Technical Specifications

• Amperage Rating: 30A
• Voltage Rating: 600 VAC/300 VDC
• Interrupt Rating: 300 kA at 600 VAC, 100 kA at 300 VDC
• Fuse Size: 0.81 in dia x 5 in L
• Terminal Type: Ferrule End Terminal
• Mounting Type: Holder Mount
• Body Material: Melamine
• Standards/Approvals: CE Certified, CSA C22.2 File No.53787/248.12, UL File No.E4273 Guide JFHR/JDDZ
