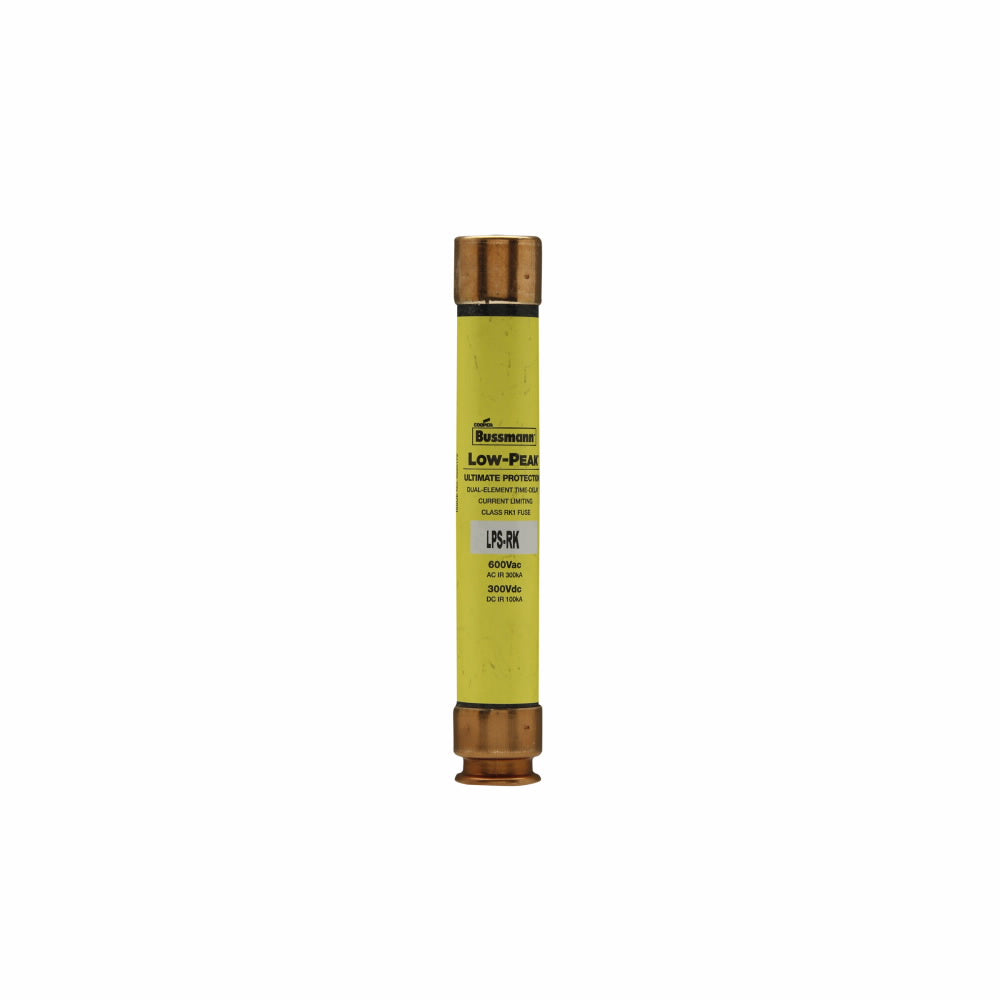

Eaton LPS-RK-3-1/2SP Low Peak Dual Element Fuse 3.5 A (0.81 in x 5.00 in)

Product Description

The Eaton LPS-RK-3-1/2SP is a Bussmann Low Peak time-delay, dual-element, current-limiting fuse rated 3.5 A for 600 Vac and 300 Vdc systems. It provides high interrupting capacity (300 kA at 600 Vac, 100 kA at 300 Vdc) with ferrule end terminals on a 0.81 in diameter by 5.00 in cartridge body and an approximate 10 second response at 500% of rated current. Typical applications include distribution switchboards, panelboards and motor control centers.

• Time-delay, dual-element, current-limiting design rated 3.5 A for 600 Vac / 300 Vdc
• High interrupting rating: 300 kA at 600 Vac; 100 kA at 300 Vdc; ferrule end x ferrule end connections
• Cartridge size 0.81 in diameter x 5.00 in length; approximately 10 seconds response at 500% rated current

Product Highlights

Class RK1 Low-Peak fuse for distribution switchboards, panelboards, motor control centers and machinery disconnect switches.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: LPS-RK-3-1/2SP
• Country of Origin: Mexico

Technical Specifications

• Brand: Eaton
• Manufacturer: Bussmann Mfg.
• Manufacturer Part Number: LPS-RK-3-1/2SP
• Series: LPS-RK
• Sub Brand: Low-Peak
• Fuse Class: RK-1
• Fuse Type: Time-delay, dual-element, current-limiting
• Element: Dual
• Amperage Rating: 3.5 A
• Voltage Rating: 600 Vac / 300 Vdc
• Interrupting Rating: 300 kA at 600 Vac; 100 kA at 300 Vdc
• Response Time: Approximately 10 seconds at 500% rated current
• Connection Type: Ferrule end x ferrule end
• Terminal Type: Ferrule end
• Size (Diameter x Length): 0.81 in x 5.00 in
• Body Type: Cartridge
• Body Material: Melamine
• Mounting Type: Holder
• Indication: Non-indicating
• Standards/Approvals: UL; CSA C22.2; CE
• Applications: Large distribution switchboards; power panelboards; motor control centers; machinery disconnect switches; feeder and branch circuits; motors; transformers; solenoids; general purpose circuits
• Pack Quantity: 10
• Weight: 0.1250 lb
