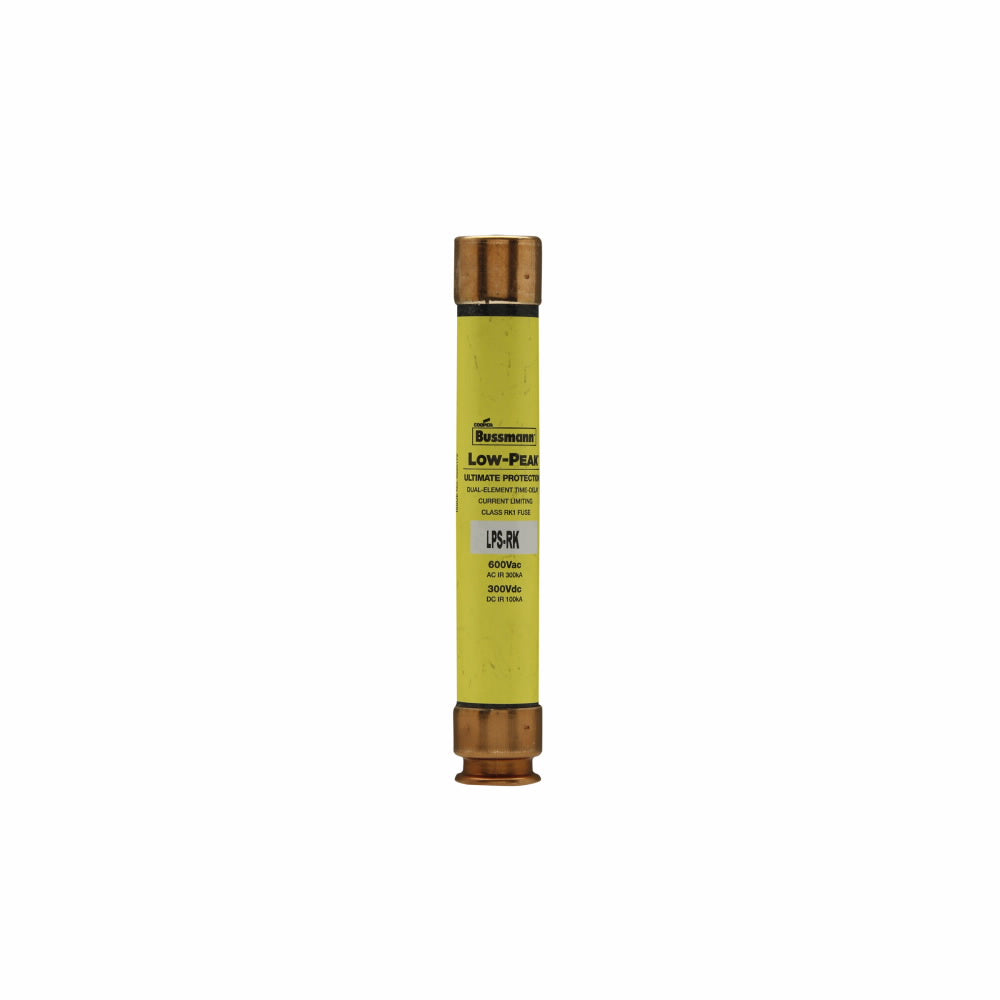

Eaton LPS-RK-2SP LPSRK2SP BUS 600V RK1 TD FUSE (1)

Product Description

The Eaton LPS-RK-2SP is a Bussmann Low-Peak fuse designed for current limiting time delay applications. It operates at two amperes with a voltage rating of six hundred volts AC and three hundred volts DC. This fuse is classified as RK1, providing fast response and effective protection for equipment.

• Current limiting time delay feature for safe operations.
• Protected against thermal and magnetic effects of short circuits.
• Suitable for industrial facilities and motor control applications.

Product Highlights

This fuse helps reduce the risk of damage to connected equipment during overloads or short circuits. Its dual-element design ensures improved response times for electrical systems.

Product Information

Standard Information

• Amperage Rating: 2 A
• Voltage Rating: 600 VAC/300 VDC

Technical Specifications

• Body Size: 0.81 inches Dia x 5 inches L
• Body Type: Cartridge
• Class: RK1
• Element: Dual
• Material: Melamine
• Mounting Type: Holder
• Response Time: 8 seconds at 500%
• Terminal Type: Ferrule End
• Rejection Type: Rejection
• Standards/Approvals: CE Certified, CSA C22.2, UL File No.E56412
