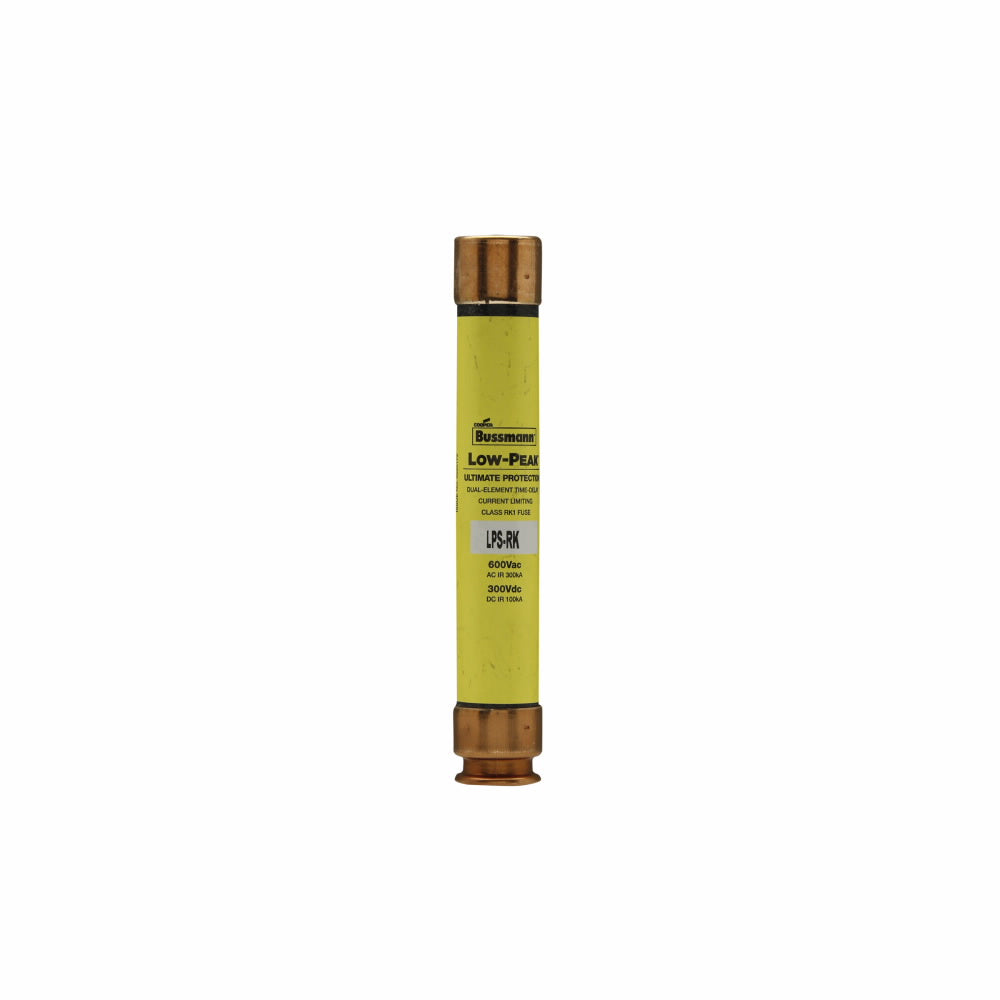

Eaton LPS-RK-2-1/4SP BUSS 600V RK1 TD FUSE (1)

Product Description

The Eaton LPS-RK-2-1/4SP is a Bussmann Low-Peak fuse designed for current limiting time delay applications. With an amperage rating of 2.25 A, it operates at 600 VAC and 300 VDC. This fuse offers a 300/100 kAIC interrupt rating and is classified under RK1. It provides reliable protection in various industrial settings.

• Current limiting dual-element design
• Non-indicating and rejection type fuse
• Ferrule end terminal with holder mount type

Product Highlights

This fuse is ideal for facilities such as industrial and safety systems, offering fast short circuit protection and reducing damage from overloads. It is also suitable for motor control centers, distribution switchboards, and machinery disconnects.

Product Information

Standard Information

• Manufacturer: Eaton
• UPC: 05171254815

Technical Specifications

• Amperage Rating: 2.25 A
• Voltage Rating: 600 VAC/300 VDC
• Body Size: 0.81 inches Diameter x 5 inches Length
• Body Type: Cartridge
• Response Time: 8 seconds at 500%
• Material: Melamine
• Application: Industrial facilities, safety systems, power panelboards
• Standards/Approvals: CE Certified, CSA, UL
