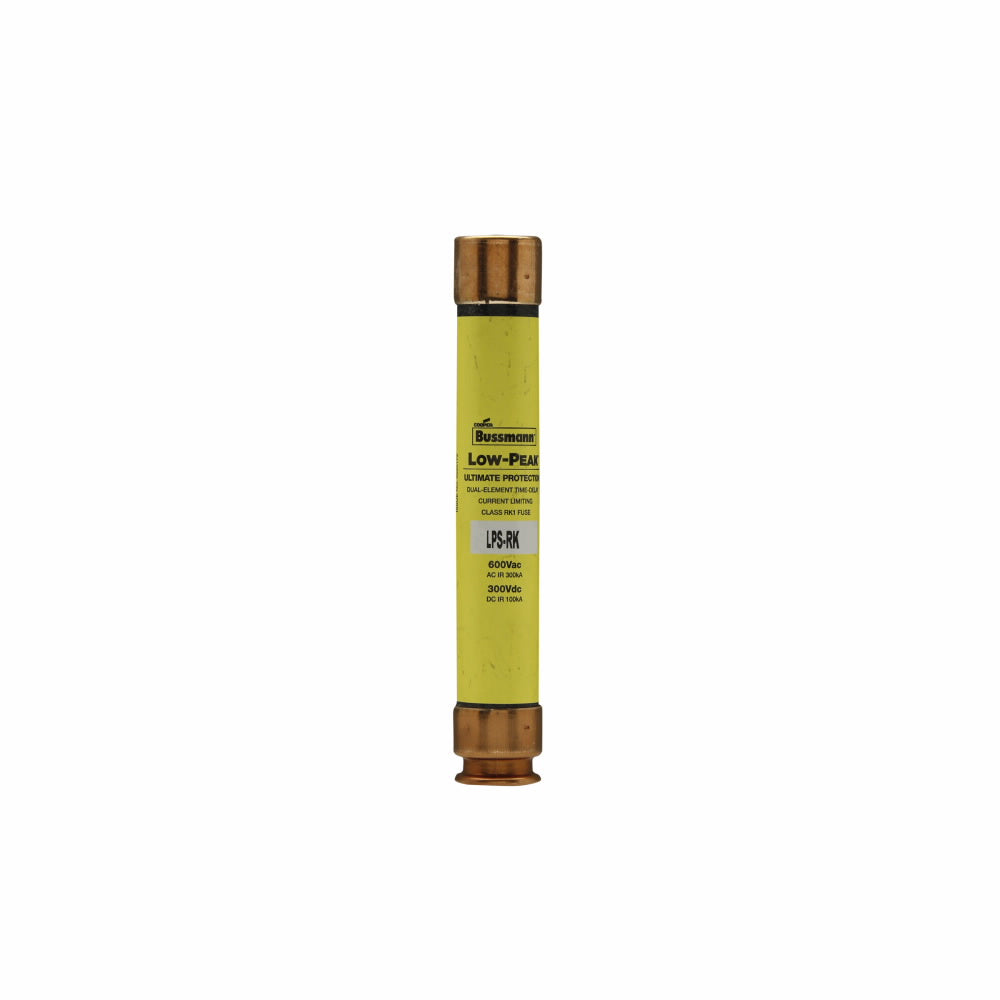

Eaton LPS-RK-2-1/2SP Bussmann Series Low Peak Dual Element Fuse

Product Description

The Eaton Bussmann Series LPS-RK-2-1/2SP bus fuse is a dual element fuse designed to provide reliable overcurrent protection. It has a time delay function which allows temporary overcurrent conditions. This fuse operates under specific voltage ratings of up to 600 VAC and 300 VDC.

• Current limiting feature protects sensitive equipment
• Size: 0.81 inches in diameter by 5.00 inches in length
• Rated for 2.5 amps with an interrupt rating of 100 kAIC at 300 Vdc and 300 kAIC at 600 V

Product Highlights

The LPS-RK-2-1/2SP fuse is suitable for large distribution switchboards, power panelboards, and motor control centers, ensuring safety and compliance with standards.

Product Information

Standard Information

• Brand: Eaton
• Manufacturer: Bussmann Mfg.

Technical Specifications

• Amperage: 2.5 A
• Voltage Rating: 600 VAC/300 VDC
• Class: RK1
• Element: Dual
• Body Type: Cartridge
• Response Time: 8 s at 500%
• Material: Melamine
• Connection Type: Ferrule end x ferrule end
