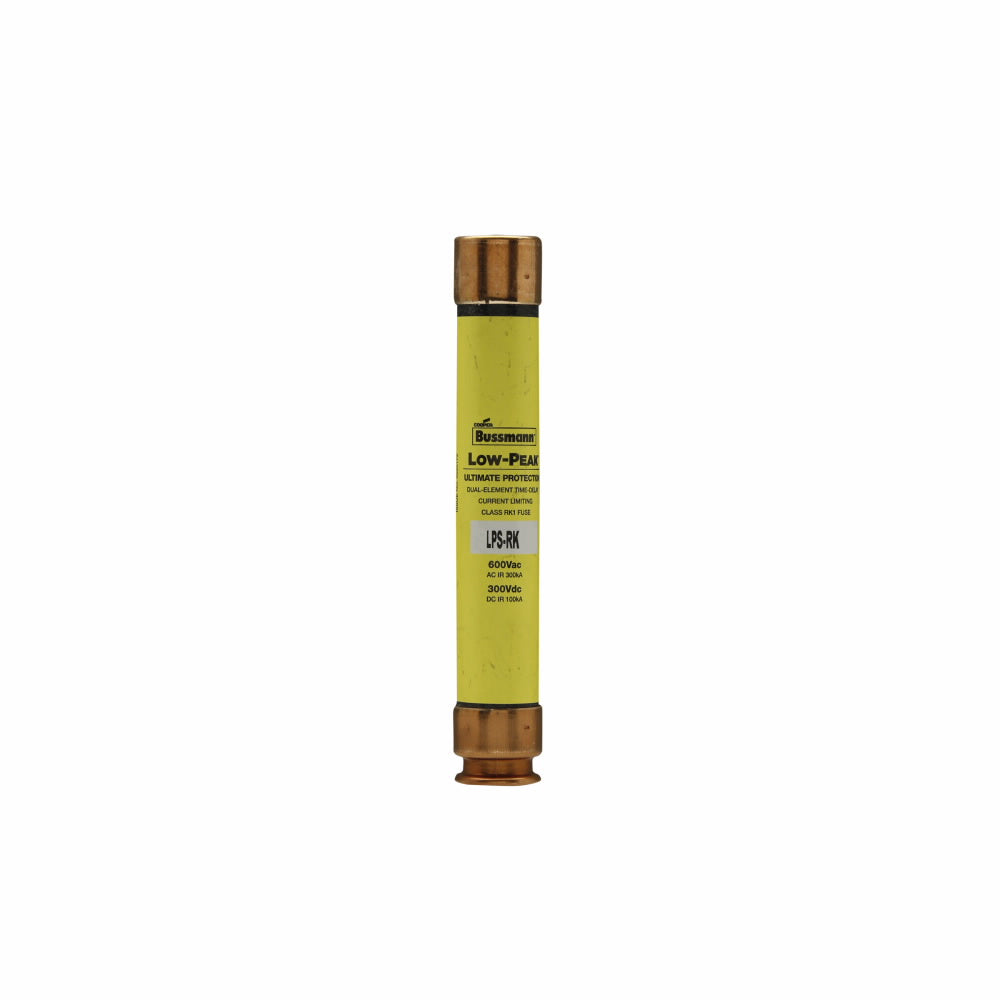

Eaton LPS-RK-1SP BUS FUSE 600V DUAL ELEMENT

Product Description

The Eaton LPS-RK-1SP is a dual element current limiting time delay fuse designed for use in various electrical applications. This fuse operates at a voltage rating of six hundred volts AC and three hundred volts DC with an amperage rating of one amp. It is built for reliable performance in industrial settings and offers significant protection against short circuits.

• Class RK1 rating for effective circuit protection
• Ferrule end terminal for easy installation in holders
• Time delay of eight seconds at five hundred percent rated load

Product Highlights

This fuse is suitable for large distribution switchboards and motor control centers, providing current limitation and time delay protection to enhance circuit reliability.

Product Information

Standard Information

• Manufacturer: Eaton
• UPC: 05171254808

Technical Specifications

• Amperage Rating: 1 A
• Voltage Rating: 600 VAC / 300 VDC
• Interrupt Rating: 300 kAIC / 100 kAIC
• Body Size: 0.81 in Dia x 5 in L
• Body Type: Cartridge
• Element: Dual
• Response Time: 8 s at 500%
• Material: Melamine
• Standards/Approvals: CE Certified, CSA, UL
