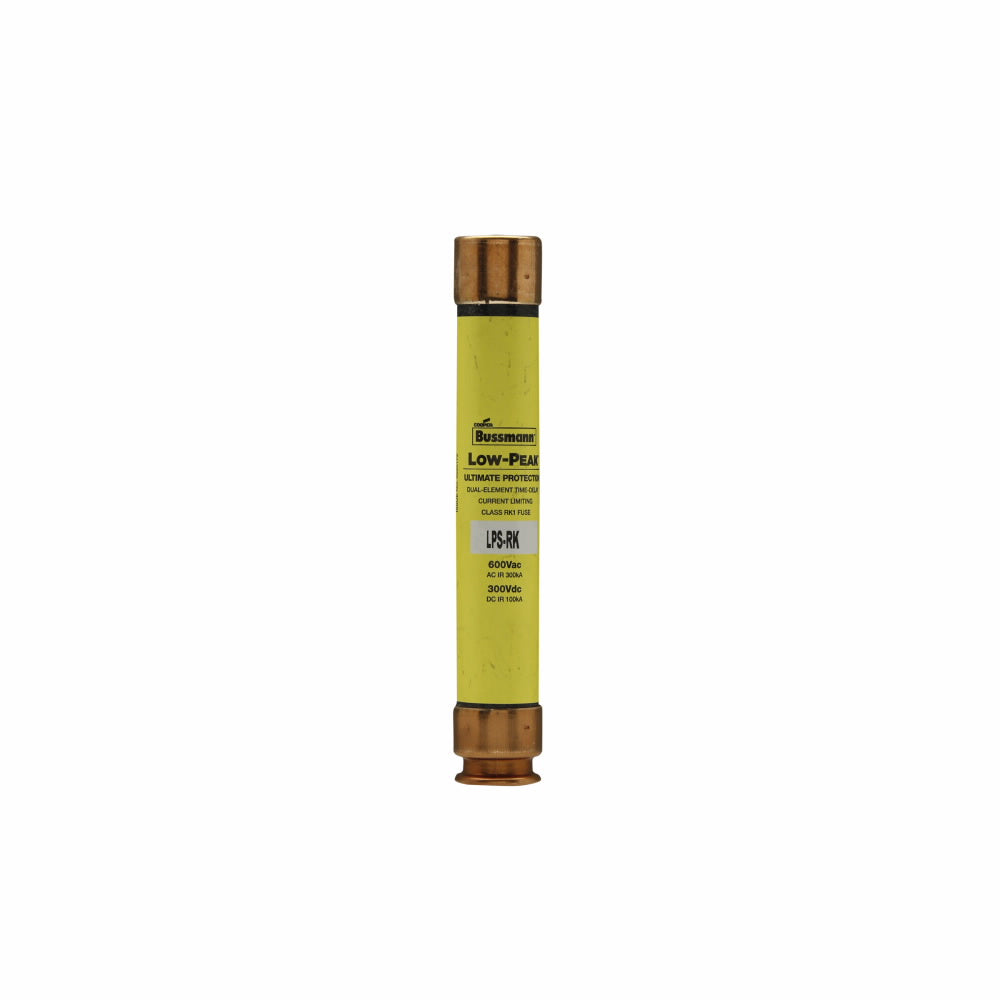

Eaton LPS-RK-15SP BUS 600V DUAL ELEMENT ATSDE15R

Product Description

The Eaton LPS-RK-15SP is a dual-element, current limiting time delay fuse rated at 15 amps. It is designed to operate in voltages up to 600 VAC and 300 VDC. This fuse features a cylindrical body type made of melamine, ensuring reliability in various applications. The LPS-RK series is recognized for its exceptional performance in preventing nuisance blowing, efficiently managing inrush currents, and providing protection against overloads.

• 15 A rating; suitable for high-inrush applications.
• Time delay of eight seconds at five hundred percent overload.
• UL Class RK1, ideal for industrial facilities and machinery.

Product Highlights

The LPS-RK-15SP ensures minimal downtime by allowing transient inrush currents without affecting operational integrity.

Product Information

Standard Information

• Manufacturer: Eaton
• UPC: 05171254832

Technical Specifications

• Voltage Rating: 600 VAC / 300 VDC
• Interrupting Rating: 300 kA (AC) / 100 kA (DC)
• Body Size: 0.81 inches Diameter x 5 inches Length
• Type: Current Limiting Time Delay
• Element: Dual
• Response Time: 8 seconds at 500%
• Mounting Type: Holder
• Standards/Approvals: CE Certified, CSA C22.2, UL File No. E4273
