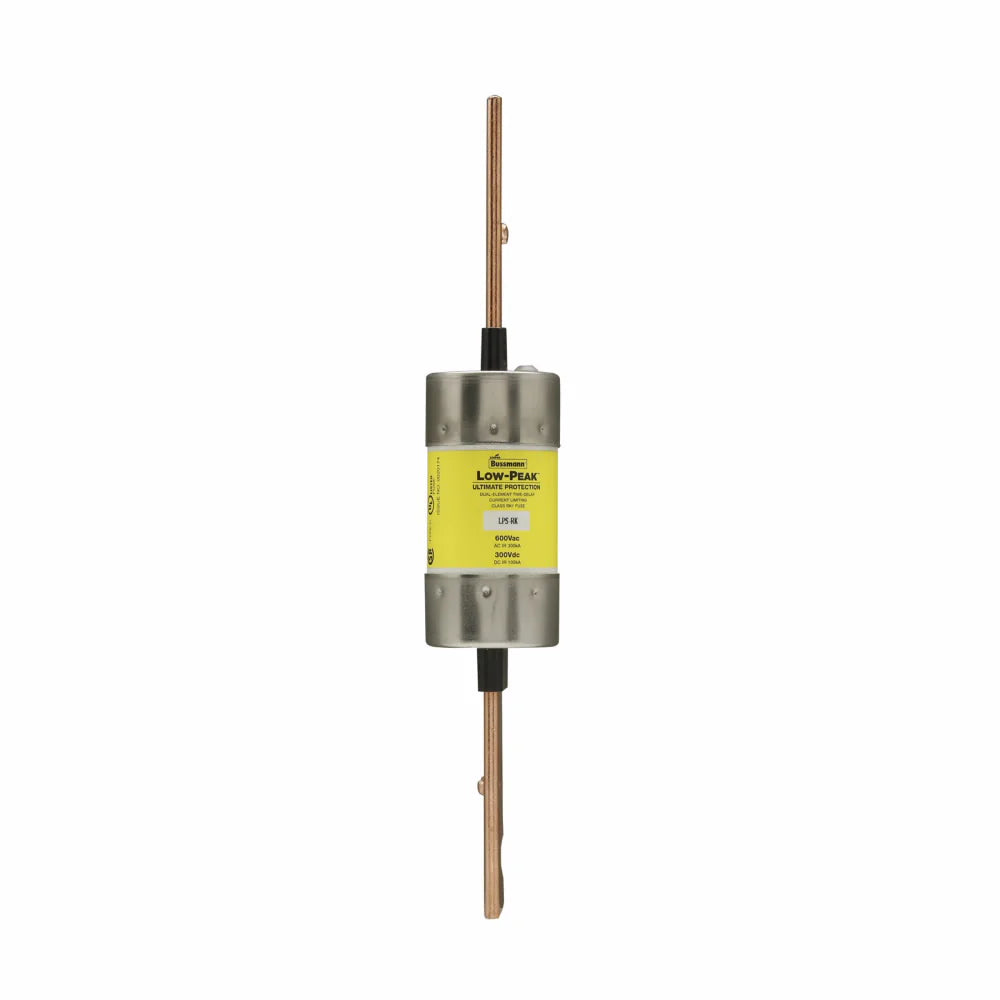

Eaton LPS-RK-125SP BUS 600V Dual Elem A6D125R

Product Description

The Eaton LPS-RK-125SP is a Bussmann Low-Peak Fuse designed for current limiting time delay applications. This fuse operates at 125 A and is rated for 600 VAC and 300 VDC. It features a dual-element design and provides a significant level of protection against short circuits while minimizing arc flash hazards. The fuse has a response time of ten seconds at five hundred percent load, ensuring that it reacts effectively under fault conditions.

• Current Limiting Time Delay for enhanced application safety
• Rated for 600 VAC and 300 VDC
• Dual element construction for better performance

Product Highlights

This fuse is suitable for use in industrial facilities, safety and security systems, and various circuit applications. Its design allows easy selective coordination with other Low-Peak fuses.

Product Information

Standard Information

• Product Type: Current Limiting Time Delay
• Manufacturer: Eaton

Technical Specifications

• Amperage Rating: 125 A
• Voltage Rating: 600 VAC/300 VDC
• Body Size: 1.61 in Dia x 9.63 in L
• Class: RK1
• Element: Dual
• Response Time: 10 s at 500%
• Rejection Type: Rejection
• Material: Melamine
• Standard Approvals: CE Certified, CSA C22.2, UL Certified
