Eaton LPS-RK-110SP Bus Fuse 600V Dual Element A6D110R

Product Description

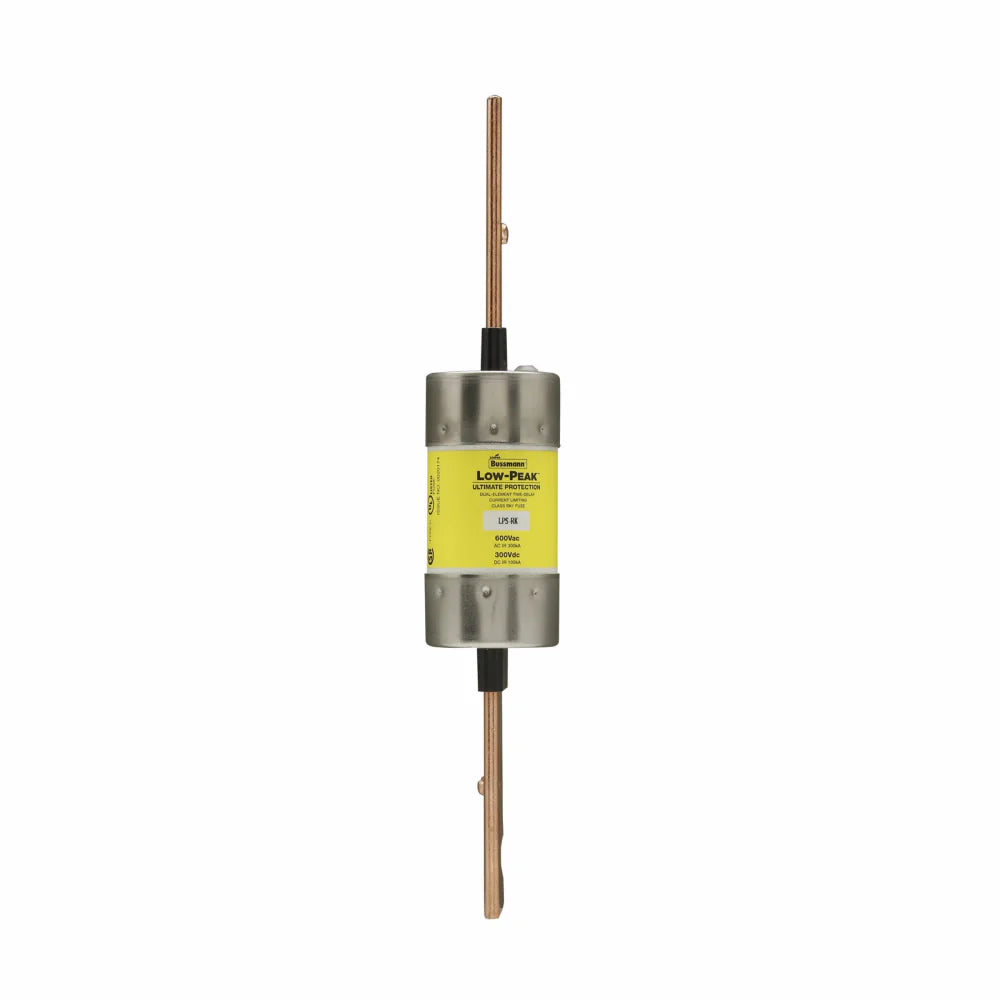

The Eaton LPS-RK-110SP is a current limiting low voltage time delay fuse. It is designed to provide reliable protection for various electrical applications. This fuse can handle up to one hundred ten amperes and is rated for six hundred volts alternating current and three hundred volts direct current. The dual element fuse provides a time delay, allowing for the operation of high inrush loads.

• Non-indicating design for simplicity.
• Rated for multiple applications including industrial facilities and motor control centers.
• Meets UL Class RK1 standards.

Product Highlights

This product effectively reduces downtime and protects against overloads while ensuring safety in various electrical systems.

Product Information

Standard Information

• Manufacturer: Eaton
• Manufacturer Part Number: LPS-RK-110SP

Technical Specifications

• Amperage Rating: 110 A
• Voltage Rating: 600 VAC/300 VDC
• Interrupt Rating: 300/100 kAIC
• Body Size: 1.61 in Dia x 9.63 in L
• Element Type: Dual
• Body Type: Cartridge
• Material: Melamine
• Standards/Approvals: CE Certified | CSA C22.2 | UL File No.E4273
• Response Time: 10 s at 500%
• Terminal Type: Blade End
