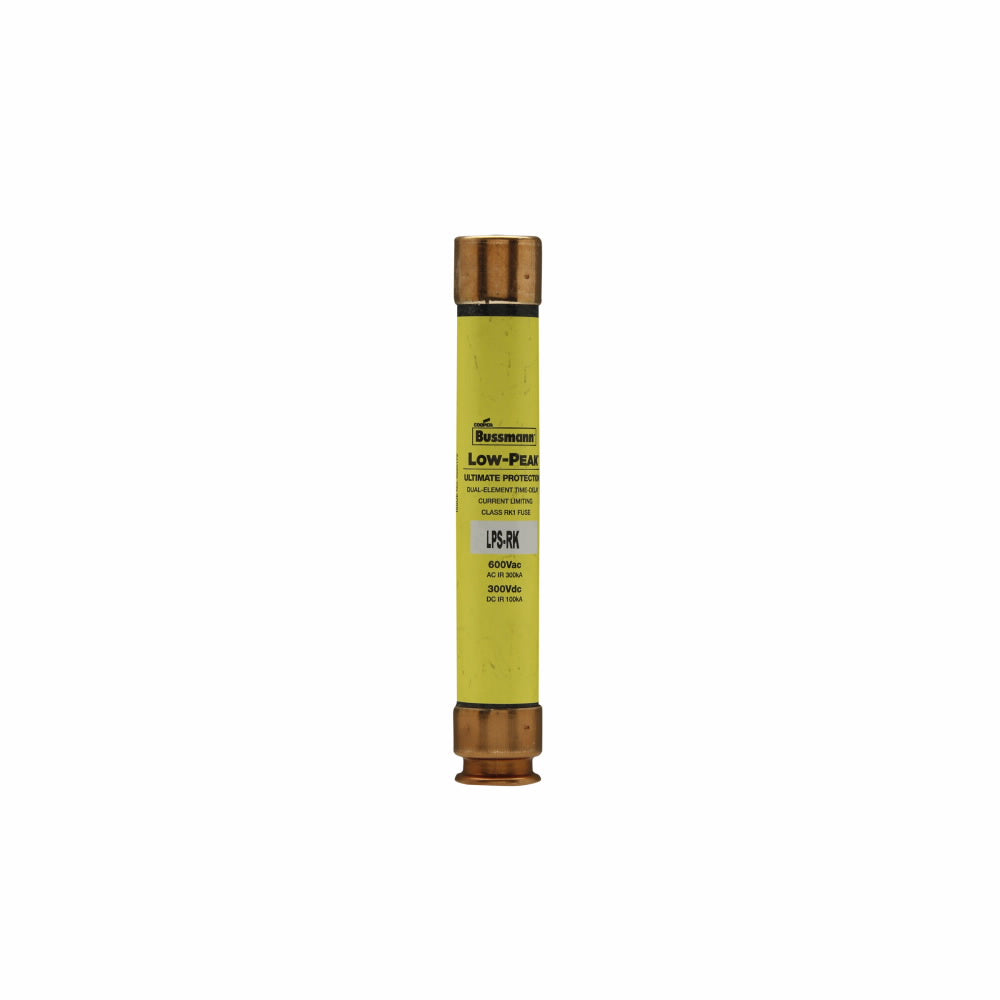

Eaton LPS-RK-1-8/10SP Bussmann Series Low Peak Dual Element Fuse

Product Description

The Eaton Bussmann Series LPS-RK-1-8/10SP is a low peak dual element fuse. This fuse is designed for reliable protection in various electrical systems. Notable for its time delay and current limiting capabilities, it is suitable for applications in large distribution switchboards, power panelboards, motor control centers, and machinery disconnect switches.

• Rated Amperage: 1.8 A
• Voltage Rating: 600 VAC/300 VDC
• Class: RK-1

Product Highlights

Designed to protect devices against short circuit currents and thermal effects. The fuse features ferrule terminal connection and a cartridge body type.

Product Information

Standard Information

• Brand: Eaton
• Manufacturer: Bussmann Mfg.

Technical Specifications

• Amperage Rating: 1.8 A
• Body Size: 0.81 in diameter x 5 in length
• Type: Current Limiting
• Application: Large Distribution Switchboards, Power Panelboards, Motor Control Centers
• Response Time: 8 seconds at 500%
• Material: Melamine
• Interrupt Rating: 100 kAIC at 600 V, 300 kAIC at 300 VDC
• Standard Compliance: UL, CE, CSA
