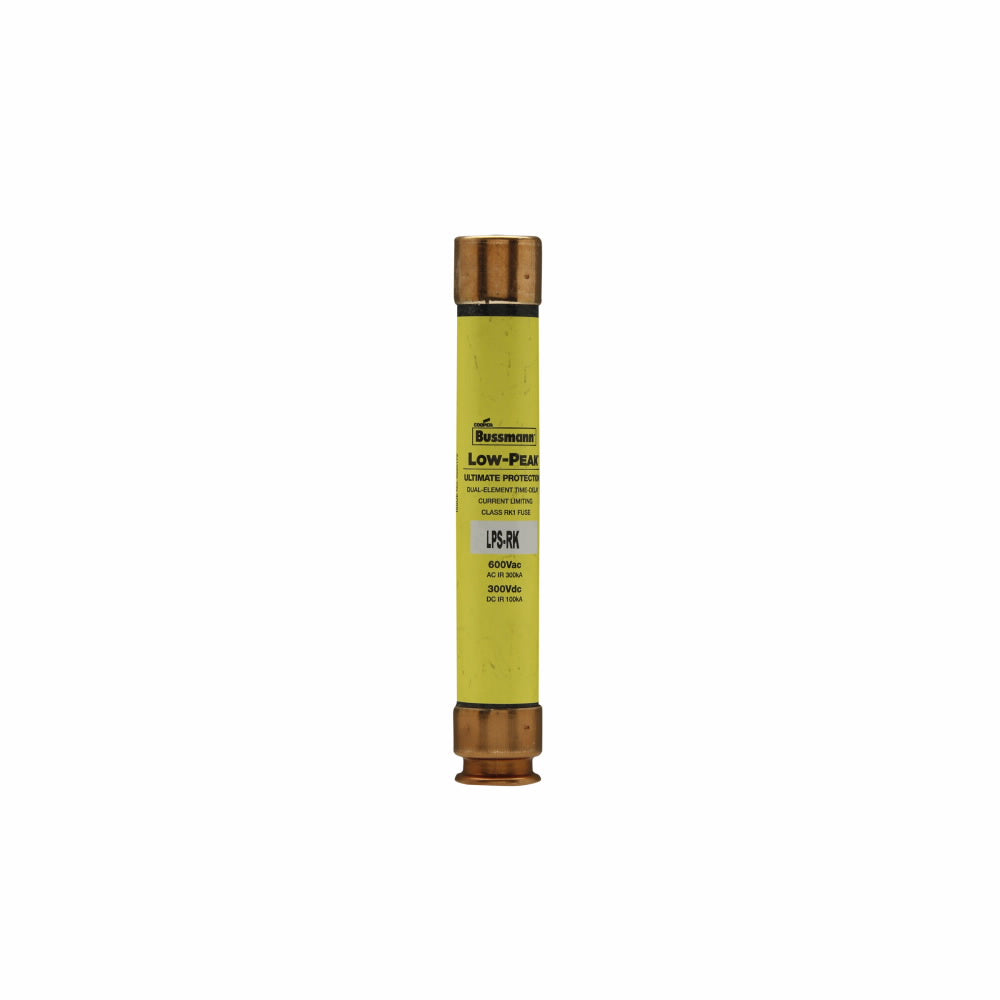

Eaton LPS-RK-1/10SP Class RK1 Time-Delay Fuse 0.1 A 600 Vac/300 Vdc (Pack 10)

Product Description

Eaton LPS-RK-1/10SP is a Bussmann series Class RK1 time-delay fuse. It is a dual-element, current-limiting, non-indicating fuse rated 0.1 A for 600 Vac and 300 Vdc with interrupting ratings of 300 kA at 600 Vac and 100 kA at 300 Vdc. The fuse provides inrush tolerance via an 8 second time delay at 500% rated load and is sized approximately 5 in long with a 0.81 in cross section.

• Dual-element, time-delay (8 s at 500% rated load) and current-limiting design
• Rated 0.1 A for 600 Vac / 300 Vdc with 300 kA interrupting rating at 600 Vac and 100 kA at 300 Vdc
• Form factor ~5 in length and 0.81 in diameter; approvals include UL, CSA C22.2, CE

Product Highlights

Class RK1 dual-element time-delay fuse, 0.1 A, 600 Vac/300 Vdc, 300 kAIC interrupting rating

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: LPS-RK-1/10SP
• Country of Origin: Mexico

Technical Specifications

• Brand: EATON
• MPN: LPS-RK-1/10SP
• Series: LPS-RK
• Class: RK1
• Fuse Type: Time-delay, dual-element, current-limiting
• Ampere Rating: 0.1 A (1/10 Amp)
• Voltage Rating: 600 Vac / 300 Vdc
• Interrupting Rating: 300 kA at 600 Vac; 100 kA at 300 Vdc
• Indication: Non-indicating
• Time Delay: 8 second time delay at 500% rated load
• Element: Dual element
• Length: 5 in
• Diameter: 0.81 in
• Approvals/Certifications: UL; CSA C22.2; CE
• Weight: 0.1600 lb
• Country of Origin: Mexico
• Applications: Large distribution switchboards, power panelboards, motor control centers, machinery disconnects, feeder and branch circuits, motors, transformers, solenoids, industrial safety and security systems
• Packaging/Pack Quantity: 10
