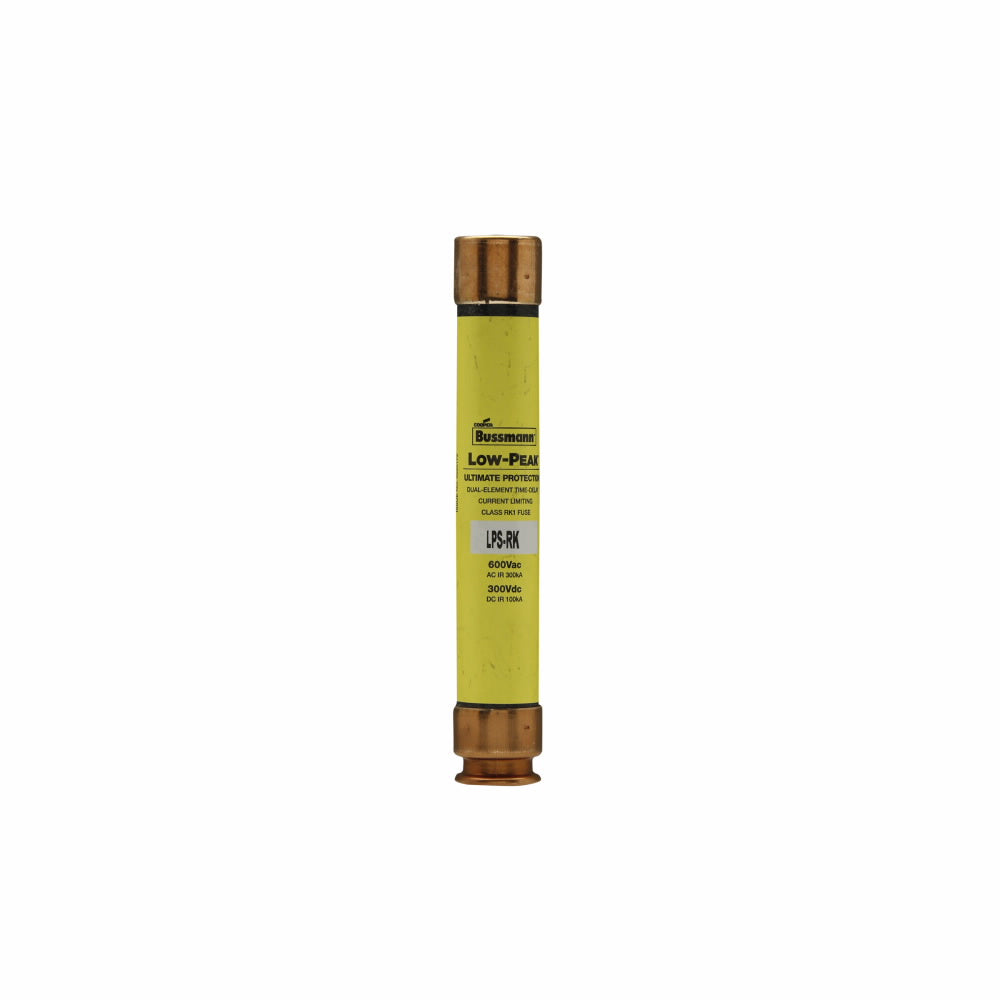

Eaton LPS-RK-1-1/4SP BUS 600V RK1 TD FUSE

Product Description

The Eaton LPS-RK-1-1/4SP is a Bussmann Low-Peak Time Delay Fuse designed to limit current effectively. It operates at 1.25 A and supports voltage ratings of 600 VAC and 300 VDC. This fuse has a 100/300 kA interrupt rating and falls under the RK1 class. Its design includes a cartridge body for reliable performance.

• Current limiting capabilities to protect downstream components.
• Fast short circuit protection and dual element, time-delay performance.
• Hardened melamine material enhances durability.

Product Highlights

This fuse is ideal for various applications, including large distribution switchboards and motor control centers, ensuring safety and efficiency.

Product Information

Standard Information

• UPC: 05171254810
• Manufacturer: Eaton

Technical Specifications

• Amperage Rating: 1.25 A
• Voltage Rating: 600 VAC / 300 VDC
• Response Time: 8 s at 500%
• Body Size: 0.81 in Dia x 5 in L
• Body Type: Cartridge
• Element: Dual
• Material: Melamine
• Mounting Type: Holder
• Standards/Approvals: CE Certified, CSA, UL Listed
