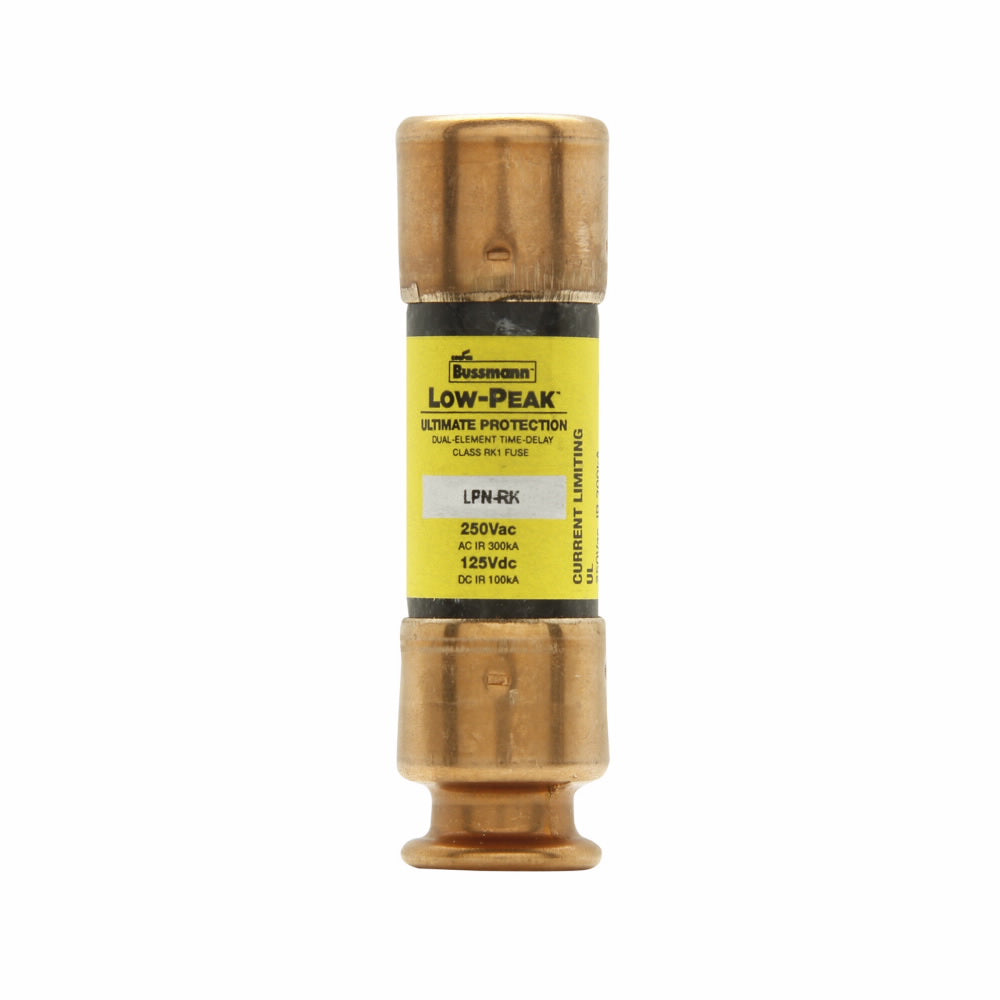

Eaton LPN-RK-6SP BUS 250V Dual Element Fuse (1)

Product Description

The Eaton LPN-RK-6SP is a Bussmann Low-Peak fuse designed for current limiting and time delay applications. This fuse operates at six amperes and is suitable for voltages of two hundred fifty volts alternating current and one hundred twenty-five volts direct current. Key applications include use in industrial facilities, safety and security systems, power panelboards, and motor control centers. It features a cartridge body type and a dual element design made of melamine for effective performance.

• Amperage rating of six amperes.
• Rated for 250 VAC and 125 VDC.
• Fast short circuit protection and time delay performance.

Product Highlights

The Eaton LPN-RK-6SP fuse provides critical protection against short circuits while minimizing damage to electrical components. It is designed to streamline inventory with its efficient performance.

Product Information

Standard Information

• Manufacturer: Eaton
• UPC: 05171253825

Technical Specifications

• Amperage Rating: 6 A
• Voltage Rating: 250 VAC / 125 VDC
• Type: Current limiting time delay
• Body Size: 0.56 inches Dia x 2 inches L
• Body Type: Cartridge
• Element: Dual
• Response Time: 8 seconds at 500%
• Standards/Approvals: CE Certified, CSA C22.2 File No.53787/248.12, UL File No.E4273 Guide JDDZ
