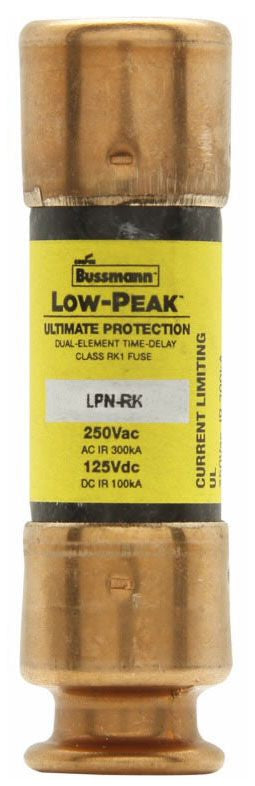

Eaton LPN-RK-5SP BUS 250V Dual Element Fuse

Product Description

The Eaton LPN-RK-5SP is a Bussmann Low-Peak fuse providing reliable protection for electrical systems. This current limiting time delay fuse is rated at five amps and is suitable for voltages up to 250 VAC and 125 VDC. With a dual element design, it handles inrush loads efficiently while maintaining circuit integrity.

• Current Limiting Design
• Time Delay of eight seconds at 500% rated current
• Compatible with Class RK1 applications

Product Highlights

This fuse is an essential component in industrial settings, ensuring equipment safety and longevity.

Product Information

Standard Information

• Manufacturer: Eaton
• Product Name: LPNRK5SP BUS 250V Dual Element Fuse

Technical Specifications

• Amperage Rating: 5 A
• Voltage Rating: 250 VAC/125 VDC
• Interrupting Rating: 300 kA (AC), 100 kA (DC)
• Body Size: 0.56 inches diameter x 2 inches length
• Response Time: 8 s at 500%
• Approval: UL, CSA C22.2, CE
• Material: Melamine
• Mounting Type: Holder
