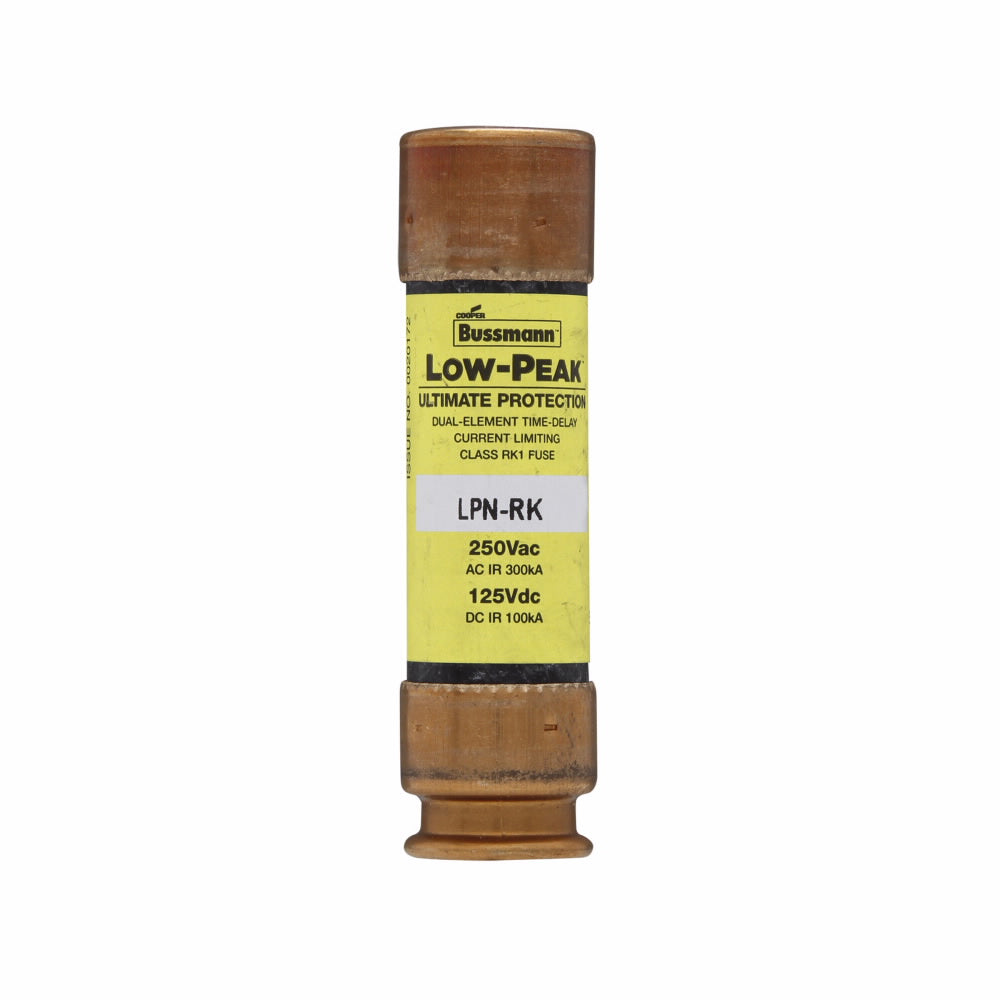

Eaton LPN-RK-35SP BUS 250V Dual Elem Fuse (1)

Product Description

Bussmann Low-Peak LPN-RK-35SP Current Limiting Time Delay Fuse operates at thirty-five amperes and supports two hundred fifty volts AC/DC. The fuse features a dual element design, ensuring reliable performance. This fuse is crucial for applications requiring robust protection against overloads and short circuits.

• Class RK1 rating for enhanced protection.
• Designed with a ferrule terminal and holder mount.
• Ten second response time at five hundred percent of rated current.

Product Highlights

This fuse is suitable for various applications including motor control centers, distribution switchboards, and safety systems.

Product Information

Standard Information

• Manufacturer: Eaton
• UPC: 05171253837

Technical Specifications

• Amperage Rating: 35 A
• Voltage Rating: 250 VAC/VDC
• Body Size: 0.81 in Dia x 3 in L
• Body Type: Cartridge
• Class: RK1
• Element: Dual
• Indicating: Non-Indicating
• Material: Melamine
• Mounting Type: Holder
• Response Time: 10 s at 500%
• Rejection: Rejection
• Standards/Approvals: CE Certified, CSA 1422-02, CSA C22.2, UL File No. E4273
